Lenze E82EV752K4C - Fig. 6.5-2 Mains Connection 230;240 V 3; Power Connections for 230 V Mains Voltage

Basic units in the power range 3 ... 11 kW
Power connections for 230 V mains voltage
6
Basic unit wiring
6.5
6.5.2
L
6.5-4
EDS82EV903-1.0-11/2002
6.5.2 Power connections for 230 V mains voltage
(
((
( Stop!
l Controller type E82EVxxxK 2 C must only be connected to a
mains voltage of 1/N/PE AC 180 ... 264 V or 3/PE AC 100 ...
264 V. Higher mains voltages will destroy the controller!
l The discharge current to PE is > 3.5 mA. EN 50178 requires a
fixed installation. Double PE connection required.
X1.1
3 PE AC 230/240 V
45Hz -0%...65Hz +0% 100 V -0%...264 V +0%
X1.1
PE L1
L3
+UG -UG
L2
E82EVXXXK C2
L1
L2
L3
N
PE
0,7...0,8 Nm
6.2...7.1 lb-in
6 mm / 0.24 in
8200vec065

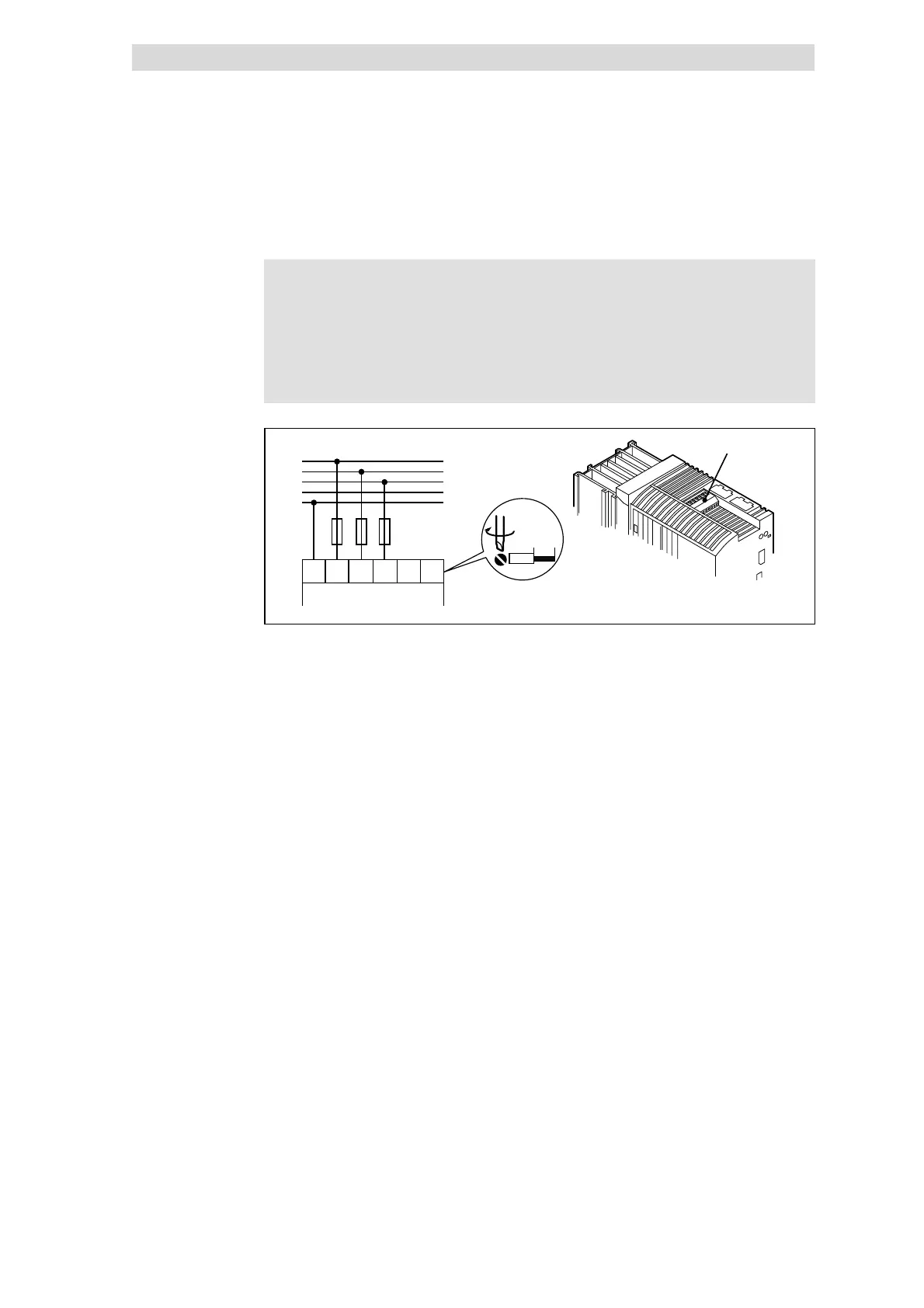

Fig. 6.5-2 Mains connection 230/240 V 3 ... 7.5 kW
E82EV752K 2C Operation only with mains choke
X1.1/+UG,
X1.1/-UG
DC supply (DC-bus operation - see Operating Instructions)
8200 vector 3 ... 7.5 kW
