10.6 Limit value setting
10.6.1 Speed range
The speed setting range required for the application can be set via the selection
of output frequencies:
l The minimum output frequency (C0010) corresponds to the speed at 0 %
speed setpoint selection.
l The maximum output frequency (C0011) corresponds to the speed at
100 % speed setpoint selection.
l The lower frequency limitation (C0239) sets the speed. Independently of the
setpoint, the value cannot fall below this speed (e.g. for fans, dancer
position control, or dry running protection for pumps).
0%
[f]
100 %
C0011
C0010
8200vec526

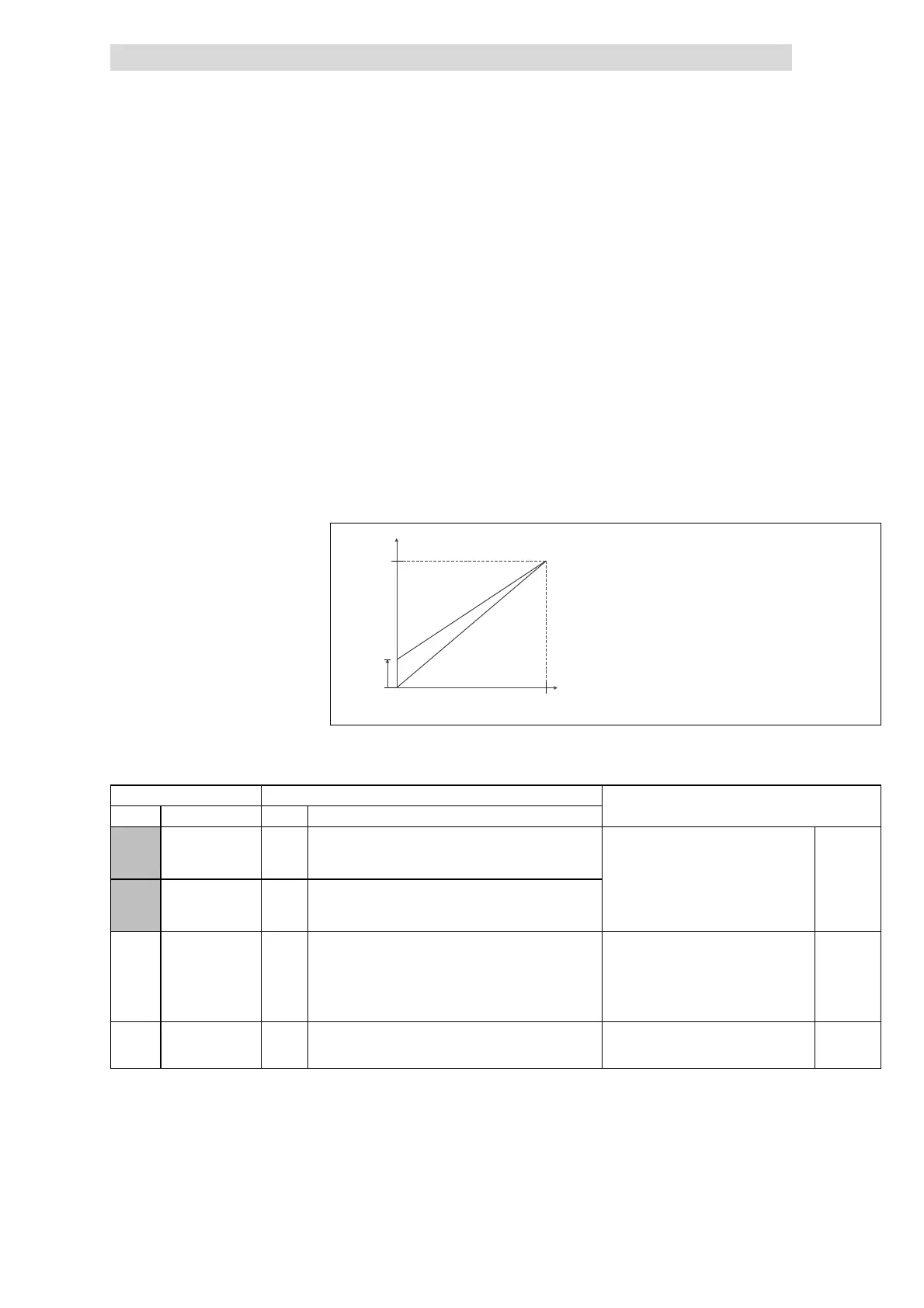

Fig. 10.6-1 Relation between setpoint and minimum and maximum output frequency
Codes for parameter setting
Code Possible settings IMPORTANT
No. Name Lenze Selection
C0010
uSEr
Minimum output
frequency
0.00 0.00
à 14.5 Hz
{0.02 Hz} 650.00
• C0010 is not ef f e ctive with bipolar
setpoint selection (-10 V ... + 10 V)
• C0010 only defines the analog input 1
à
S
p
e
e
d
s
e
t
t
i
n
g
r
a
n
g
e
1
:
6
f
o
r
L
e
n
z
e
^ 10.6-1
C0011
uSEr
Maximum output
frequency
50.00 7.50
à 87 Hz
{0.02 Hz} 650.00
à Speed setting range 1 : 6 for Lenze
geared motors: Setting absolutely
required f or operation with Lenze
geared motors.
C0239 Lowest f requency
limit
-650.00 -650.00 {0.02 Hz} 650.00 • The value does not fall below limit
independently of the setpoint.
• If t he minimum frequency limit ation is
active, the automatic DC-injection brake
(auto DCB) must be deacti vate d (C0019
= 0 or C0106 = 0).
^ 10.6-1
C0236
(A)
Acceleration time -
minimum frequency
limitation
0.00 0.00 {0.02 s} 1300.00 Ref. t o C0011
Minimum frequency limitat io n = C0239
^ 10.6-1
