Lenze E82EV752K4C - Fig. 5.5-4 Dimensions for Thermally Separated Mounting 15; Thermally Separated Mounting (Push-Through Technique)

Basic units in the power range 15 ... 30 kW
Thermally separated mounting (push-through technique)
5
Basic device installation
5.5
5.5.4
L
5.5-4
EDS82EV903-1.0-11/2002
5.5.4 Thermally separated mounting (push-through technique)
For mounting in push-through technique use the controller type E82 D V... . The
delivery package includes all parts and components required for mounting.
h
c1
c2
c3
h
d1
d2
d3
d2
d
b
a1
a
g
b1
e1
e
8200vec304

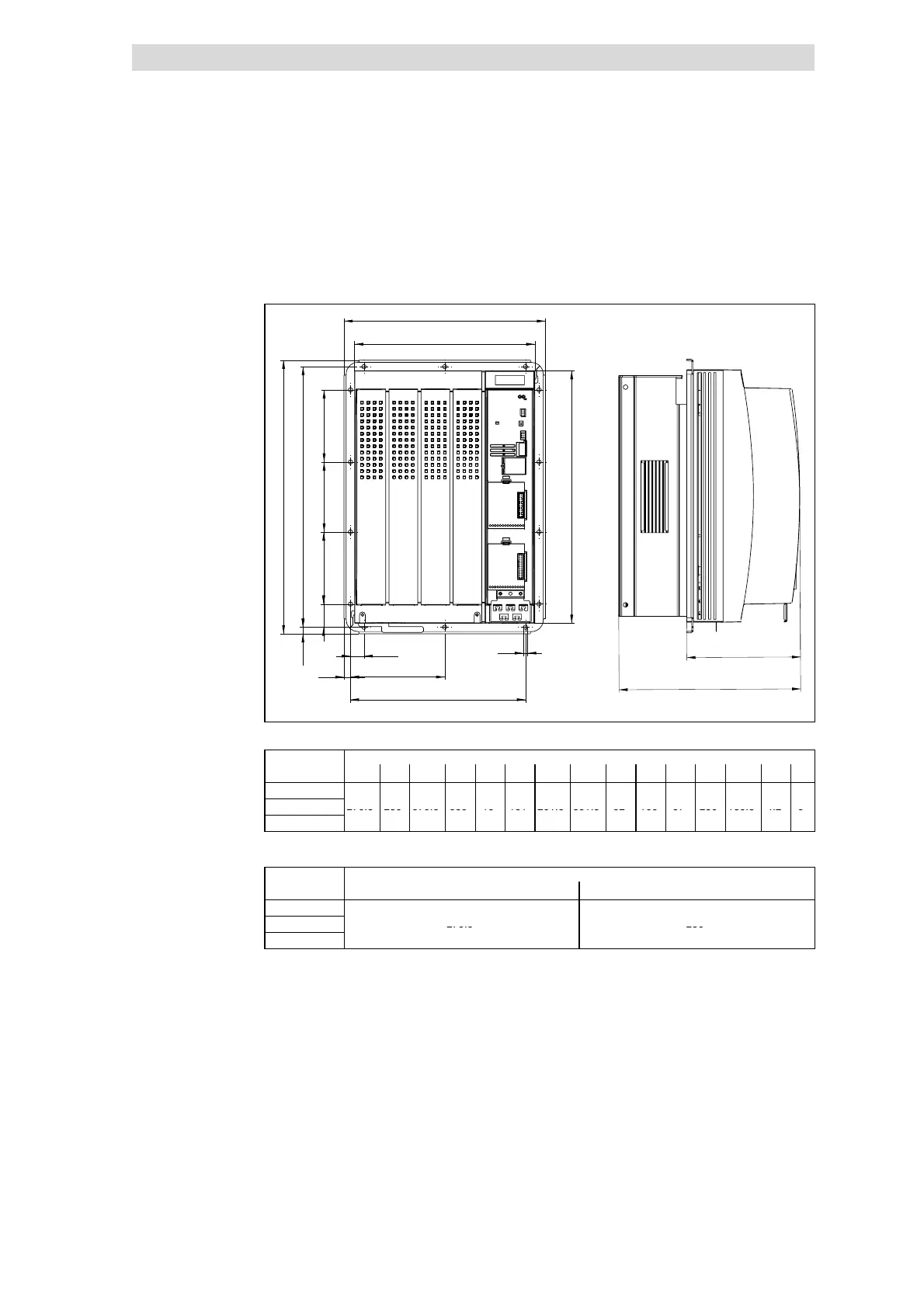

Fig. 5.5-4 Dimensions for thermally separated mounting 15 ... 30 kW
Dimensions [mm]
8200 vector a a1 b b1 c1 c2 c3 d d1 d2 d3 e e1 g h
E82DV153K4B
E82DV223K4B 279.5 250 379.5 350 19 131 261.5 361.5 32 100 97 250 159.5 4.2 9
E82DV303K4B
2
7
9
.
5
2
5
0
3
7
9
.
5
3
5
0
1
9
1
3
1
2
6
1
.
5
3
6
1
.
5
3
2
1
0
0
9
7
2
5
0
1
5
9
.
5
4
.
2
9
Mounting cutout in the control cabinet
Dimensions [mm]
8200 vector a a1
E82DV153K4B
E82DV223K4B 279.5 250
E82DV303K4B
