Lenze E82EV752K4C - 5.6 Basic units in the power range 45... 55 kW

Basic units in the power range 45 ... 55 kW
Mounting with fixing brackets and mains choke (standard)
5
Basic device installation
5.6
5.6.1
L
5.6-1
EDS82EV903-1.0-11/2002
5.6 Basic units in the power range 45 ... 55 kW
5.6.1 Mounting with fixing brackets and mains choke (standard)
8200vec296

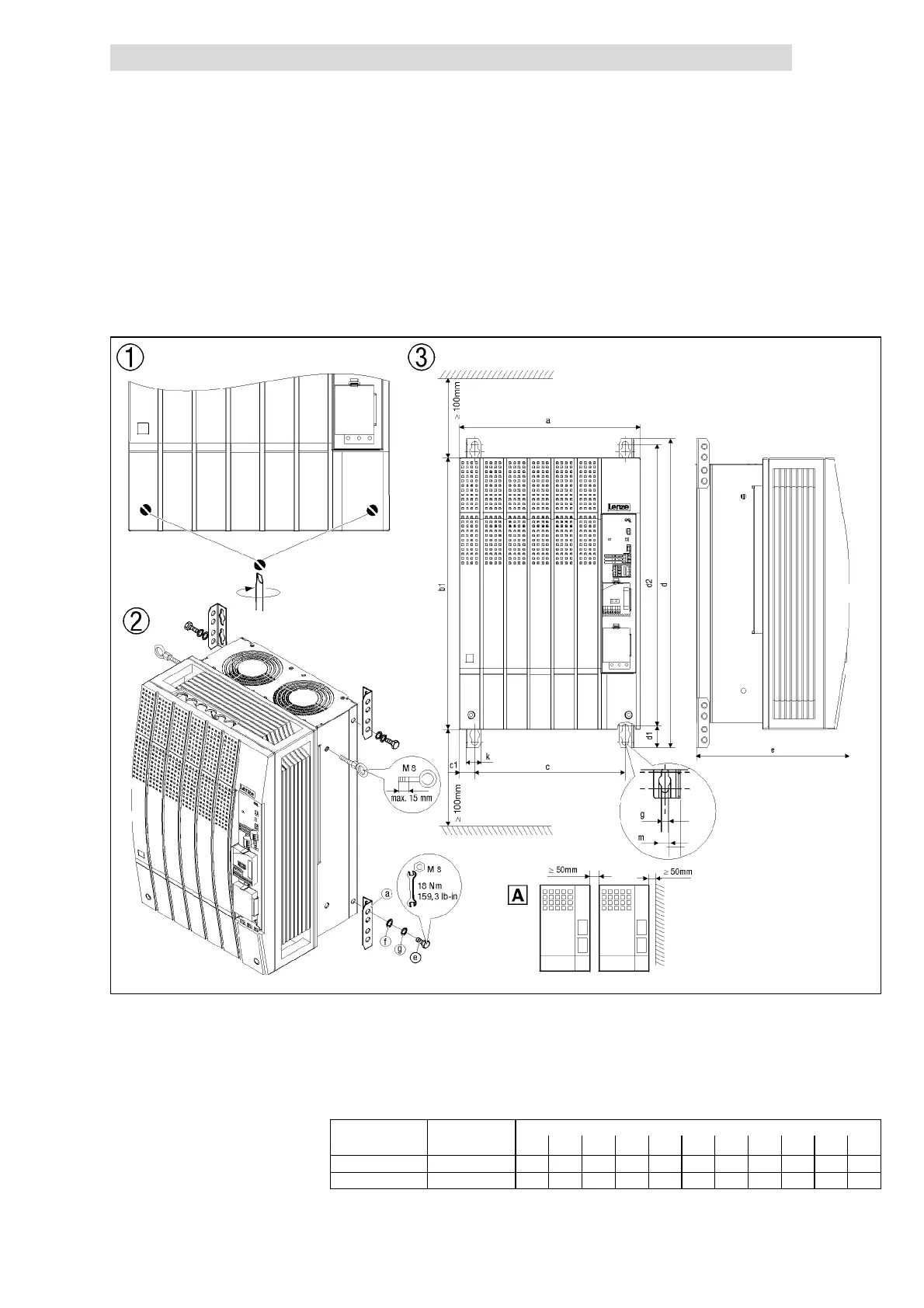

Fig. 5.6-1 Standard mounting with mains choke 45 ... 55 kW
 Loosebothscrewsinordertoremovethehousingcover.
 Mounting of the fixing brackets
 Dimensions
0
Mount the drive controllers side by side leaving a certain space for dismounting
the lifting-eye bolt.
Dimensions [mm]
8200 vector Mains choke a b1 c c1 d d1 d2 e g k m
E82EV453K4B2x1 ELN3-0038H085 340 510 284 28 580 38 532 285 11 28 18
E82EV553K4B2x1 ELN3-0027H105 340 591 284 28 672 38 624 285 11 28 18
