Lenze E82EV752K4C - Fig. 6.4-3 Mains Connection 400;500 V 0.55; Power Connections for 400 V Mains Voltage

Basic units in the power range 0.25 ... 2.2 kW
Power connections for 400 V mains voltage
6
Basic unit wiring
6.4
6.4.3
L
6.4-5
EDS82EV903-1.0-11/2002
6.4.3 Power connections for 400 V mains voltage
(
((
( Stop!
l Controller type E82EVxxxK 4 C must only be connected to a
mains voltage of 3/PE AC 320 ... 500 V. Higher mains voltages
will destroy the controller!
l The discharge current to PE is > 3.5 mA. EN 50178 requires a
fixed installation. Double PE connection required.
E82EV551K4B
E82EV751K4B
E82EV152K4B
E82EV222K4B
X1.1
X1.1
L2/N
PE
L1 L2 L3
3/PE AC 400 V
+UG -UG
L1
L3
PE
8200vec011

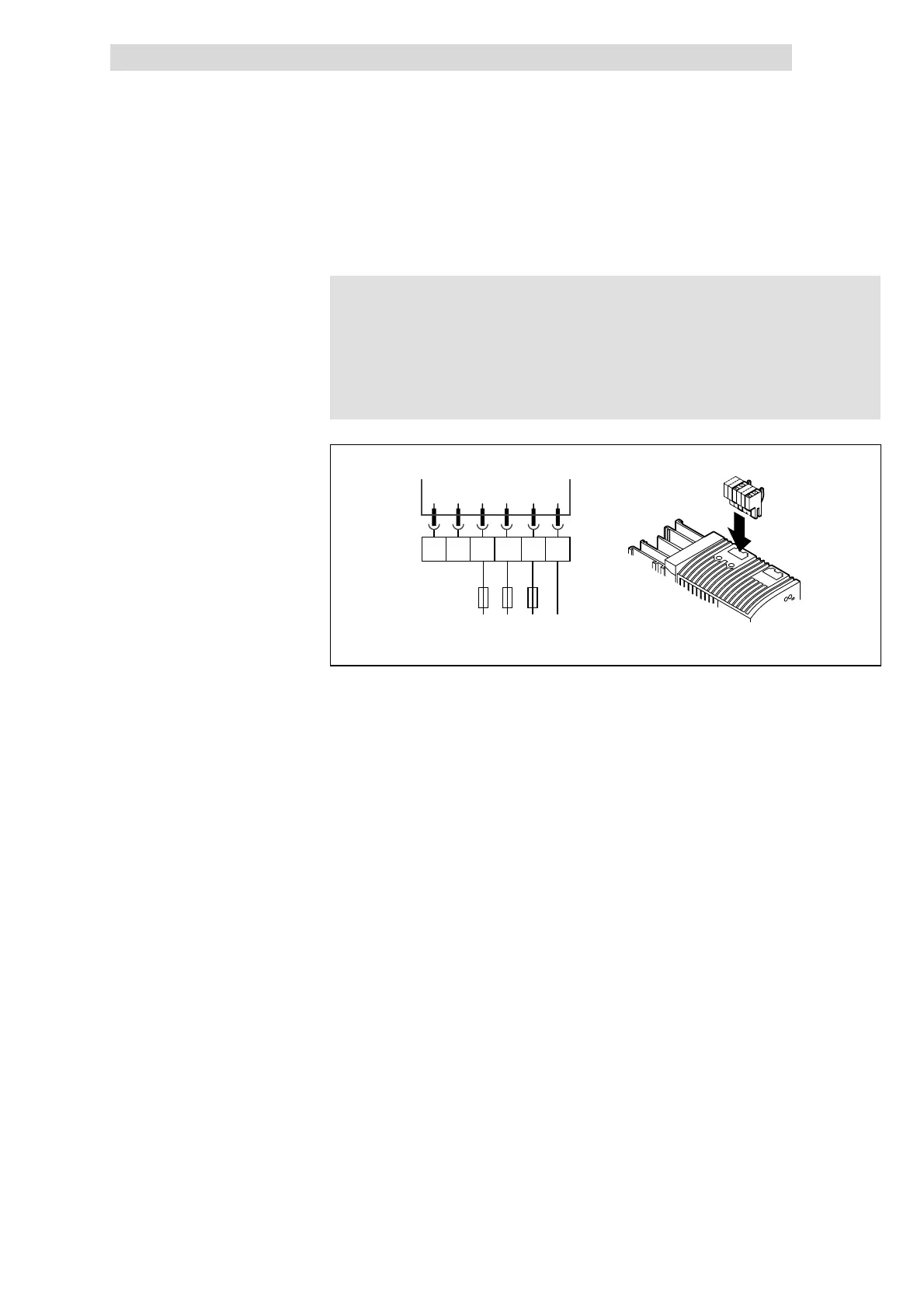

Fig. 6.4-3 Mains connection 400/500 V 0.55 ... 2.2 kW
X1.1/+UG,
X1.1/-UG
DC supply (DC-bus operation - see Operating Instructions)
Mains connection 400/500 V
8200 vector 0.55 ... 2.2 kW
