Basic units in the power range of 15 ... 90 kW
Terminal assignment - Standard I/O PT E82ZAFS010
7
Extensions for automation
7.4
7.4.3
L
7.4-8
EDS82EV903-1.0-11/2002
7.4.3 Terminal assignment - Standard I/O PT E82ZAFS010
l The device is wired using an attachable terminal block for larger cable
cross-sections. The function module stands out approx. 13 mm because of
the attachable terminal block.
l The standard I/O PT is wired like the standard I/O.
l Please note: The standard I/O PT has got one terminal 7 (GND1) only.

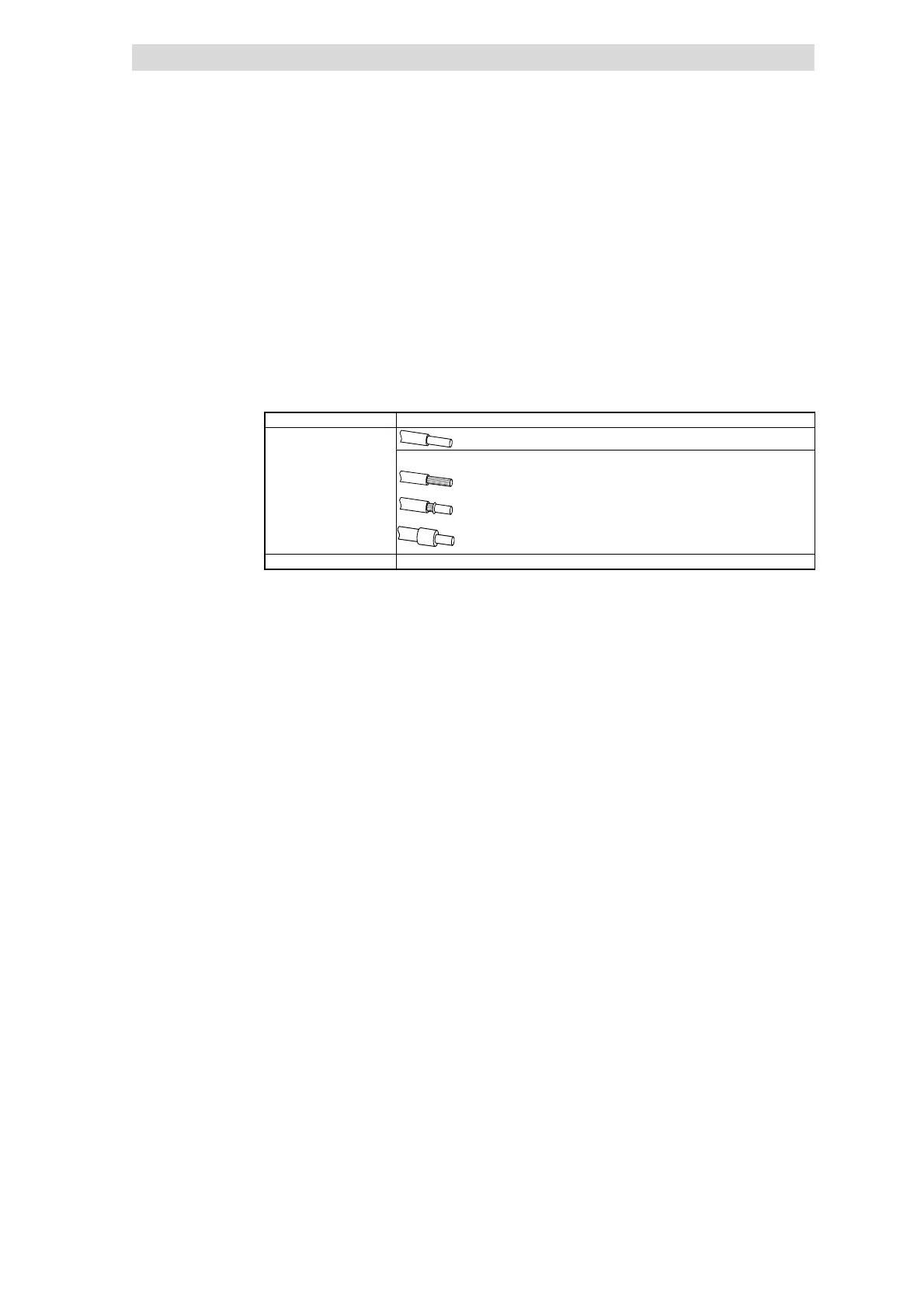

Electrical connection Plug connector with spring connection
Possible connections
rigid: 1.5 mm
2
(AWG 16)
flexible:
without wire crimp cap
1.5 mm
2
(AWG 16)
with wire crimp cap,without plastic sleeve
1.5 mm
2
(AWG 16)
with wire crimp cap, with plastic sleeve
0.5 mm
2
(AWG 20)
Bare end 9mm
Data of the spring-clamp
terminals
