Lenze L-force E84A Series - Page 137

Mechanical installation
Standard devices in t he power range 3 ... 22 kW
Mounting i n ”cold plate” technique
5

137
EDS84ASC552 EN 10.0
TopLine
8400GG107a

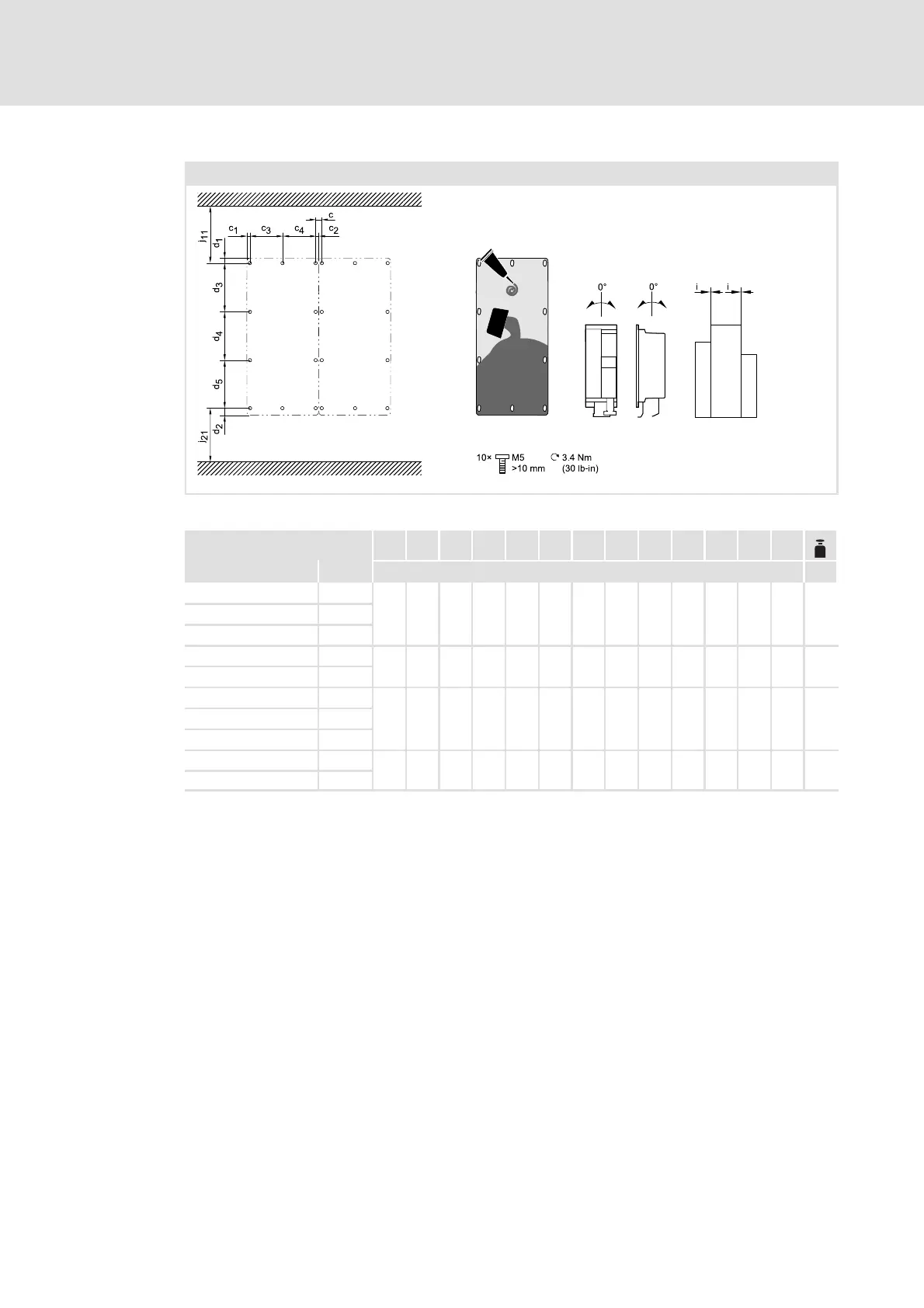

Fig. 5-40 Dimensions for mounting
d
1
d
2
d
3
d
4
d
5
c c
1
c
2
c
3
c
4
i j
11
j
21
[kW] [mm] [kg]
E84AVTCC7524xXx7.5
9 9 120 120 120 15 7 7 80 80 0 >95 >95 3.8
E84AVTCC1134xXx 11
E84AVTCC1534xXx 15
E84AVTCC1834xXx 18.5
8.5 8.5 130 130 130 15 5.5 5.5 110 110 0 >95 >95 9.5
E84AVTCC2234xXx 22
E84AVTCC7524xBx 7.5
9 9 120 120 120 15 7 7 80 80 0 >95 >95 3.9
E84AVTCC1134xBx 11
E84AVTCC1534xBx 15
E84AVTCC1834xBx 18.5
8.5 8.5 130 130 130 15 5.5 5.5 110 110 0 >95 >95 9.6
E84AVTCC2234xBx 22
