Configure the timing; see chapter "Timing functions of the switching inputs/outputs".
Save the configuration of the switching inputs in the device.
Click the symbol.

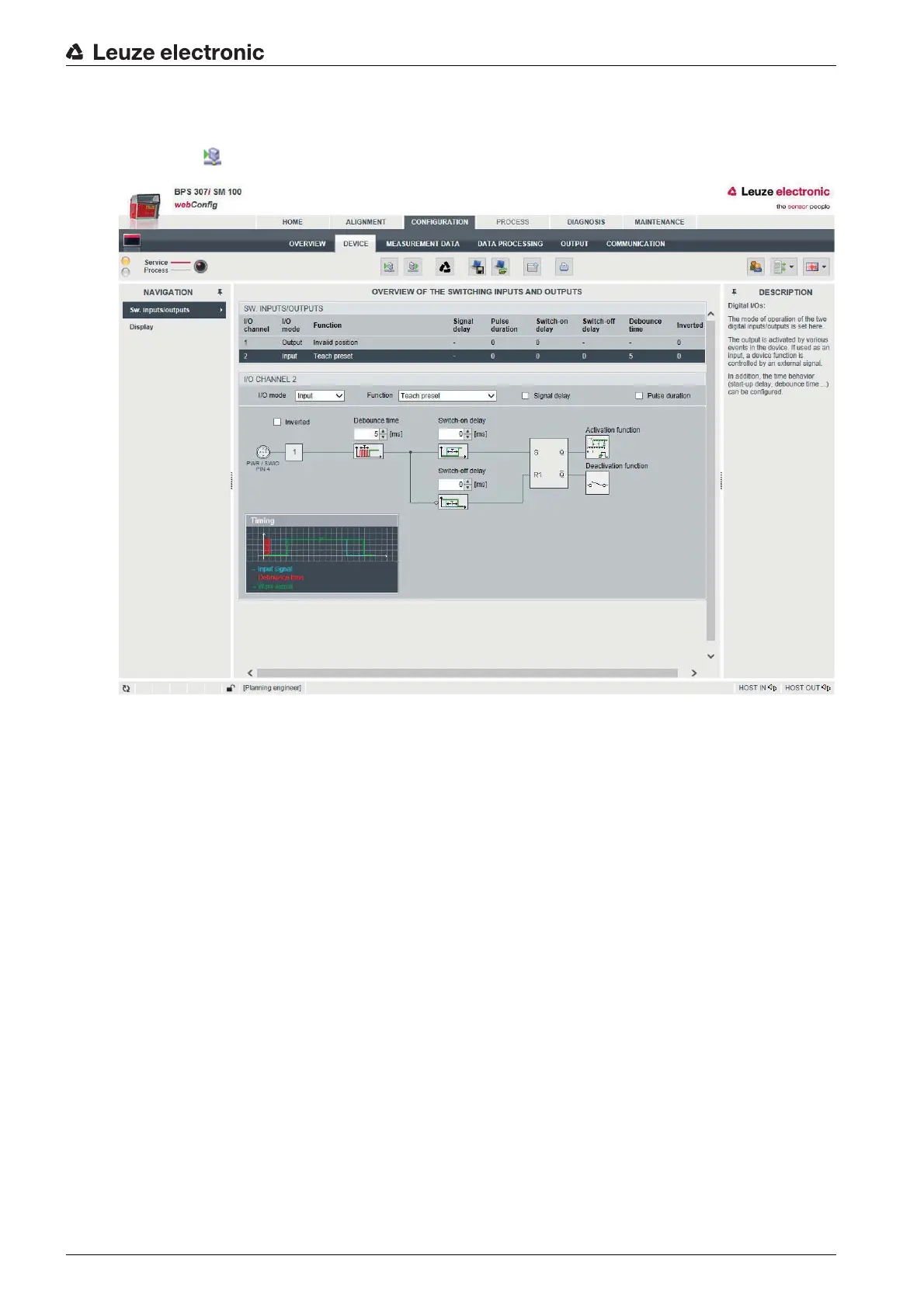

Figure 9.6: Configuration of the switching inputs
Timing functions of the switching inputs/outputs
The timing functions (e.g., start-up delay) can only be configured with the webConfig tool.
• Start-up delay
With this setting, the output pulse is delayed by the specified time (in ms).
• Switch-on time
Defines the switch-on time period for the switching input. Any activated switch-off function then no
longer has any function.
If the output is deactivated via the switch-off signal before the start-up delay lapses, only a brief pulse
appears at the output following the start-up delay.
• Debounce time
Parameter for setting the software debounce time for the switching input. The definition of a
debounce time extends the signal transition time accordingly.
If this parameter has the value
0
, no debouncing takes place. Otherwise, the set value corresponds
to the time (in ms) that the input signal must be present and stable.
• Switch-off delay
This parameter specifies the duration of the switch-off delay (in ms).
