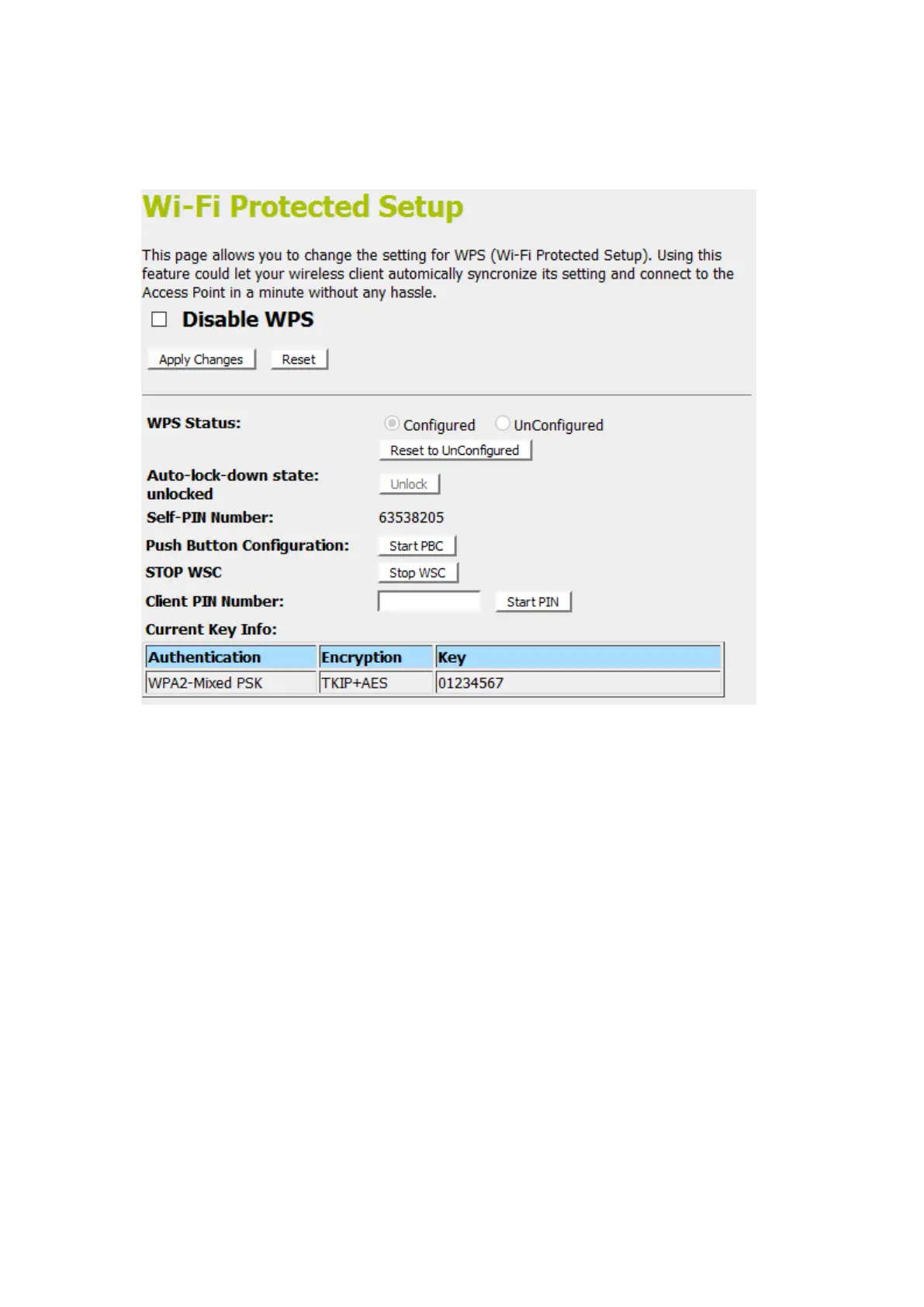

17. Finally, AP will become configured (see WPS Status). The

authentication algorithm, encryption algorithm, and key

assigned by WCN will be displayed below “Current Key

Info”.
