AP (Access Point) + WDS (Wireless Distribution System)

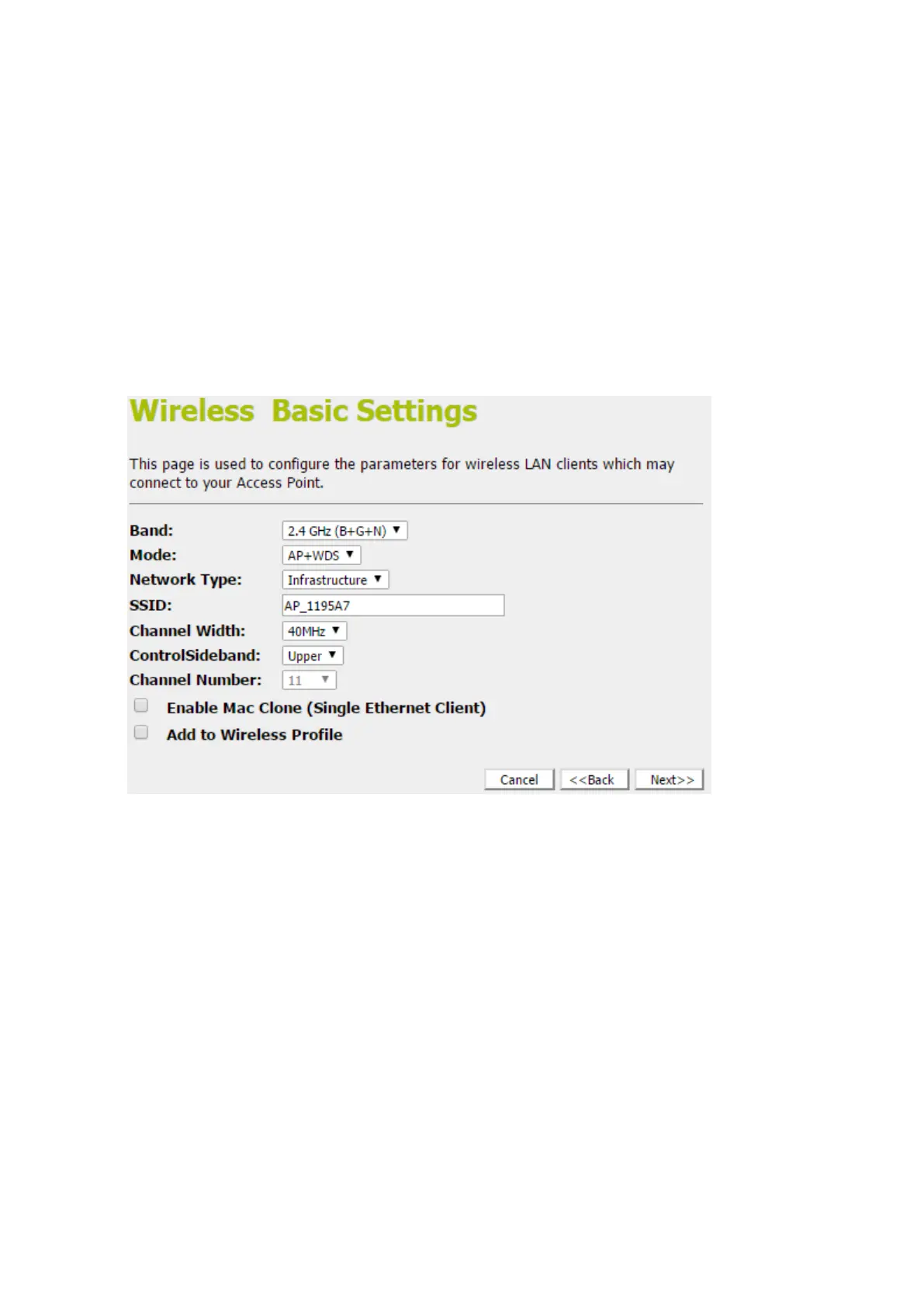

Access Point is used to configure the parameters for wireless
LAN clients which may connect to your Access Point.
1. From the Band drop-down list, select a Band.
2. From the Mode drop-down list, select AP+WDS setting.
3. Enter SSID for example AP_5G.
4. From the Channel Width drop-down list, select a Channel
Width.
5. From the ControlSideband drop-down list, select a
ControlSideband.
6. From the Channel Number drop-down list, select a Channel
Number.
7. Click Next>>.
