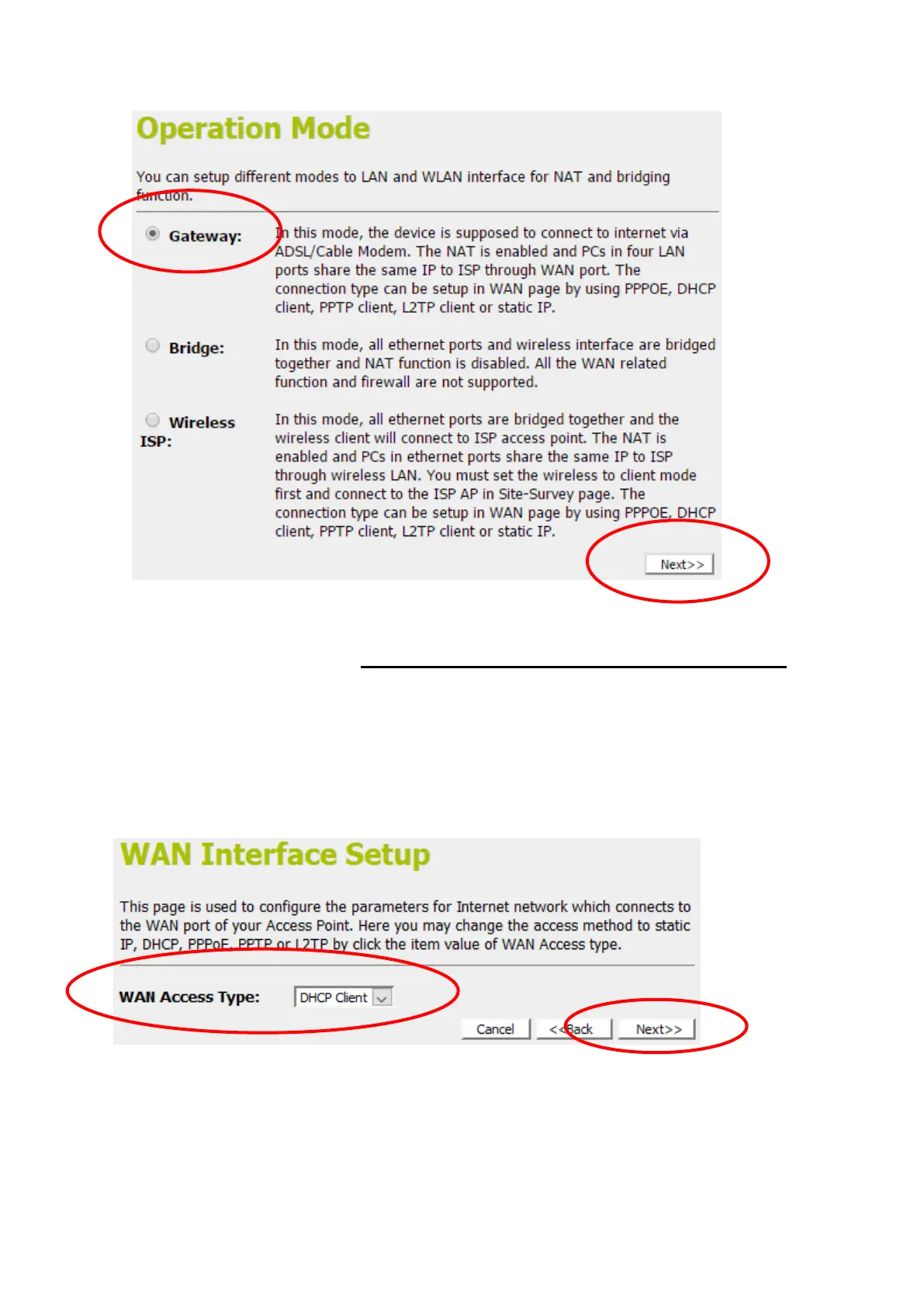

WAN Interface Setup

Examples

8-1. DHCP client

From the WAN Access Type drop-down list, select DHCP Client

If you are happy with your settings, click onNext

8-2. Static IP
