190

24 Statistics

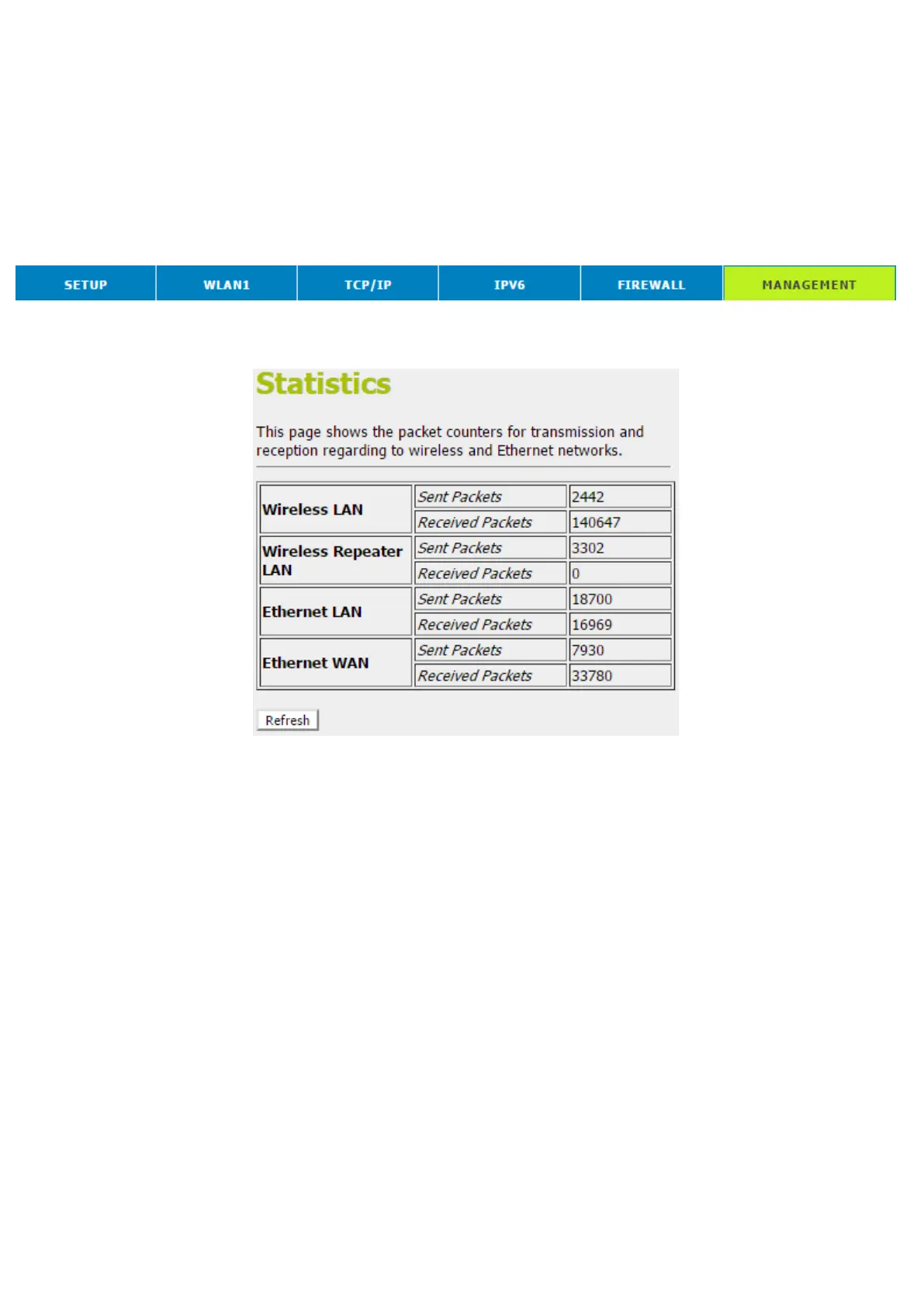

This page shows the packet counters for transmission and

reception regarding to wireless and Ethernet networks.

1. From the head menu, click on Management.

2. From the left-hand menu, click on Statistics. The following

page is displayed:
