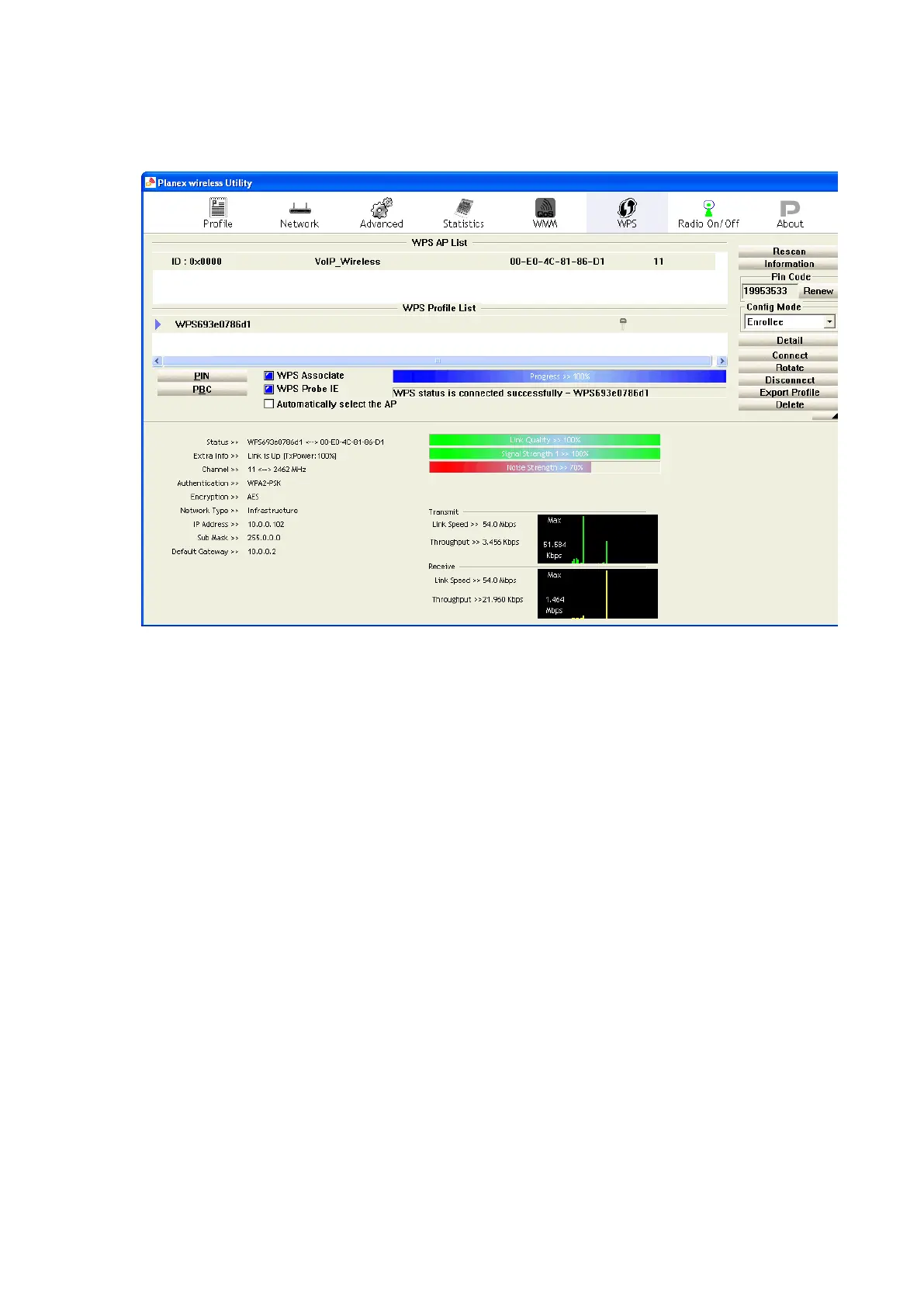

8. If the device PIN is correct and the WPS handshake is

successfully doneon the station side, User’s Wi-Fi Protected

status will be shown as below.
