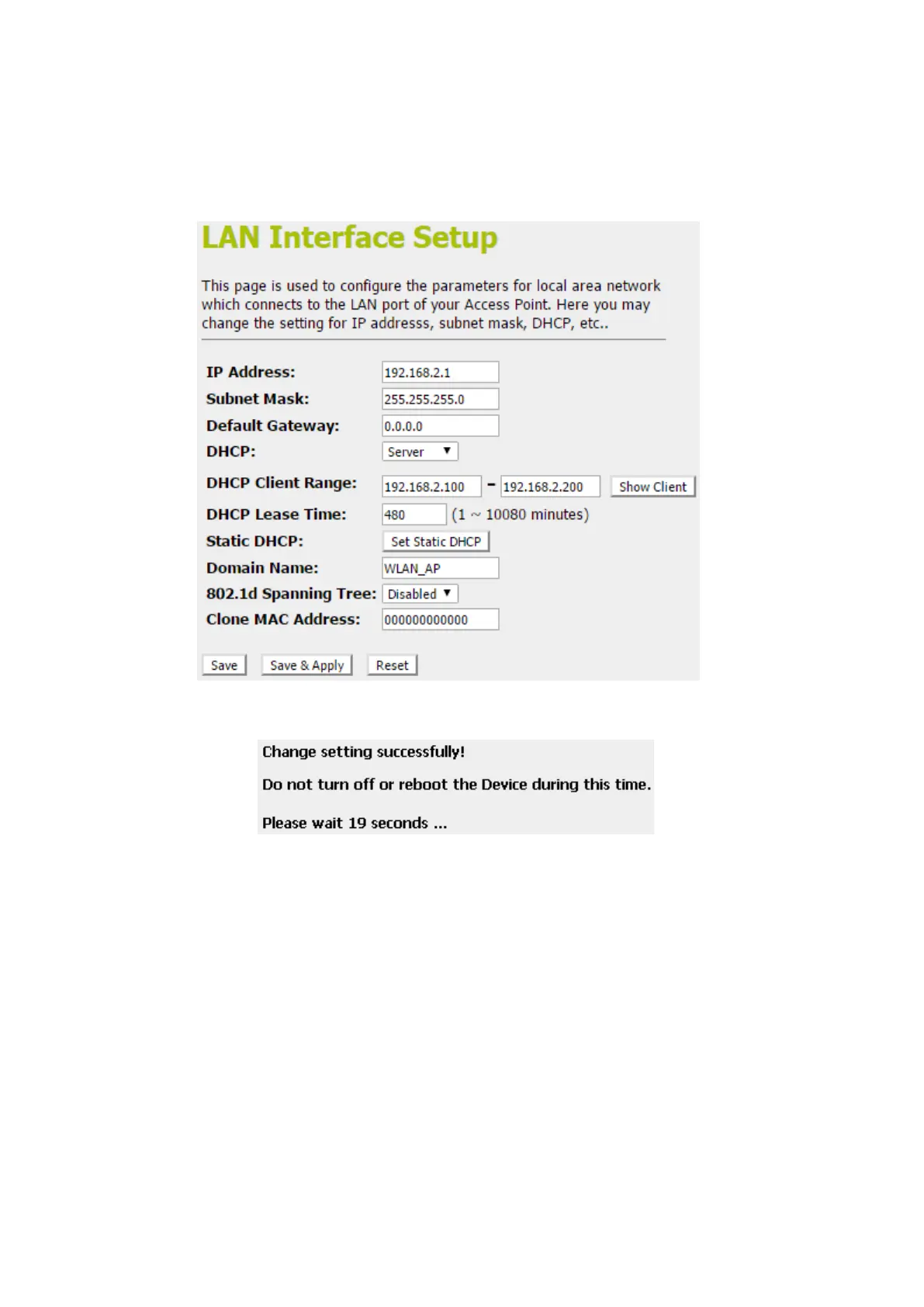

3. Type IP Address andChange default LAN port IP address.

4. Click in the IP Address and Subnet Mask box and type a

new IP Address and Subnet Mask.

5. Change the default DHCPClientRange.

6. Click Save & Apply.

7. Change setting successfully! Please wait 20 seconds….
