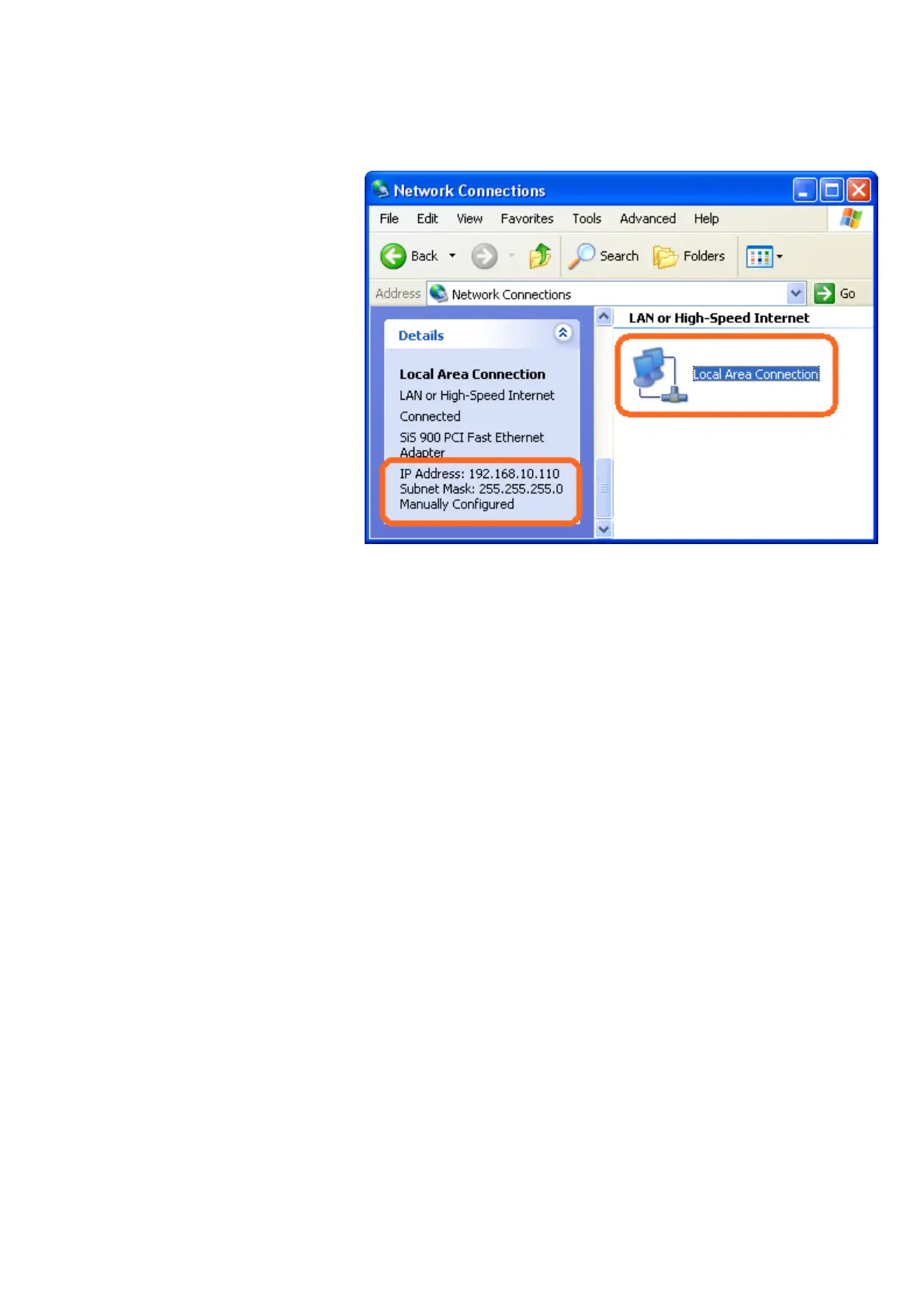

4. Click Local Area Connection in LAN or High-Speed

Internet and you could see string Manually Configured in

Details.

5. Right click Local Area Connection and click Properties

and then you could get the IP settings in detail and write

down the IP settings as follow:
