Repair information 4-27
4512-420, -430

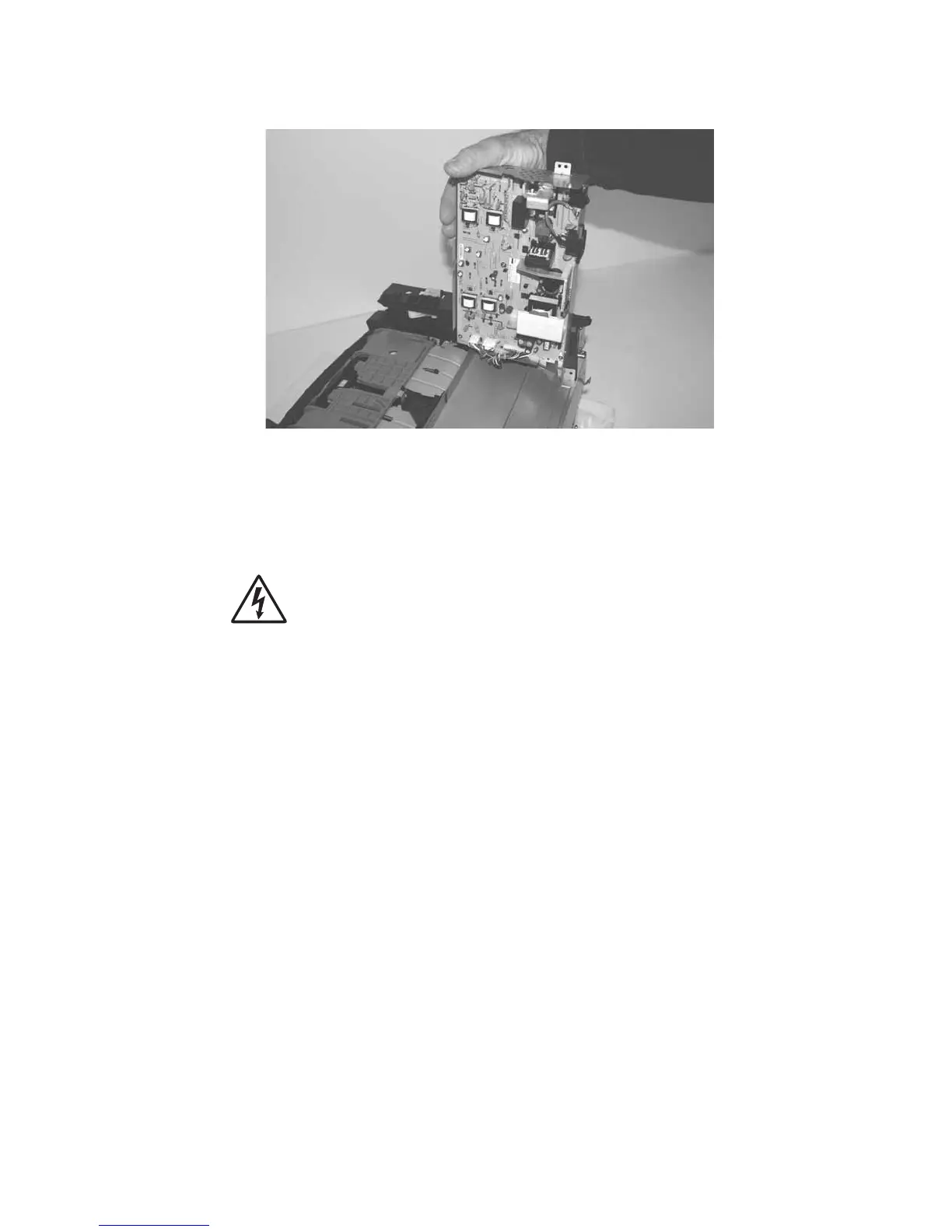

6. Rotate the assembly, and unplug the remaining cables.
7. Remove the assembly.
Re-installation note:
When re-installing the LVPS/HVPS assembly:
• Be sure to locate the rear flange of the card bracket inside of the shield prior to rotating the card assembly
into final position.
• It is easy for the cables to become pinched during re-installation. Make sure that the cables are free during
re-installation.
CAUTION: Make sure that the mylar card is located inside the overlapping
flanges to avoid damage to the printer.
