4-2 Lexmark™ E350d, E352dn
4512-420, -430
Front access cover removal
1.
Remove Tray 1.
2. Open the front access cover.
3. Open the rear door and the right side cover.
4. Loosen the four screws, and remove the controller card cover.

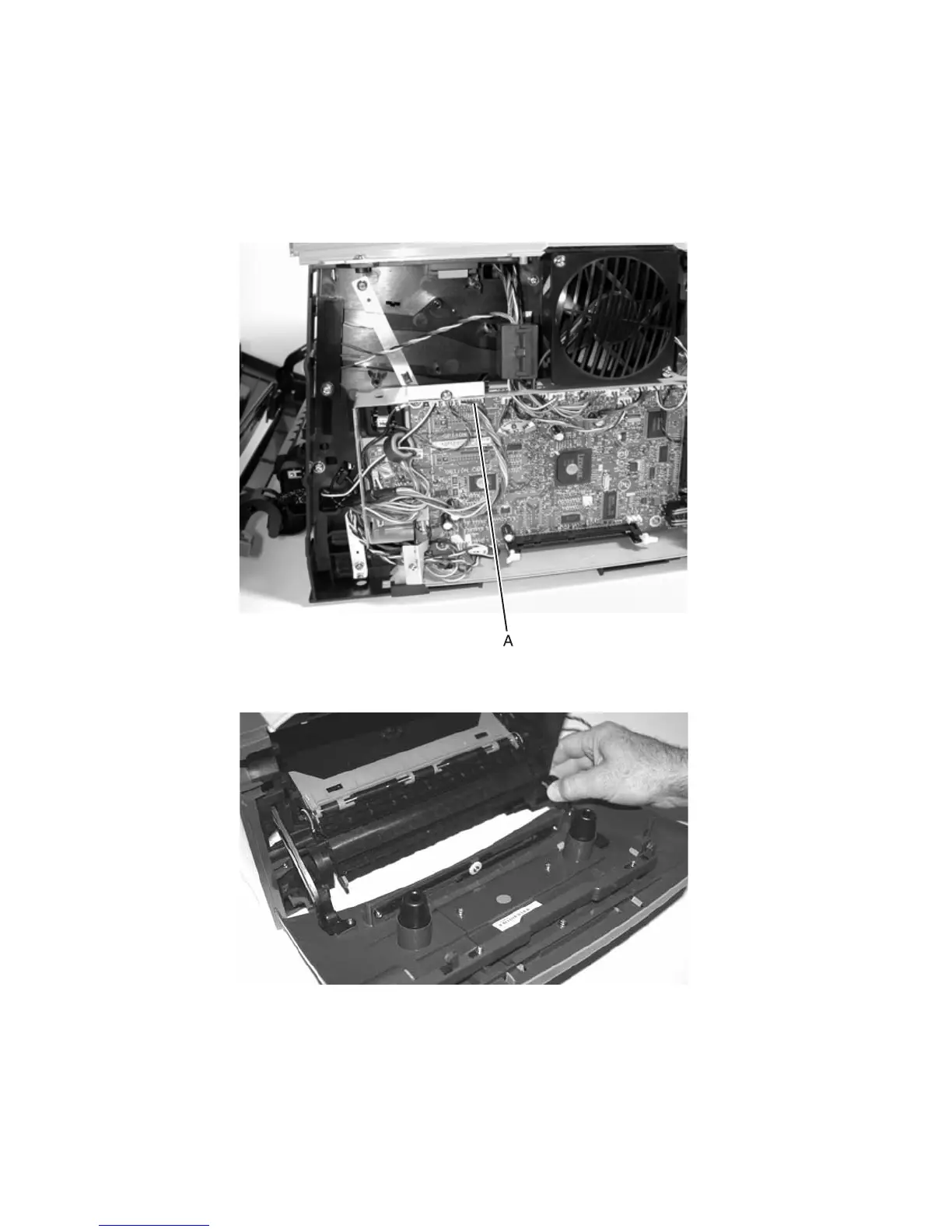

5. Disconnect the operator panel cable (A) from J3 on the controller card.
6. Extract the cable, and unhook the access cover by pressing the right hinge to the right until it can be lifted
up and away from its pivot. Relax the hinge above the pivot.
7. In the same manner, move the left hinge from its pivot point.
