4-32 Lexmark™ E350d, E352dn
4512-420, -430
Manual feed solenoids
1.
Remove the duplex unit. See “Duplex removal” on page 4-18.
2. Extract the solenoid cable to a point close to the left side as possible.
3. Remove the main motor drive. See “Main motor drive removal” on page 4-28.
4. Remove the auto comp clutch. See “Auto comp clutch removal” on page 4-10.

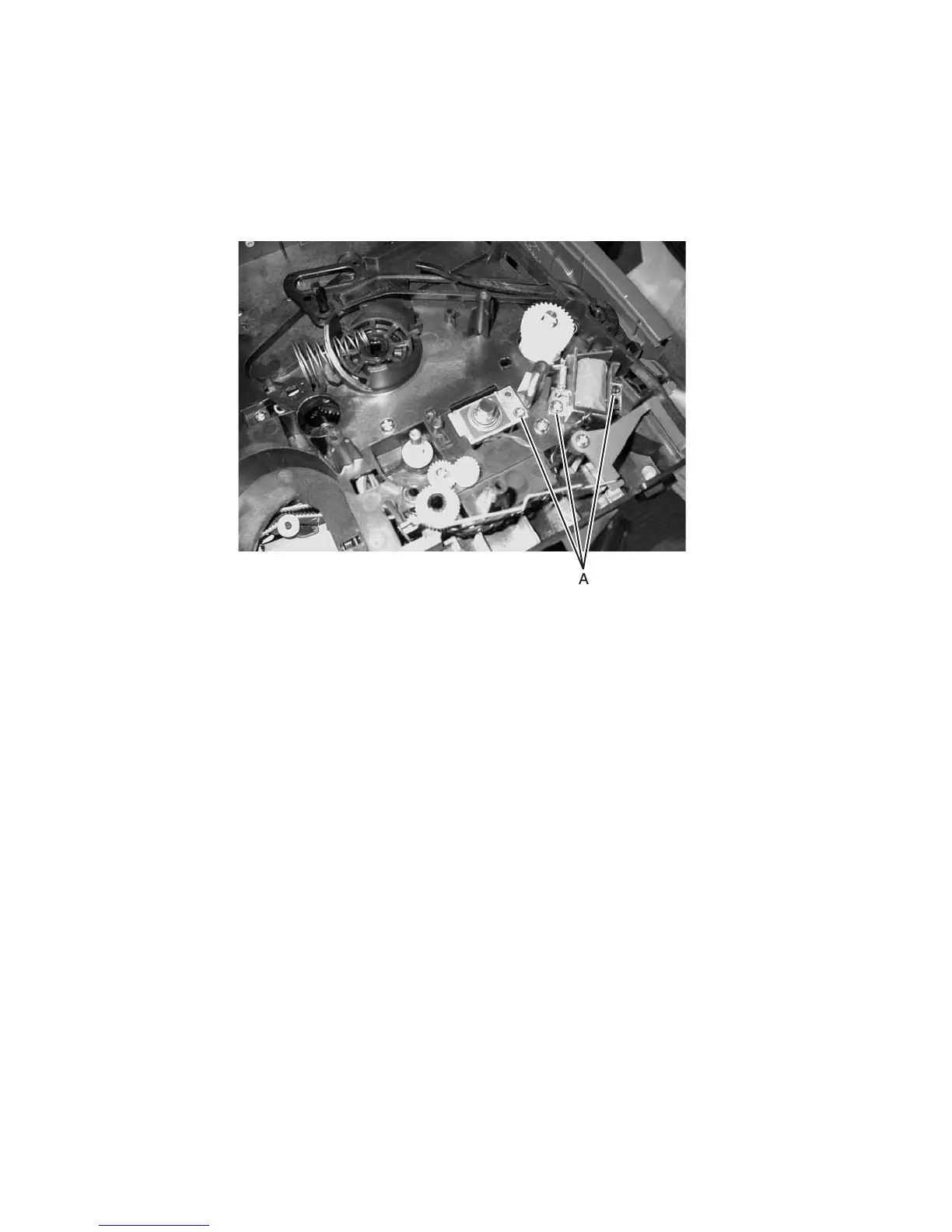

5. Remove the three screws (A).
6. Remove the manual feed solenoids.
