Lexmark E352DN

Repair information 4-35
4512-420, -430
Narrow media sensor removal
1.
Remove the top cover. See “Top cover removal” on page 4-7.
2. Turn the top cover upside down.

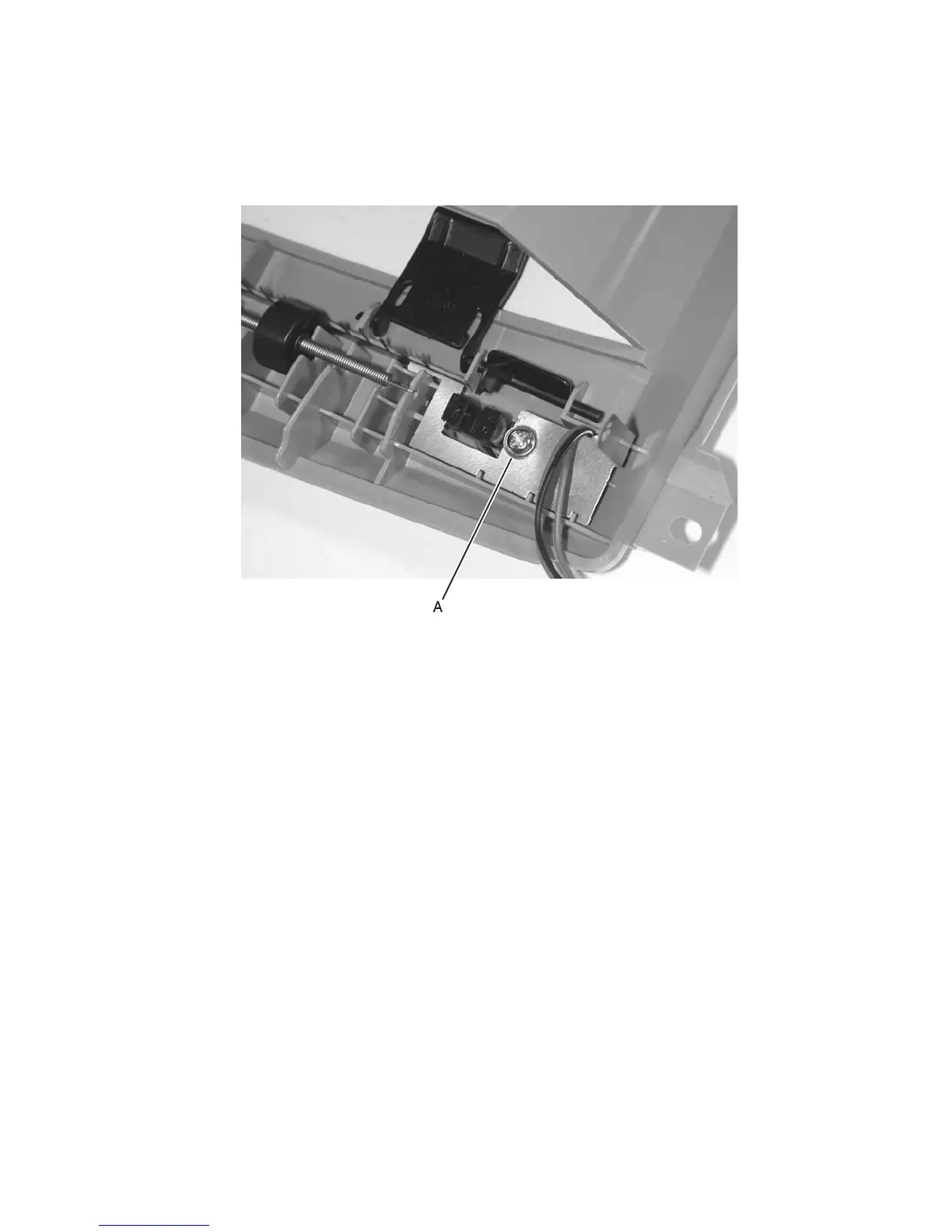

3. Remove the ground strap screw (A) and the ground strap.
4. Remove the narrow media sensor.
