4-34 Lexmark™ E350d, E352dn
4512-420, -430

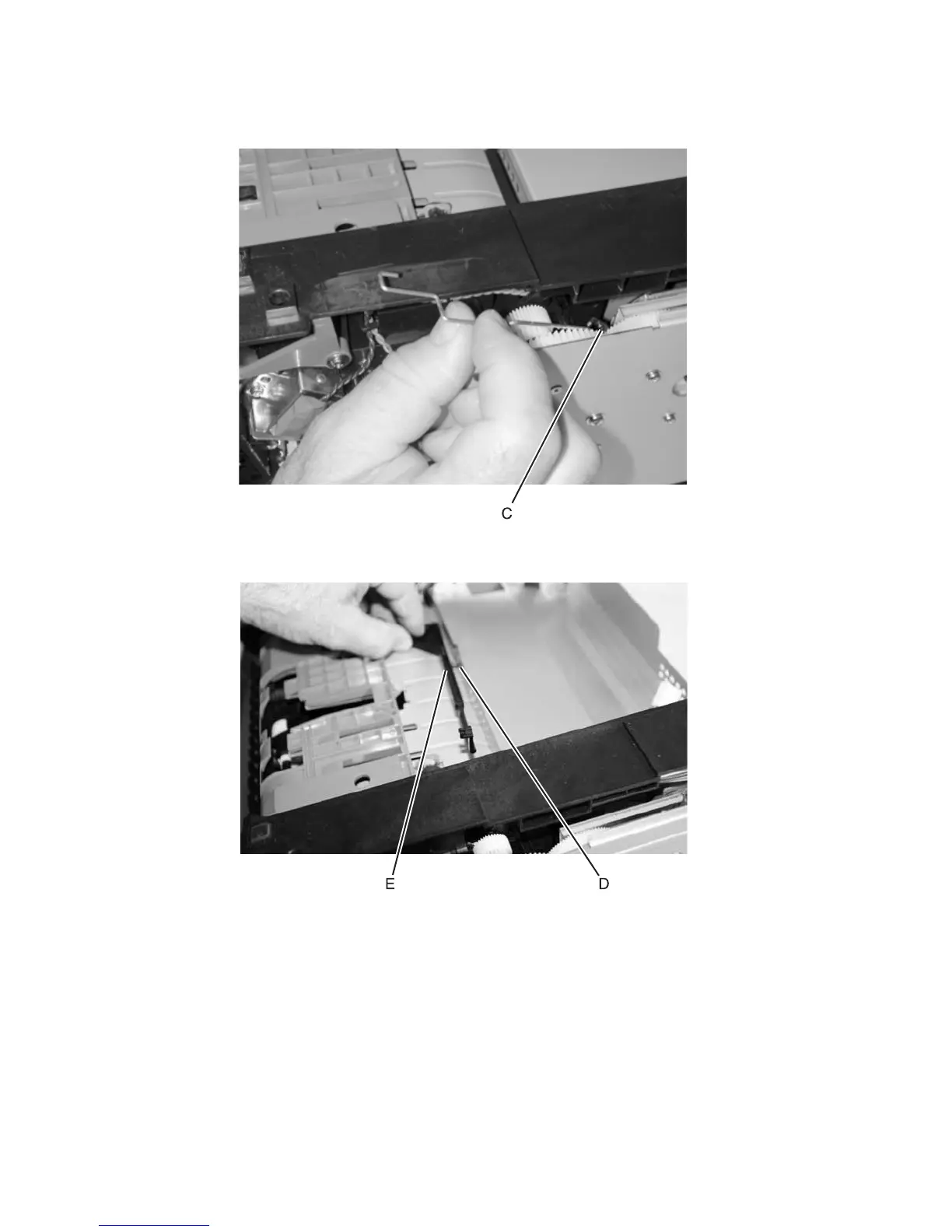

5. Rotate the link, and turn it to separate it from the plastic shaft (C). Be careful to not damage the adjacent
gear.
6. Unsnap the shaft from its pivot, which is attached to the back of the LVPS/HVPS shield (D).
7. Align the link end of the shaft with the opening in the side frame, and remove the shaft and spring anchor
(E).
