4-16 Lexmark™ E350d, E352dn
4512-420, -430
Developer drive coupling assembly removal
1.
Remove the left side cover. See “Left side cover removal” on page 4-4.
2. Place the machine on its right side.
Note: Be sure to protect the machine from marring.

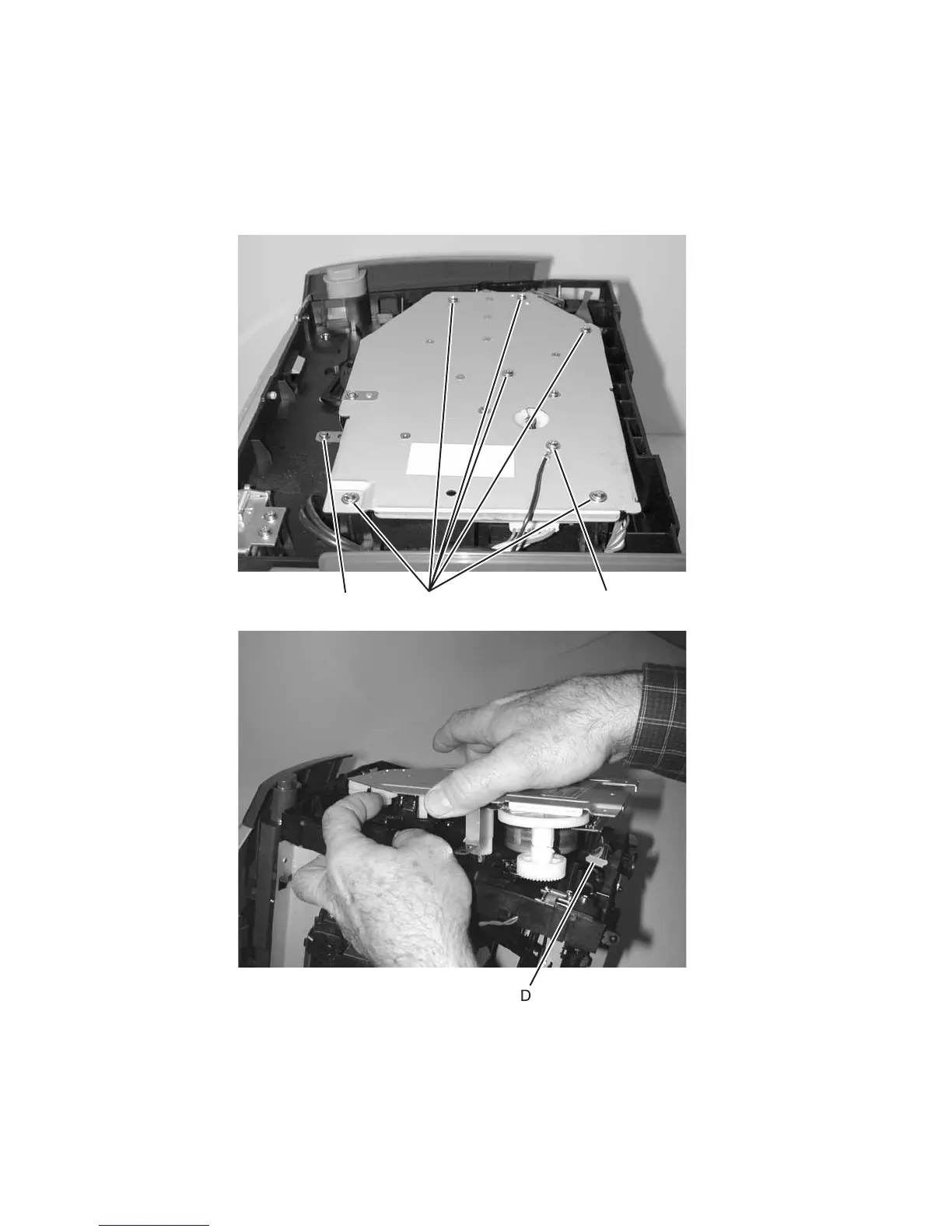

3. Remove the six screws (A), the machine screw (B), and the ground cable screw (C).
4. Lift the main motor drive, and disconnect the motor cable (D).
ABC
