Lexmark E352DN Service Manual

Repair information 4-15
4512-420, -430
Cover open sensor removal
1.
Remove Tray 1.
2. Open the front cover.
3. Open the right side cover. See steps 1 and 2 of “Right side cover removal” on page 4-5.
4. Remove the controller card cover.

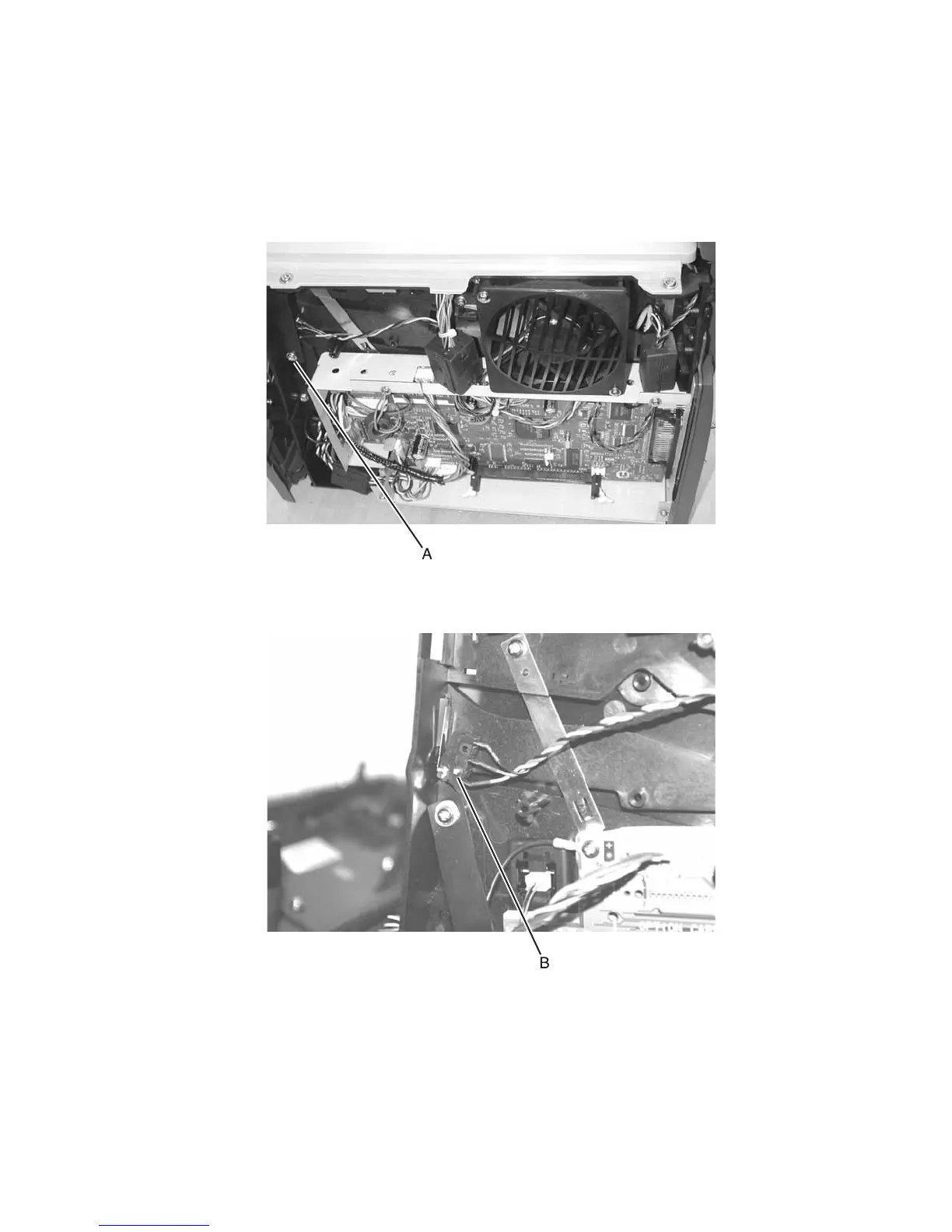

5. Loosen the one screw (A) from the shield that protects the sensor.
6. Disconnect the cable from J6 on the controller card.
Note: The cable has a toroid. Be sure to remove the toroid before removing the cable.
7. Use a small Phillips screwdriver to remove the screw (B) holding the sensor.
8. Remove the sensor.
Reinstallation note:
• Be sure to re-route the cable back through its retainer.
• Be sure to place the toroid back over the cable.

Lexmark E352DN Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 2400 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Internal memory	32 MB
Maximum internal memory	160 MB
Sound pressure level (printing)	52 dB
Total input capacity	250 sheets
Maximum input capacity	800 sheets
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	210 x 297 mm
Media weight (tray 1)	80 gsm
Paper tray media types	Envelopes, Labels, Plain paper
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6
Compatible operating systems	Mac OS X Mac OS 9.x Citrix MetaFrame Linux Microsoft Windows 2000, NT, Me, XP, Server 2003, 98, Vista Novell UNIX
Maximum duty cycle	80000 pages per month
Sustainability certificates	ENERGY STAR
Operating altitude	0 - 2500 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	FCC Class B, UL 60950-1, U.S. FDA, IEC 320-1, CSA, ICES Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Dimensions (WxDxH)	396 x 359 x 259.5 mm
