Lexmark E352DN

Repair information 4-19
4512-420, -430

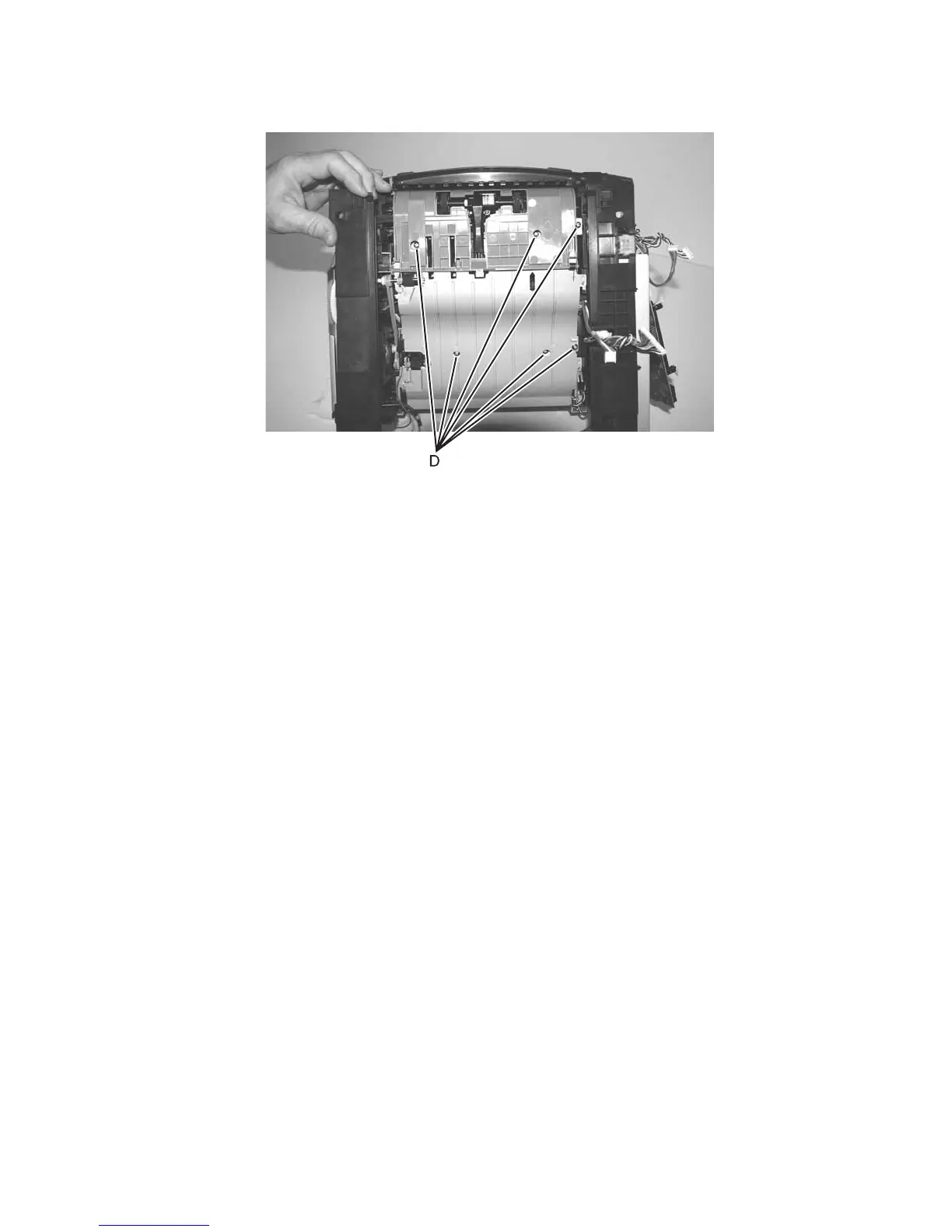

9. Remove the six screws (D).
10. Lift the right side (opposite the coupler) and remove the duplex.
Note: At re-installation, before tightening the screws, locate the duplex unit against the left side frame. (Left side
relative to the picture above.)
