Repair information 4-23
4512-420, -430

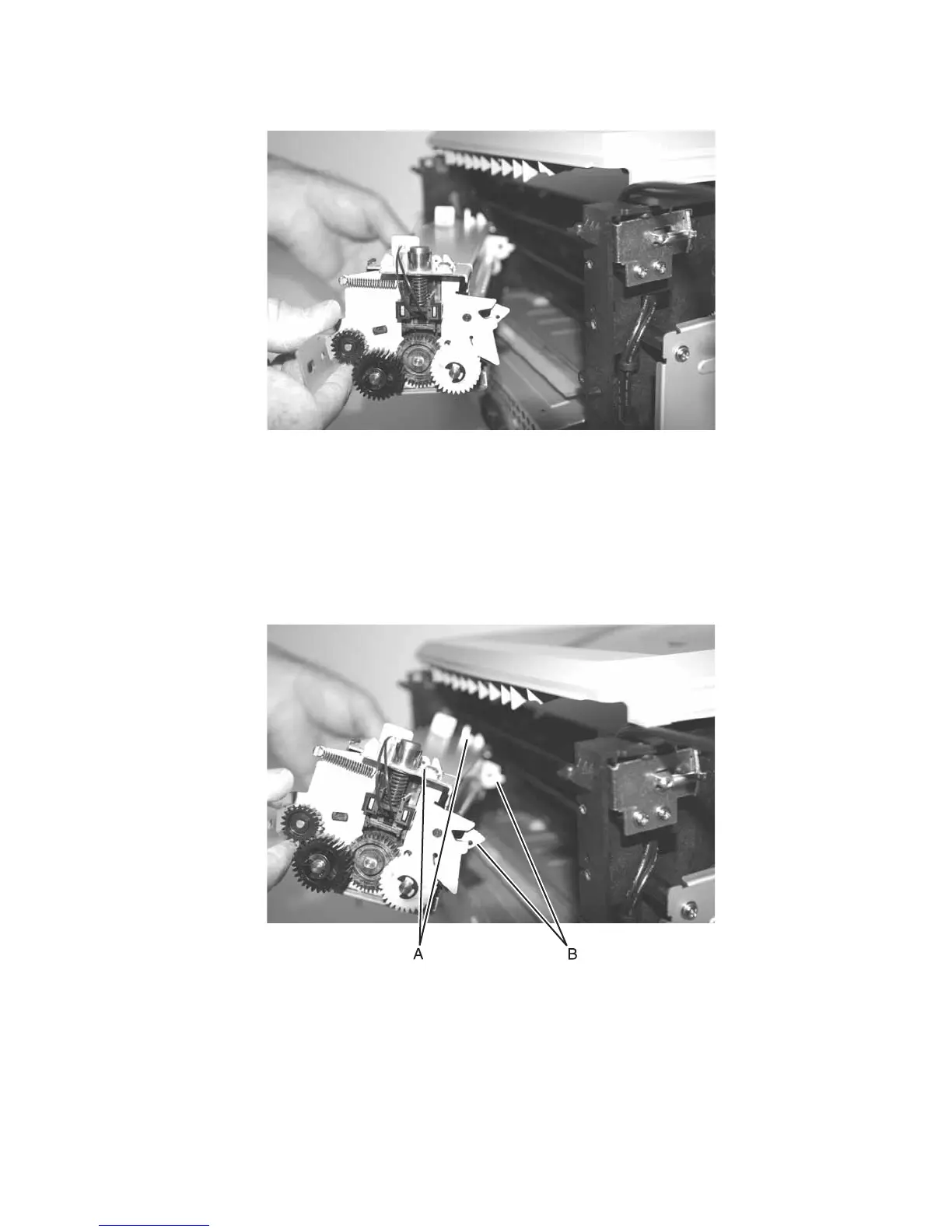

11. Unlatch the fuser (see (A) and (B) in the second photo below), and remove.
Reinstallation note:
• Be sure to reroute the cables back through their retainers.
• If the printer has been moved following the removal of the fuser, verify that the cross shaft behind the fuser
is in place.
• Place the fuser into the opening, and push levers (A) to open the latches (B). Push the fuser into the final
position on the release levers. Alternatively, the fuser may be tilted to drop the latches (B) below the shaft
for the final few millimeters.
• Check to make sure that the ground cable is routed out of the way and will not be pinched or damaged by
the rear cover.
