Repair information 4-13
4513-420, -430
Duplex/main motor gear drive interface removal
1. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-28.
2. Remove the duplex. See “Duplex removal” on page 4-11.
3. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-31.

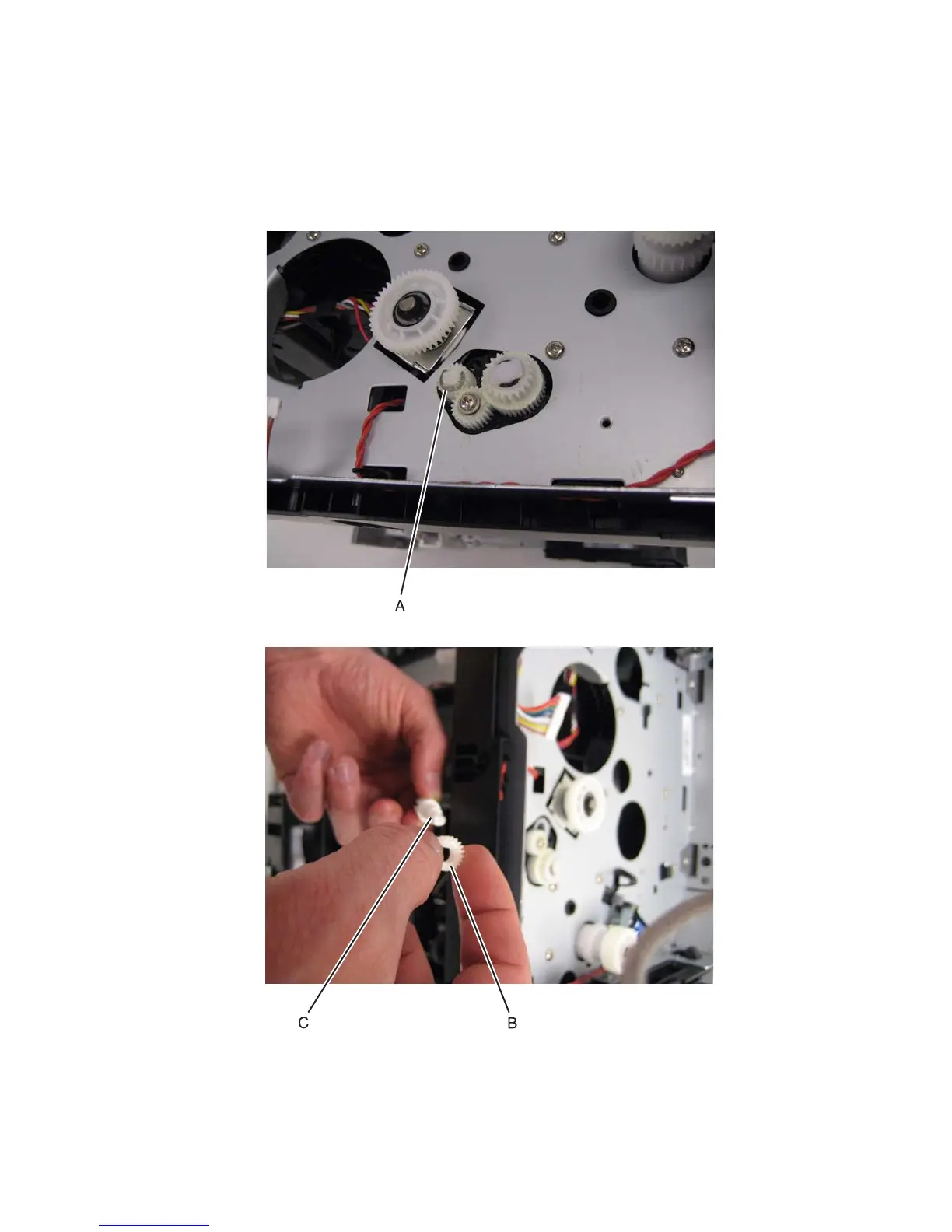

4. Remove the e-clip (A) from the gear.
5. Remove the gear (B) and gear shaft (C).
