4-64 Lexmark™ E360d, E360dn
4513-420, -430
Top cover assembly removal
1. Open the front access door.
2. Remove the left side cover. See “Left side cover removal” on page 4-24.
3. Remove the right side cover. See “Right side cover assembly removal” on page 4-61.
4. Remove the rear door and rear cover. See “Rear door and rear cover removal” on page 4-57.

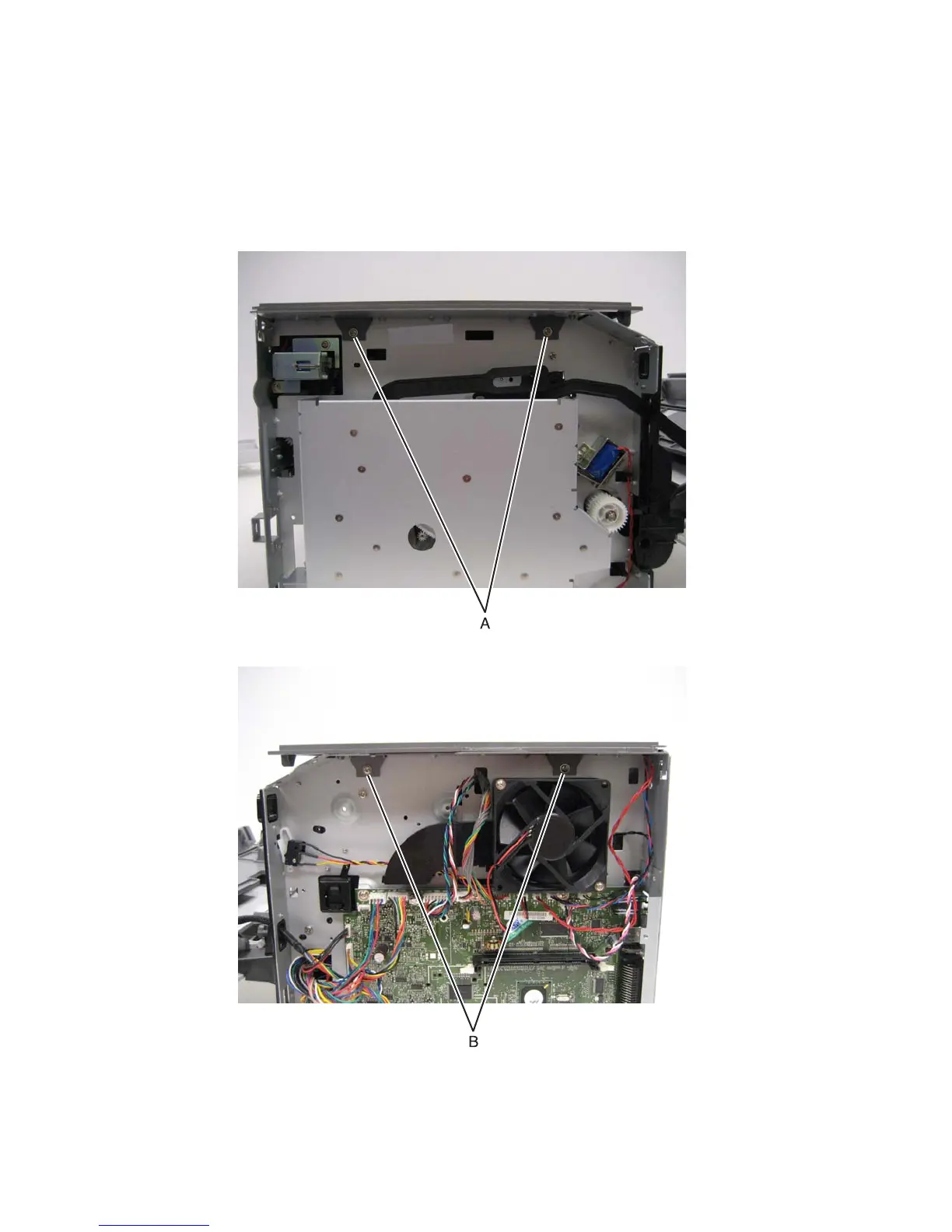

5. Remove the two screws (A) from the left side of the printer.
6. Remove the two screws (B) from the right side of the printer.
