Repair information 4-65
4513-420, -430

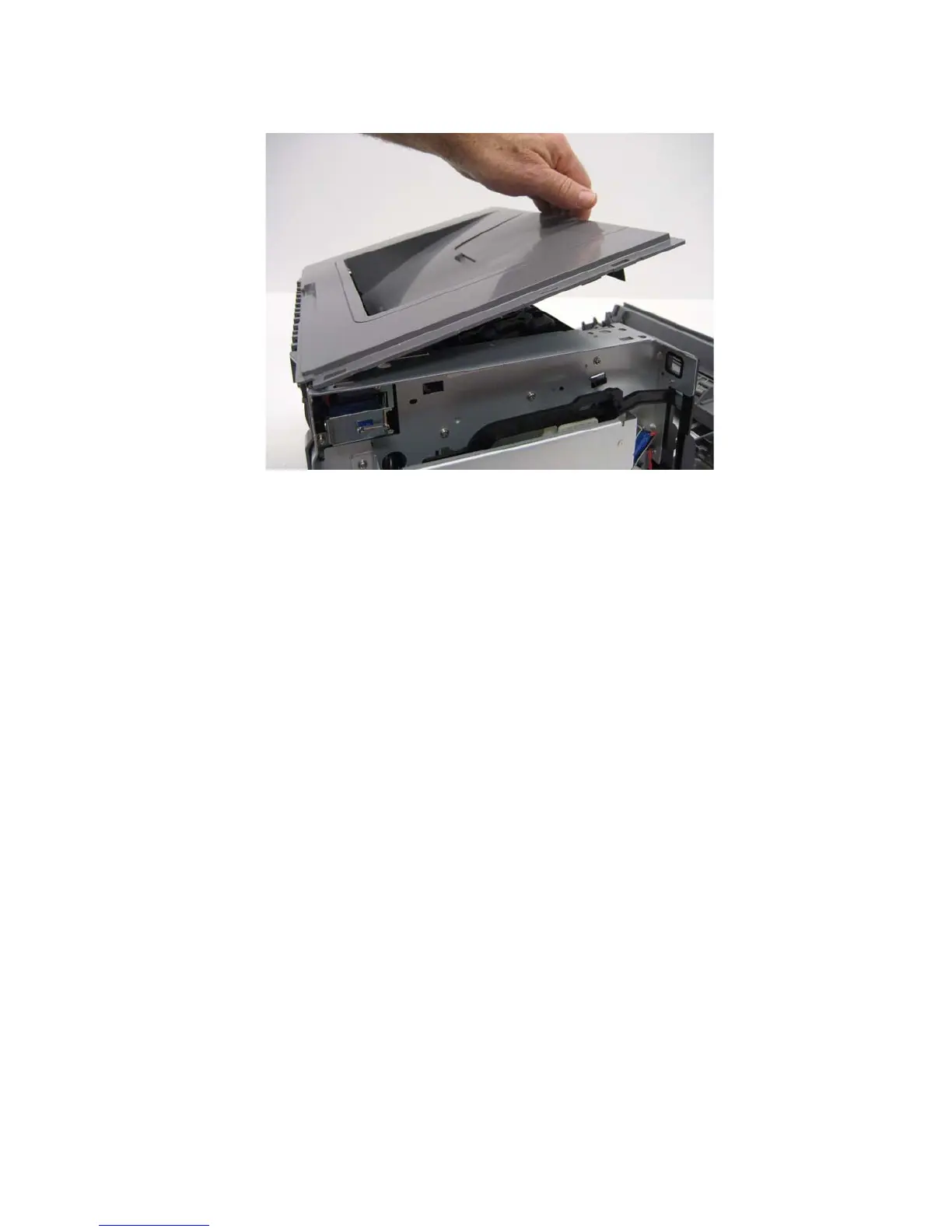

7. Lift the top cover, and remove.
Note:
• Be sure to lift the top cover assembly from the front to remove.
• During reinstallation, be sure the exit guide and the paper bin align correctly. A mismatch can cause paper
jams.
