4-20 Lexmark™ E360d, E360dn
4513-420, -430
Fuser removal
1. Remove the rear exit guide. See “Rear exit guide assembly with sensor and reversing solenoid
removal” on page 4-59.

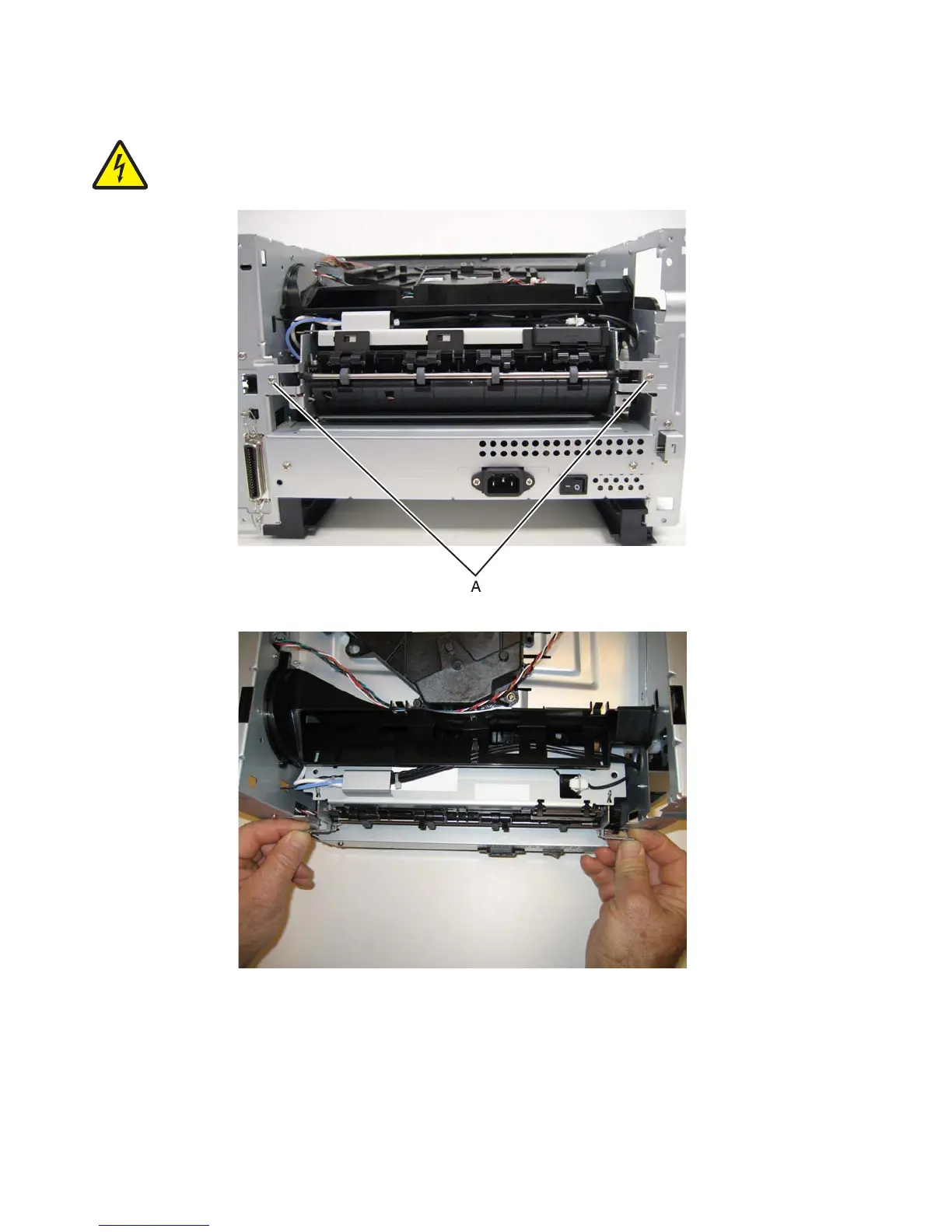

2. Remove the two screws (A).
3. Partially pull the fuser forward for better access.
4. Push in on the cable connector cover (B), and remove.
To Next Page
