Lexmark E360d User Manual

Repair information 4-3
4513-420, -430
ACM pick tire roller removal
1. Place the printer on its side.
Note: Be careful to not mar the finish of the printer.

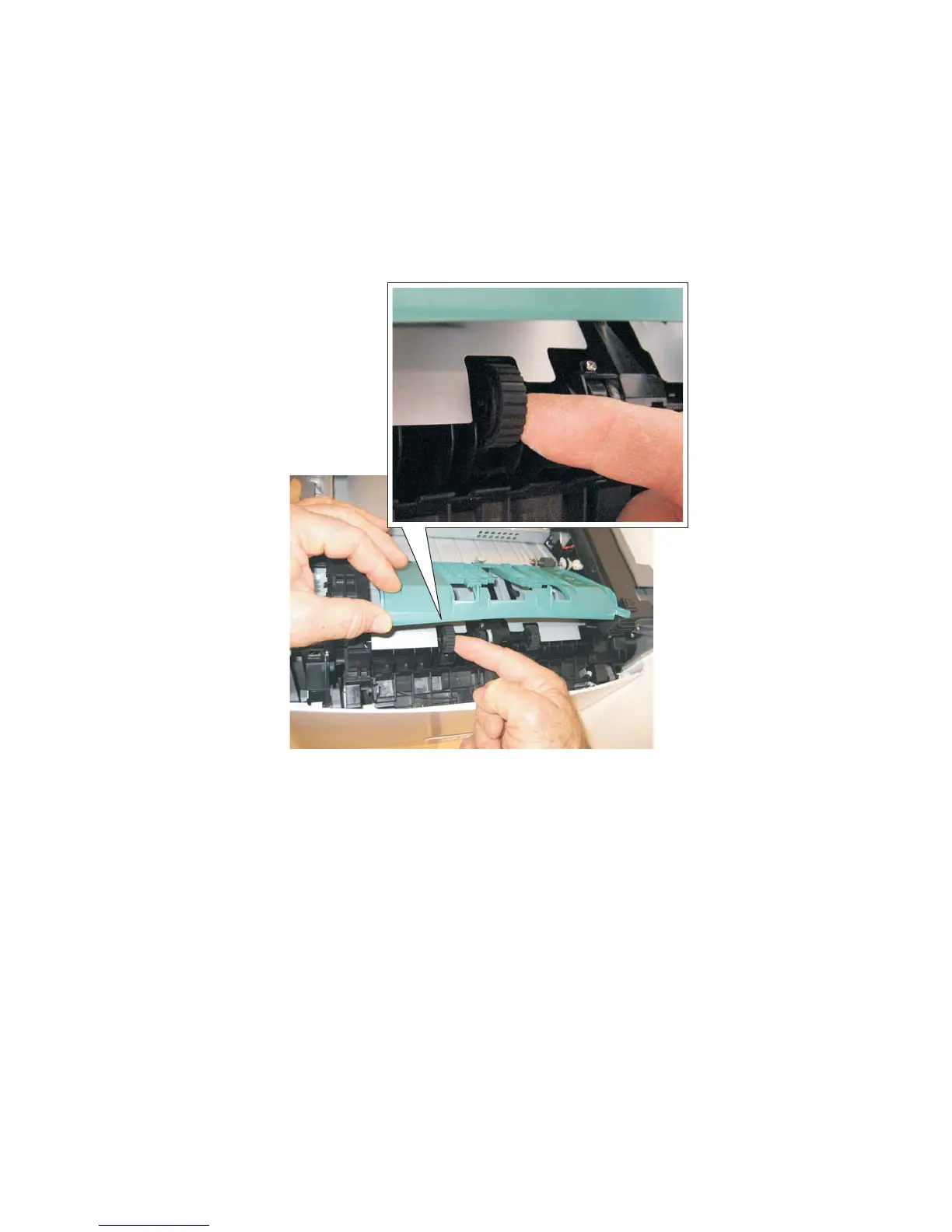

2. Open the duplex jam door just far enough to pull out the ACM pick tires.
Warning: Open the duplex door only far enough to remove the ACM pick tires. If the door is opened too far,
then it can become disengaged and interfere with the paper tray. The tray may go in but will not come
out, and will render the printer as non-serviceable.
3. After the ACM pick tires have been pulled out, close the duplex door.

Lexmark E360d Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Processor frequency	400 MHz
Maximum internal memory	288 MB
Sound pressure level (printing)	53 dB
Total input capacity	300 sheets
Total output capacity	150 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
I/O ports	Centronics IEEE 1284 Bidirectional Parallel USB 2.0 Specification Hi-Speed Certified
Standard media sizes	10 Envelope 7 3/4 Envelope 9 Envelope A4 A5 B5 Envelope C5 Envelope DL Envelope A6 Card Executive Folio JIS-B5 Legal Letter Statement Universal Oficio
Compatible operating systems	Apple Mac OS X Apple Mac OS 9.x Microsoft Windows 2000 Server running Terminal Services with Citrix Presentation Server 3.0, 4.0 Microsoft Windows Server 2003 running Terminal Services with Citrix Presentation Server 3.0, 4.0, 4.5 Microsoft Windows Server 2003 x64 running Terminal Services with Citrix Presentation Server 4.0 x64, 4.5 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 running Terminal Services Microsoft Windows 2000 Server running Terminal Services Microsoft Windows Server 2003 x64 Microsoft Windows Server 2003 x64 running Terminal Services Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Microsoft Windows Server 2008 running Terminal Services Microsoft Windows Server 2008 x64 running Terminal Services
Duty cycle letter size (maximum)	740 pages per month
Envelopes sizes	B5, C5, DL
Media types supported	Card Stock, Envelopes, Paper Labels, Plain Paper, Transparencies
Paper tray media types	Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Statement (140 x 216mm), Legal (media size)
JIS B-series sizes (B0...B9)	B5
Maximum duty cycle	80000 pages per month
Certification	FCC Class B, UL 60950-1 3rd Edition, U.S. FDA, IEC 320-1, CSA, ICES Class B, Energy Star, CE Class B, CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL AR, CS, TÜV Rh, N Mark, ACA C-tick Class B, CCC Class B, BSMI Class B, MIC, EK Mark, PSB

Weight and Dimensions

Dimensions (WxDxH)	406 x 370 x 260 mm
