Lexmark E360d - Bezel Removal

Repair information 4-5
4513-420, -430
Bezel removal
1. Open the front access door.

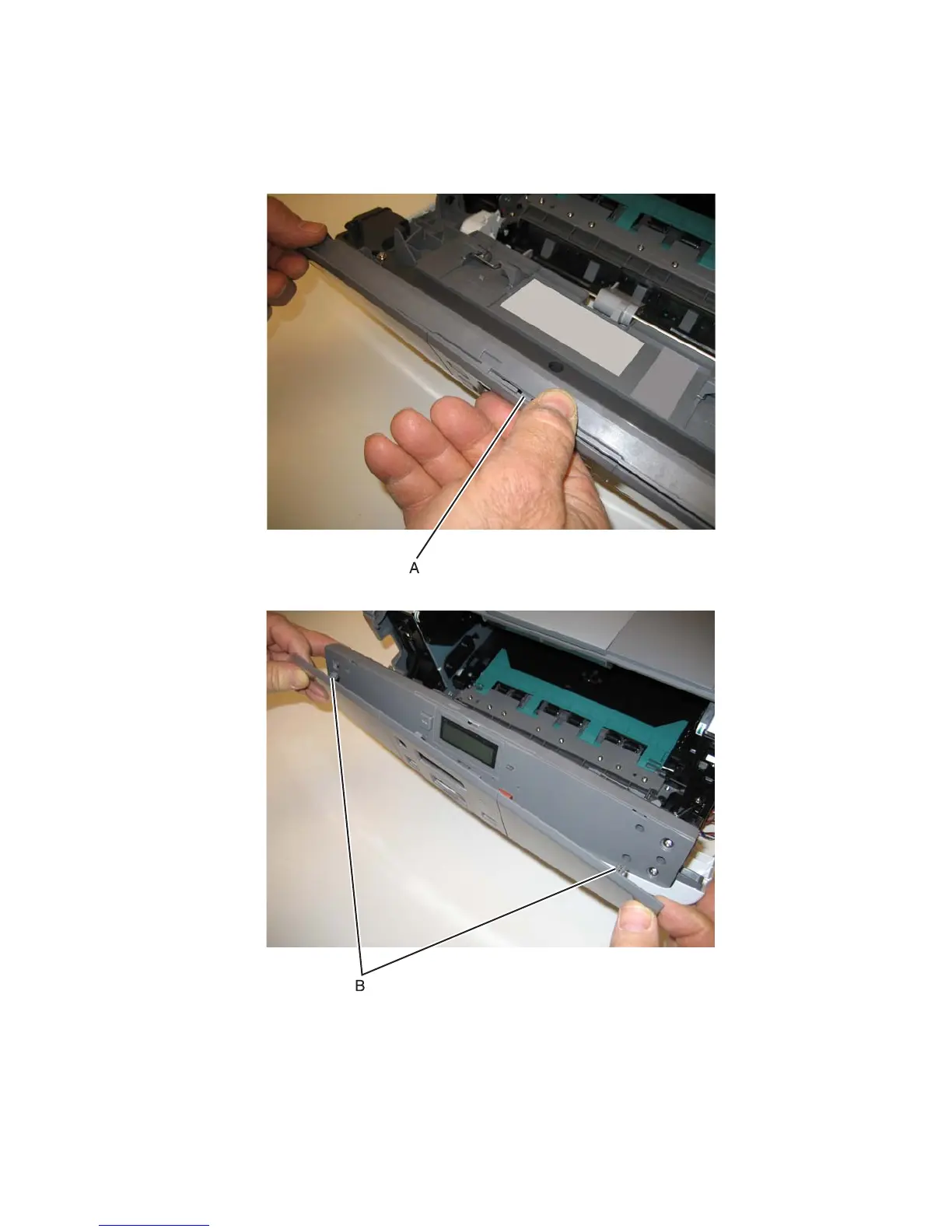

2. Flex the top of the bezel, and disconnect the latch (A) from the upper front cover.
3. Disconnect the latches (B) from the upper front cover.
4. Remove the bezel.
