4-38 Lexmark™ E360d, E360dn
4513-420, -430
Media ACM ASM feeder removal
1. Remove the left side cover. See “Left side cover removal” on page 4-24.
2. Remove the LVPS/HVPS. See “LVPS/HVPS removal” on page 4-28.
3. Remove the duplex. See “Duplex removal” on page 4-11.
4. Remove the main motor gear drive. See “Main motor gear drive removal” on page 4-31.
5. Loosen the media feed clutch. See “Media feed clutch removal” on page 4-41.
Warning: Do not cut the cable (leave the media feed clutch hanging).

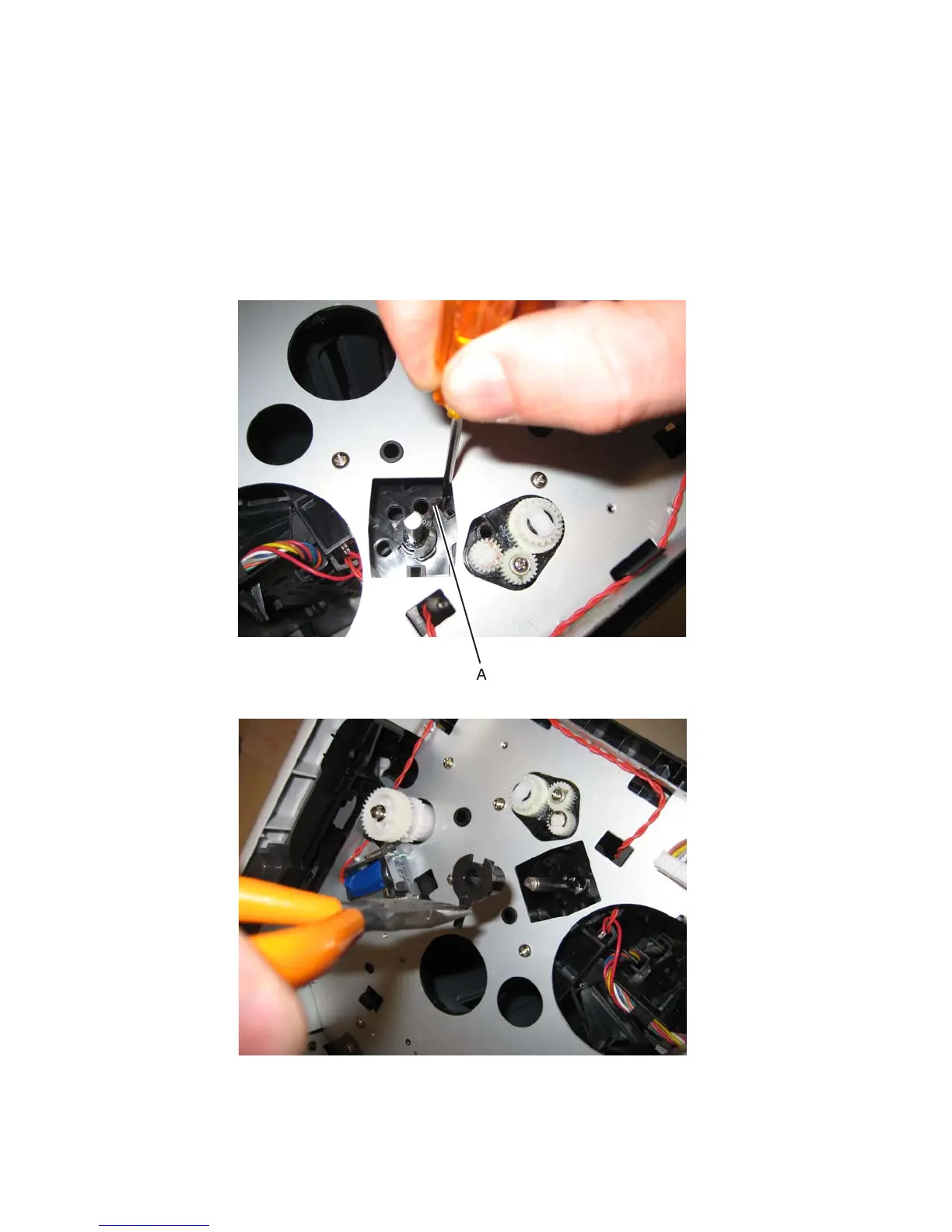

6. Use a screwdriver to pop the shaft retainer tab (A) loose from the ACM feed shaft.
7. Use a small pair of pliers to remove the shaft retainer tab.
