4-68 Lexmark™ E360d, E360dn
4513-420, -430

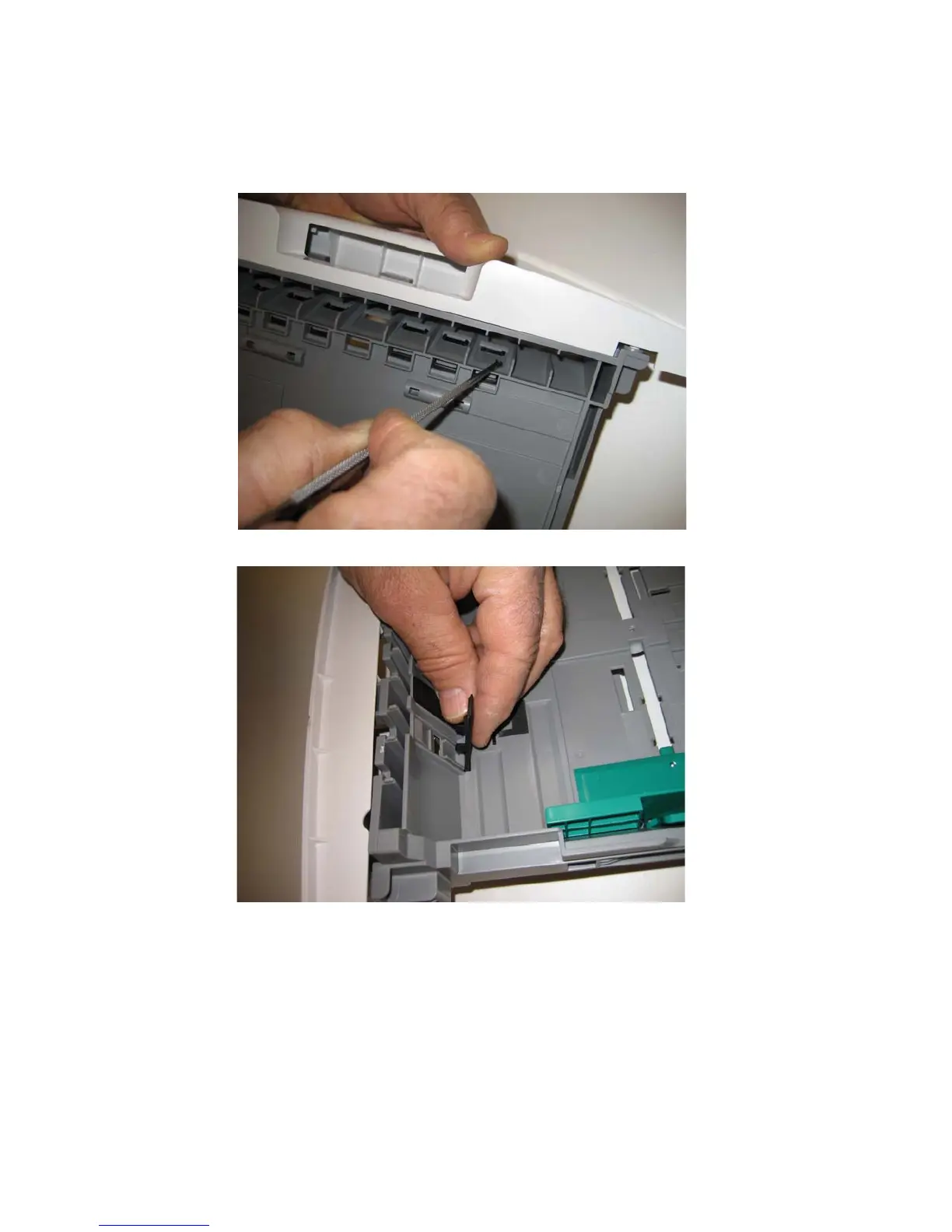

Wear strip (tray 1 and 250-sheet tray 2) removal
1. Hold the tray with the bottom up.
2. Use a spring hook to disconnect the strip from the top of the tray.
3. Remove the strip from inside the tray.
