Lexmark E360d - Left Print Cartridge Guide Removal

Repair information 4-23
4513-420, -430
Left print cartridge guide removal
1. Open the front door and remove the print cartridge.

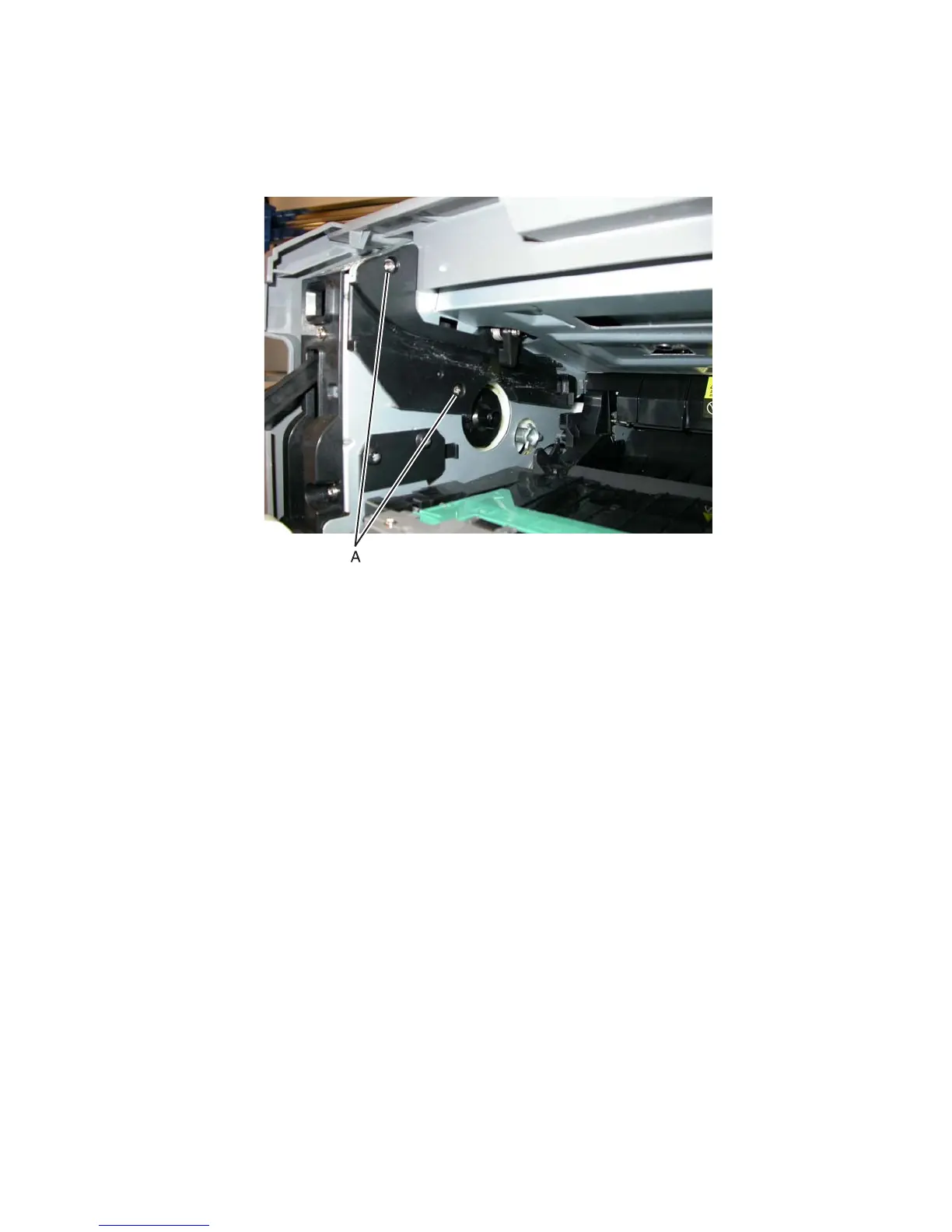

2. Remove the two screws (A).
3. Swing the front edge of the print cartridge guide to the right, and then toward the front of the printer.
4. Remove the left print cartridge guide.
