Lexmark E360d - Tips on Preventing Jams; Paper Path

General information 1-7
4513-420, -430
Tips on preventing jams

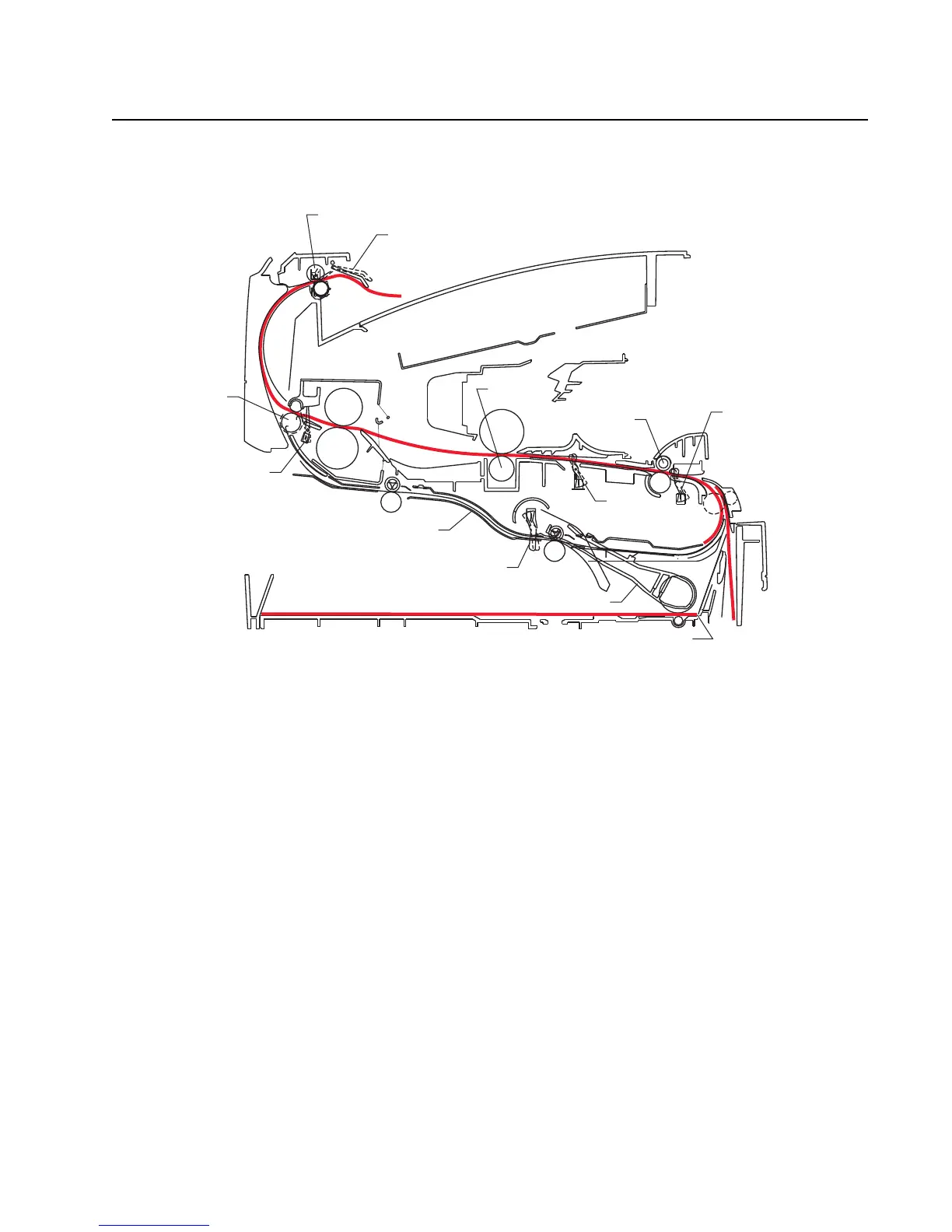

Paper path
A Paper path A-B 125.3 mm
B Manual feed sensor B-C 9.0 mm
C Upper end feed rolls C-D 59.8 mm
D Input sensor D-E 44.9 mm
E Transfer roll E-F 112.7 mm
F Fuser F-G 21.4 mm
G Fuser exit rolls G-H 114.8 mm
H Fuser exit sensor H-I 7.5 mm
I Exit rolls I-J 17.0 mm
J Exit sensor I-K 211.7 mm
K Duplex unit K-L 93.4 mm
L Duplex sensor L-M 8.4 mm
M Auto compensator
G
H
K
L
D
M
A
B
C
E
F
J
I
