Lexmark MS517dn User Manual

Controller board shield removal (MS610de)
Note: This is not a FRU.
1 Remove the right cover. See “Right cover removal” on page 241.

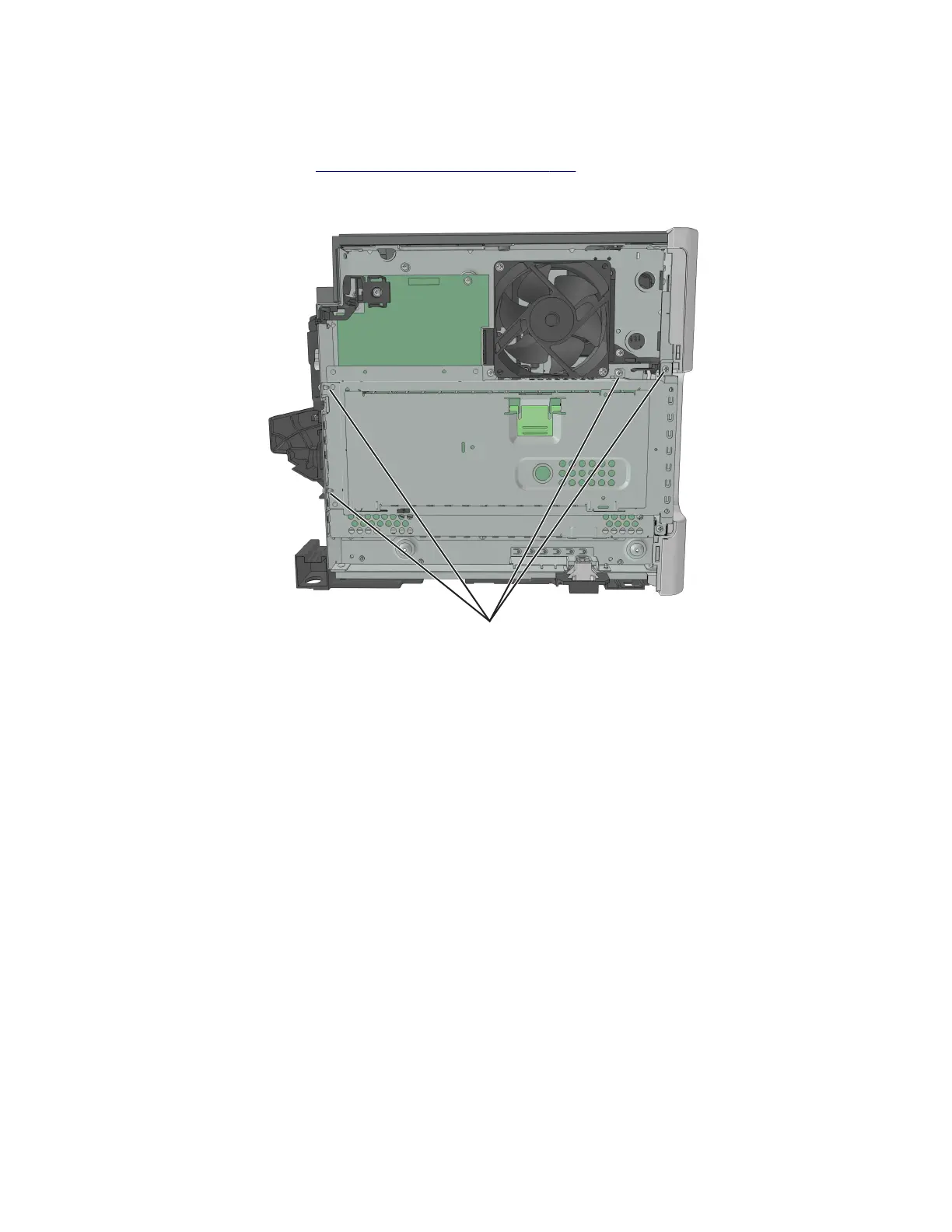

2 Remove the four screws (A) securing the controller board shield.
A
Controller board removals
Critical information for controller board or control panel replacement
Warning—Potential Damage: Replace only one of the following components at a time:
• Control panel
• Controller board
To replace a component, and to test whether the problem is resolved:
1 Replace the aected component.
Warning—Potential Damage: Do not perform a POR (Power‑On Reset) until the problem is resolved. If a
POR is performed at this point, the replacement part can no longer be used in another printer and must
be returned to the manufacturer.
2 Enter the Diagnostics Menu. The Diagnostics Menu allows you to temporarily use the replacement part.
Warning—Potential Damage: Some printers will automatically perform a POR if the Diagnostics Menu is
not opened within five seconds. If a POR is performed at this point, the replacement part can no longer
be used in another printer and must be returned to the manufacturer.
4514-6xx
Parts removal
247

Lexmark MS517dn Specifications

General

Cables included	AC
Cartridge(s) included	Yes
Included cartridge capacity (black)	3000 pages
Color	No
Print technology	Laser
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Processor cores	2
Noise level (idle)	15 dB
Processor frequency	800 MHz
Maximum internal memory	1280 MB
Sound pressure level (printing)	55 dB
Sound pressure level (duplex printing)	54 dB
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal, Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	2000 sheets
Maximum number of input trays	5
Multi-Purpose tray input capacity	100 sheets
USB connector	USB Type-B
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	LEAP, MD5, MSCHAPv2, PEAP, SNMPv3, SSL/TLS, TTLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Supported network protocols (IPv6)	TCP/IP IPv6, TCP, UDP
Package depth	472 mm
Package width	432 mm
Package height	380 mm
Package weight	16700 g
Power consumption (off)	0.5 W
Power consumption (ready)	7 W
Power consumption (printing)	600 W
Energy Star Typical Electricity Consumption (TEC)	2.1 kWh/week
Display	LCD
Certification	ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER
Product color	Gray
Display diagonal	2.4 \
Printing colors	Black
Country of origin	China
Maximum duty cycle	120000 pages per month
Recommended duty cycle	1500 - 14000 pages per month
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PPDS, PostScript 3
Sustainability certificates	Blue Angel, ENERGY STAR
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Authentication method	802.1x

Weight and Dimensions

Depth	382 mm
Width	399 mm
Height	263 mm
