The media with the embedded toner image goes through the fuser assembly to permanently bond the toner
to the media. When it passes between the heat belt and pressure roll of the fuser assembly, the combination
of heat and pressure fuses the toner image to the media. The fuser exit roller feeds the media to the paper exit
roller and then to the output bin.

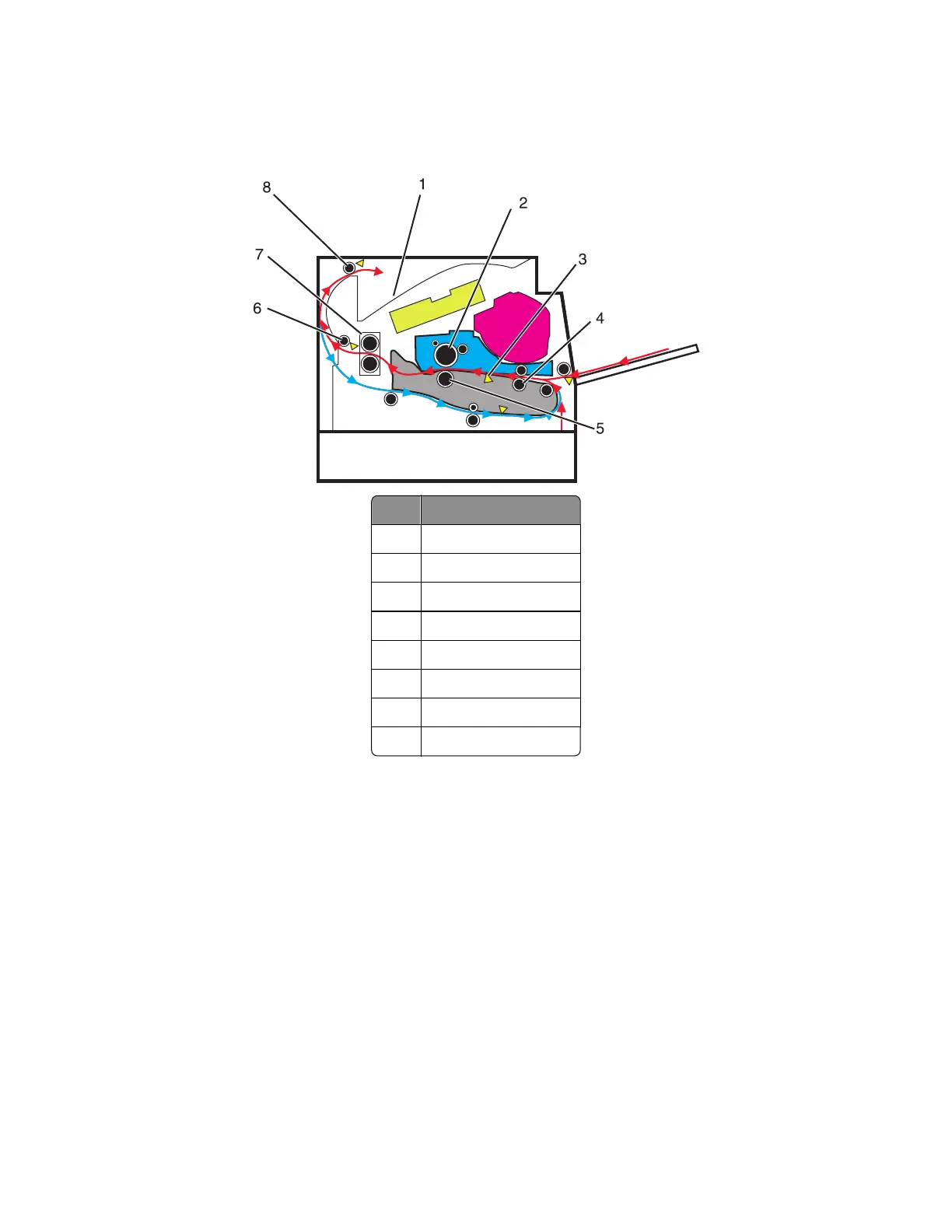

#Part
1 Output bin
2 Photoconductor drum
3 Input sensor
4 First input roller
5 Transfer roller
6 Fuser exit roller
7 Fuser assembly
8 Paper exit roller
Duplex printing
After the first side of the media has been printed on and is partially fed out to the output bin, the duplex solenoid
activates. This causes the exit roller to reverse its rotation and feed the media, with its trailing edge first, back
into the redrive assembly and then to the duplex paper path. The duplex front and rear deliver rollers move the
media through the duplex paper path, the diverter, the
first
input roller, and back to the primary paper path. The
same process for printing on the first side of the media repeats, this time for the second side of the media.
4514-6xx
Theory of operation
367

Lexmark MS517dn Specifications

General

Cables included	AC
Cartridge(s) included	Yes
Included cartridge capacity (black)	3000 pages
Color	No
Print technology	Laser
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Processor cores	2
Noise level (idle)	15 dB
Processor frequency	800 MHz
Maximum internal memory	1280 MB
Sound pressure level (printing)	55 dB
Sound pressure level (duplex printing)	54 dB
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal, Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	2000 sheets
Maximum number of input trays	5
Multi-Purpose tray input capacity	100 sheets
USB connector	USB Type-B
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	LEAP, MD5, MSCHAPv2, PEAP, SNMPv3, SSL/TLS, TTLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Supported network protocols (IPv6)	TCP/IP IPv6, TCP, UDP
Package depth	472 mm
Package width	432 mm
Package height	380 mm
Package weight	16700 g
Power consumption (off)	0.5 W
Power consumption (ready)	7 W
Power consumption (printing)	600 W
Energy Star Typical Electricity Consumption (TEC)	2.1 kWh/week
Display	LCD
Certification	ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER
Product color	Gray
Display diagonal	2.4 \
Printing colors	Black
Country of origin	China
Maximum duty cycle	120000 pages per month
Recommended duty cycle	1500 - 14000 pages per month
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PPDS, PostScript 3
Sustainability certificates	Blue Angel, ENERGY STAR
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Authentication method	802.1x

Weight and Dimensions

Depth	382 mm
Width	399 mm
Height	263 mm
