Lexmark MS517dn User Manual

#Part
1 First input roller
2 Secondary input roller
3 Separator roller
4 Pick rollers
5 Option tray

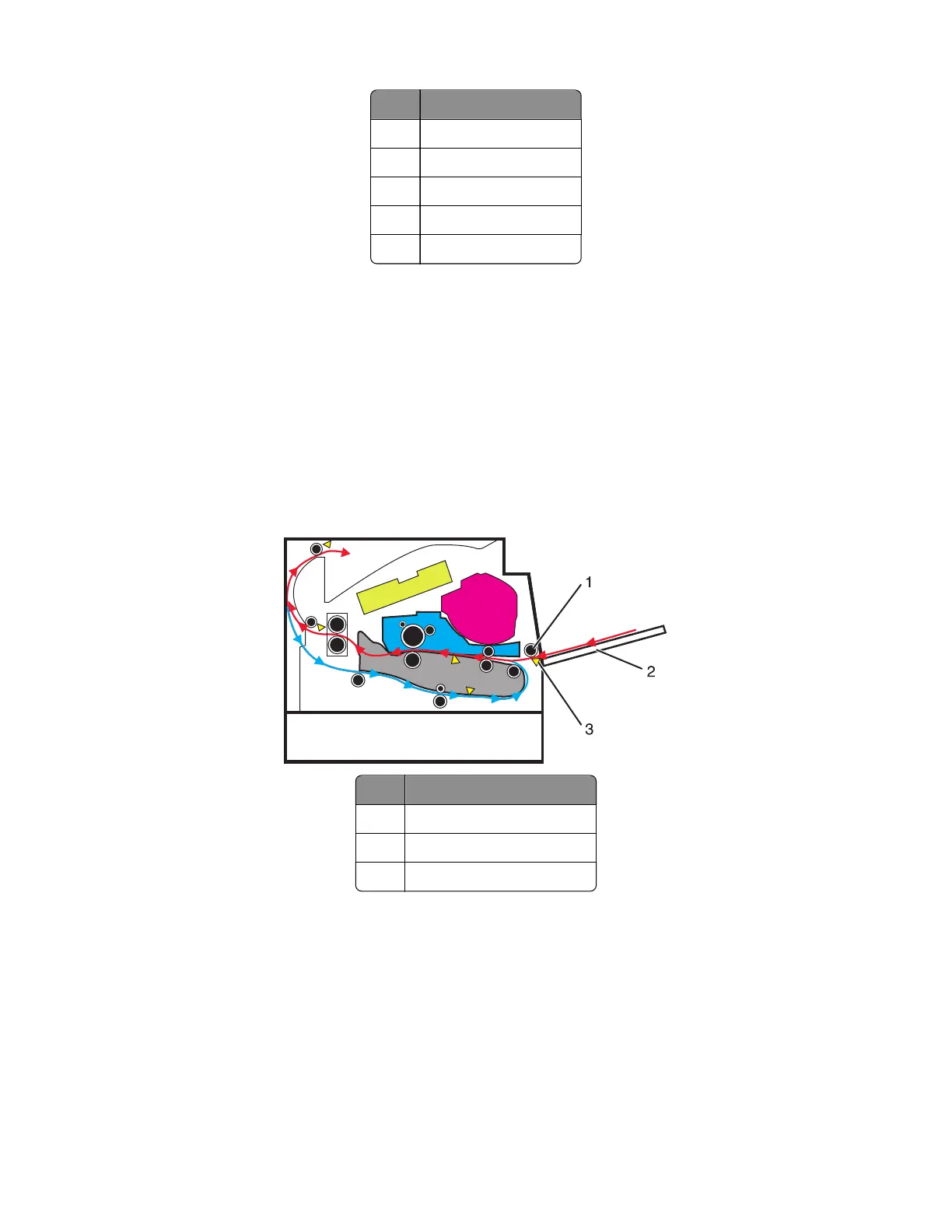

Multipurpose feeder (MPF)
The driving force from the main drive motor is transmitted through the MPF gearbox. When the MPF solenoid
activates, it allows the MPF sector gear linked to the MPF gearbox to rotate. The MPF pick roll shaft is connected
to the MPF sector gear.
The MPF can be accessed by opening the MPF tray on the front door. In an MPF paper feed, the MPF paper
present sensor detects the media. The instant the MPF pick roll shaft rotates, the cams on each end of the shaft
disengage the MPF tray. Each side of the tray is connected to the front access cover by springs. When
disengaged from the shaft, the springs pull the tray causing the media to come into contact with the MPF pick
roller. At the same time the pick roller rotates, pushing the media to the separator pad. The media does not
pass through the secondary input roller, but directly to the
first
input roller.
#Part
1 MPF pick roller
2 MPF tray
3 MPF paper present sensor
Simplex printing
Situated along the first input roller, is the deskew shutter. It subjects the media to a deskewing force based on
the media width. The direction of the force is transverse to the feed direction. The leading edge of the media
then passes though the input sensor.
After the edge of the media is aligned, the first input roller feeds the media to the transfer roll for toner transfer.
At this point, the toner image is already on the photoconductor drum surface. As the media passes between
the photoconductor drum and transfer roll, the toner image is transferred to the media.
4514-6xx
Theory of operation
366

Lexmark MS517dn Specifications

General

Cables included	AC
Cartridge(s) included	Yes
Included cartridge capacity (black)	3000 pages
Color	No
Print technology	Laser
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	42 ppm
Duplex print speed (black, normal quality, A4/US Letter)	18 ppm
Processor cores	2
Noise level (idle)	15 dB
Processor frequency	800 MHz
Maximum internal memory	1280 MB
Sound pressure level (printing)	55 dB
Sound pressure level (duplex printing)	54 dB
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal, Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	2000 sheets
Maximum number of input trays	5
Multi-Purpose tray input capacity	100 sheets
USB connector	USB Type-B
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi	-
Cabling technology	10/100/1000Base-T(X)
Security algorithms	LEAP, MD5, MSCHAPv2, PEAP, SNMPv3, SSL/TLS, TTLS
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk
Supported network protocols (IPv6)	TCP/IP IPv6, TCP, UDP
Package depth	472 mm
Package width	432 mm
Package height	380 mm
Package weight	16700 g
Power consumption (off)	0.5 W
Power consumption (ready)	7 W
Power consumption (printing)	600 W
Energy Star Typical Electricity Consumption (TEC)	2.1 kWh/week
Display	LCD
Certification	ENERGY STAR, Blue Angel RAL-UZ-171, ICES-003 Class B, BSMI Class B, VCCI Class B, US FDA, UL 60950-1, FCC Class B, cUL CAN/CSA-C22.2 60950-1, NOM, CB EN/IEC 60950-1, CB EN/IEC 60825-1, CE DoC (EN 62301 Class B, EN 62311, CE EN/IEC 60950-1, CE EN/IEC 60825-1, EN 61000-3, EN 55022 Class B, EuP, EN 55024, UL), EFTA (CE), KCC, CCC, CECP, CEL, C-tick DoC, UL-AR, KC mark, UL GS mark, EC 1275, MET-I, ISO 532B, ECMA-370, TED, GOST-R, SII, TER
Product color	Gray
Display diagonal	2.4 \
Printing colors	Black
Country of origin	China
Maximum duty cycle	120000 pages per month
Recommended duty cycle	1500 - 14000 pages per month
Page description languages	Microsoft XPS, PCL 5e, PCL 6, PDF 1.7, PPDS, PostScript 3
Sustainability certificates	Blue Angel, ENERGY STAR
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Authentication method	802.1x

Weight and Dimensions

Depth	382 mm
Width	399 mm
Height	263 mm
