Separator roll assembly removal

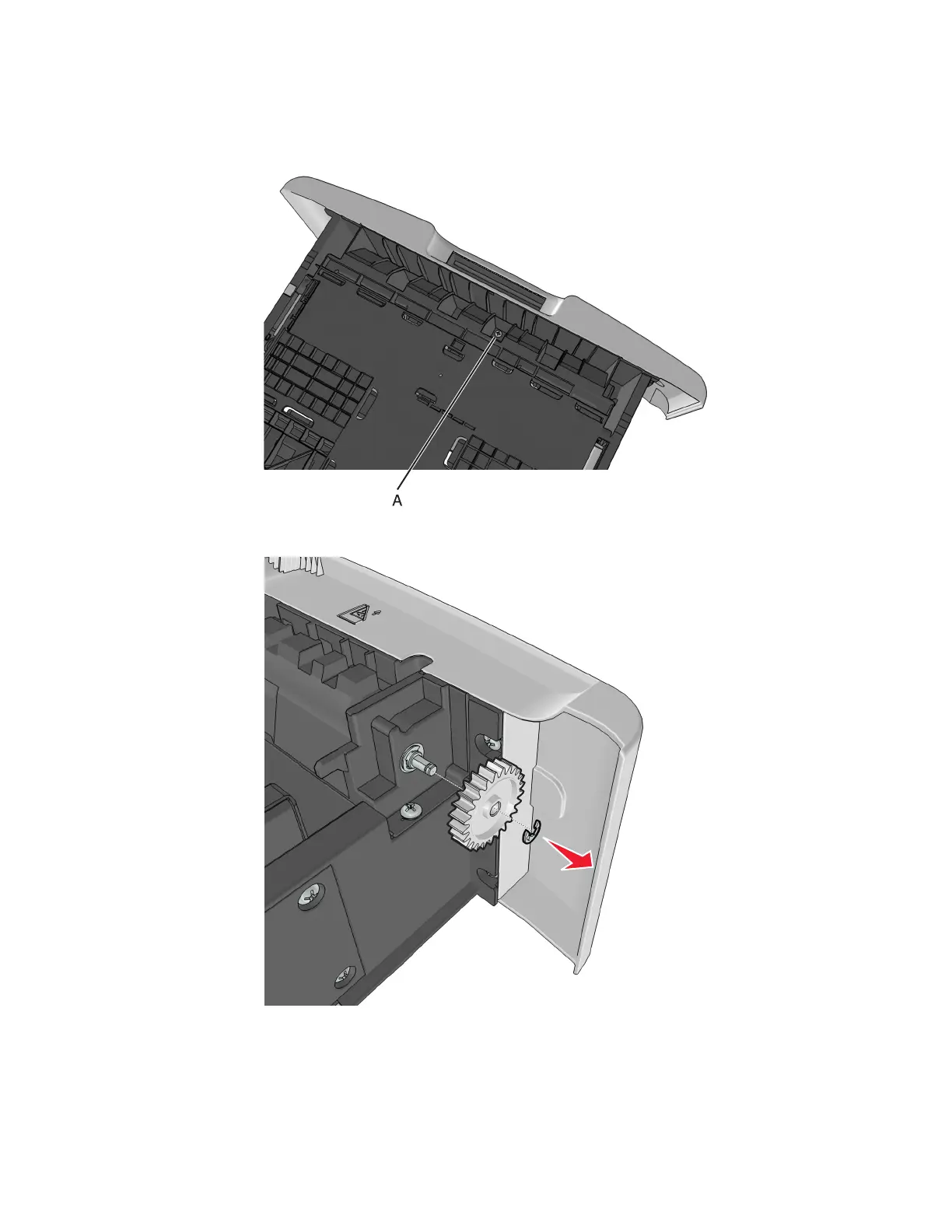

1 Remove the screw (A) from under the tray insert.
2 Remove the E-clip, and then remove the gear.
4514-6xx
Parts removal
320
