MPF pick roller cover removal

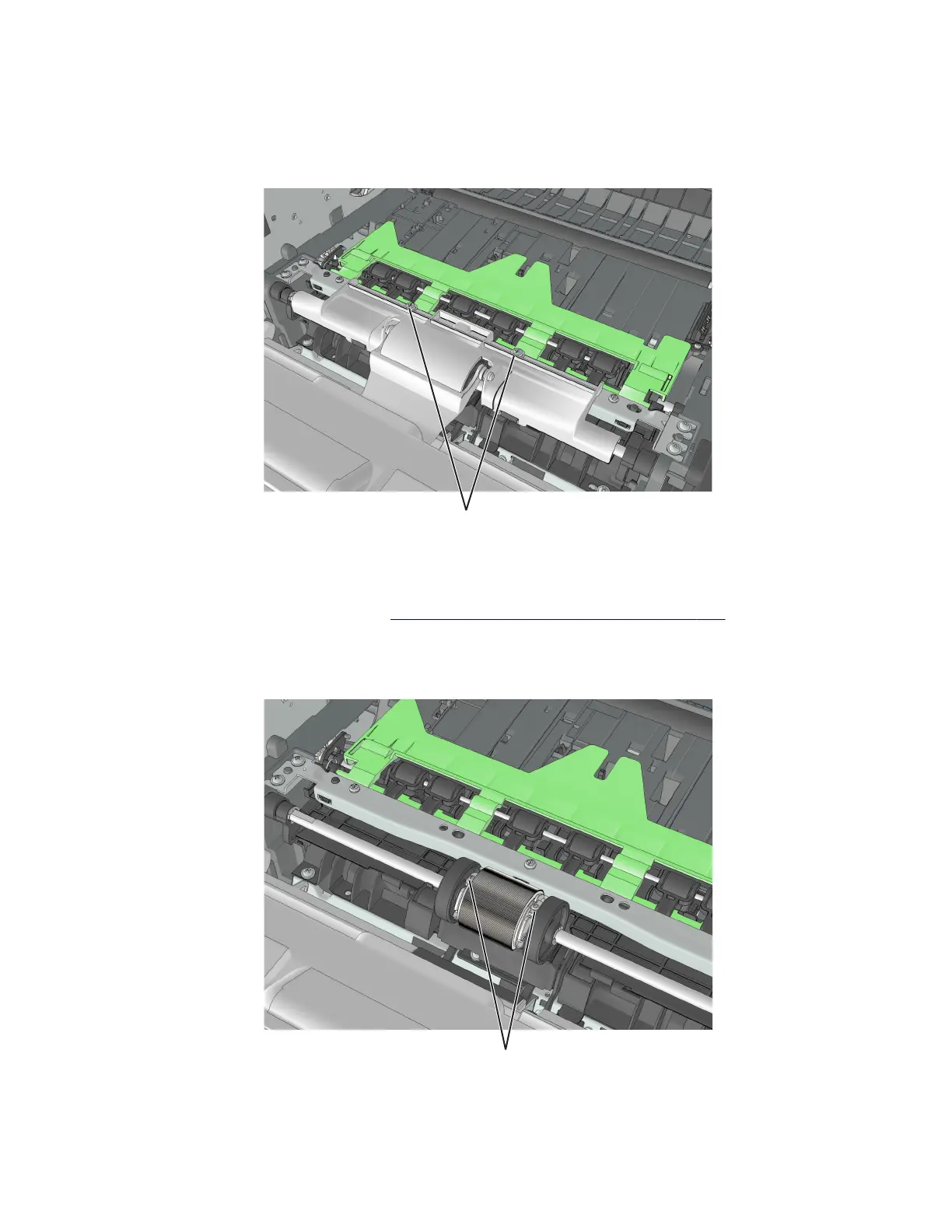

1 Open the front door.
2 Remove the two screws (A), and then remove the MPF pick roller cover.
A
MPF pick roller removal
1 Remove the MPF pick roller cover. See “MPF pick roller cover removal” on page 279.
2 Remove the two screws (A).
Note: Use a #0 Phillips screwdriver.
A
3 Pull the MPF pick roller outward to remove.
4514-6xx
