Lexmark MX61 SERIES - Diverter Spring Removal

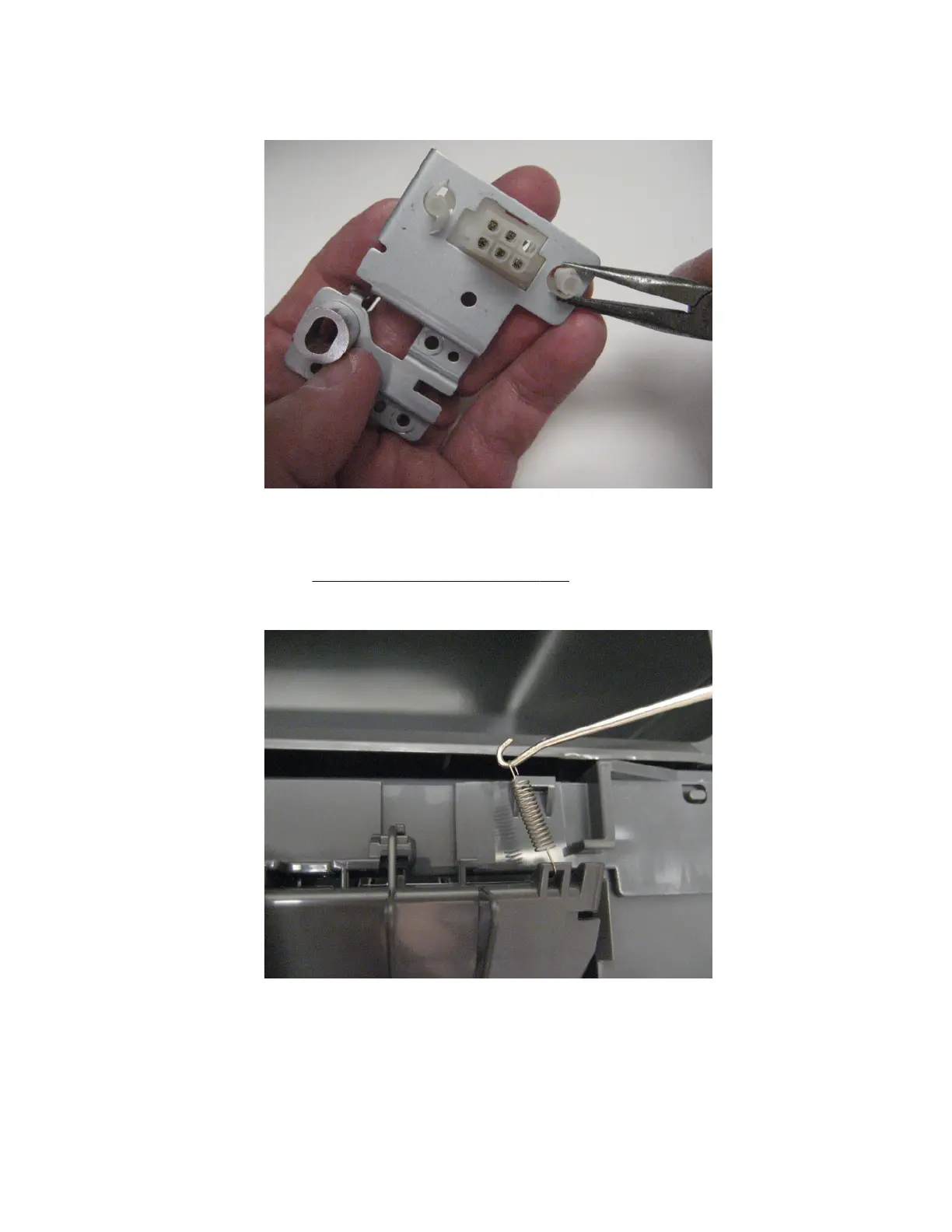

7 Using a pair of pliers, squeeze the nylon mounts to dislodge the stapler connector, and remove the stapler
cable.
Diverter spring removal
1 Remove the rear cover. See “Rear cover removal” on page 343.
2 Using a spring hook, detach the diverter spring from the diverter and from the redrive.
7016
Repair information
349
