Sensor (stapler bin full receive) removal
1 Remove the right cover. See “Stapler right cover removal” on page 384.
2 Remove the left cover. See “Stapler left cover removal” on page 385.
3 Remove the rear cover. See “Stapler rear cover removal” on page 393.
4 Remove the stapler service cover. See “Stapler service cover removal” on page 397.
5 Disconnect the sensor cable CN18 from the controller card.

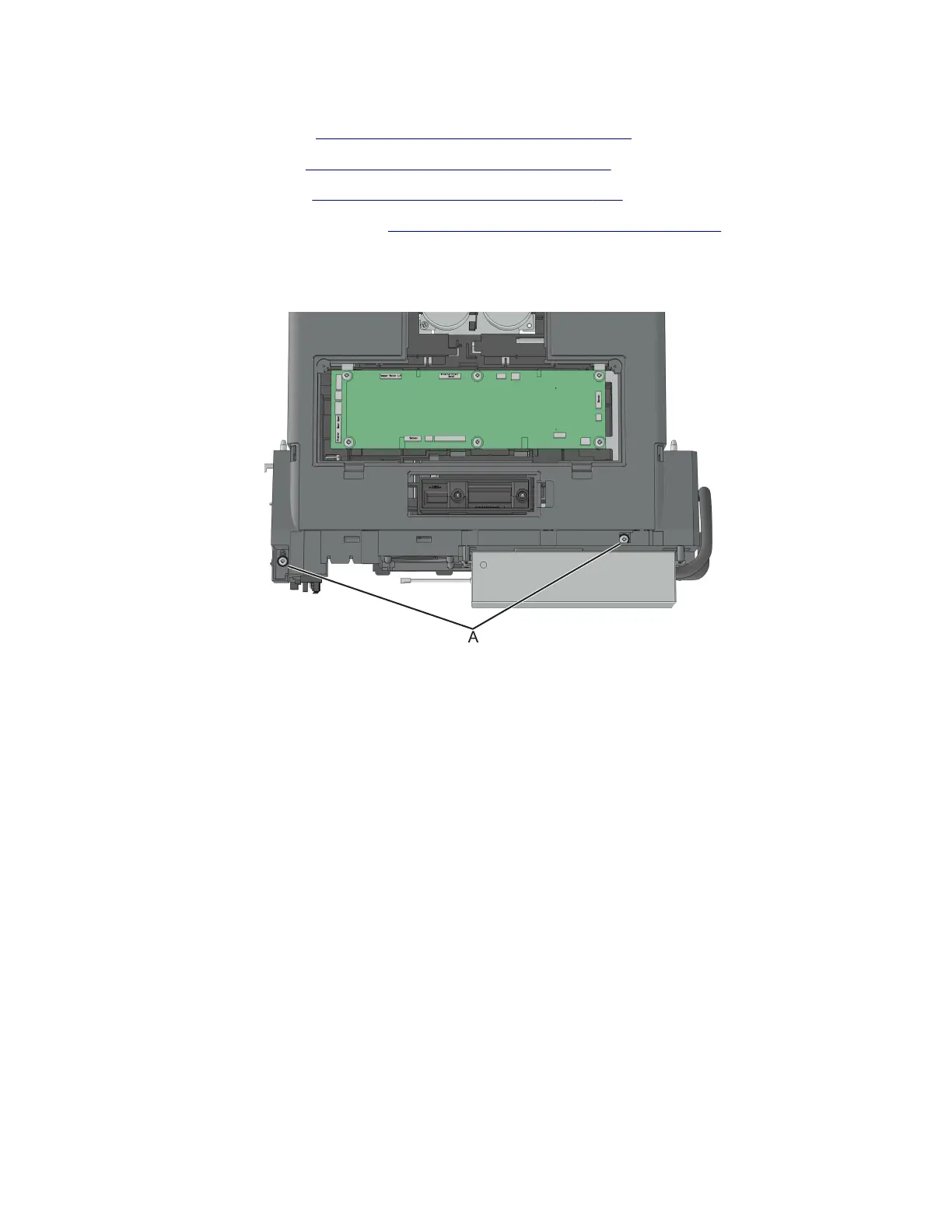

6 Remove the two screws (A) from the top cover.
