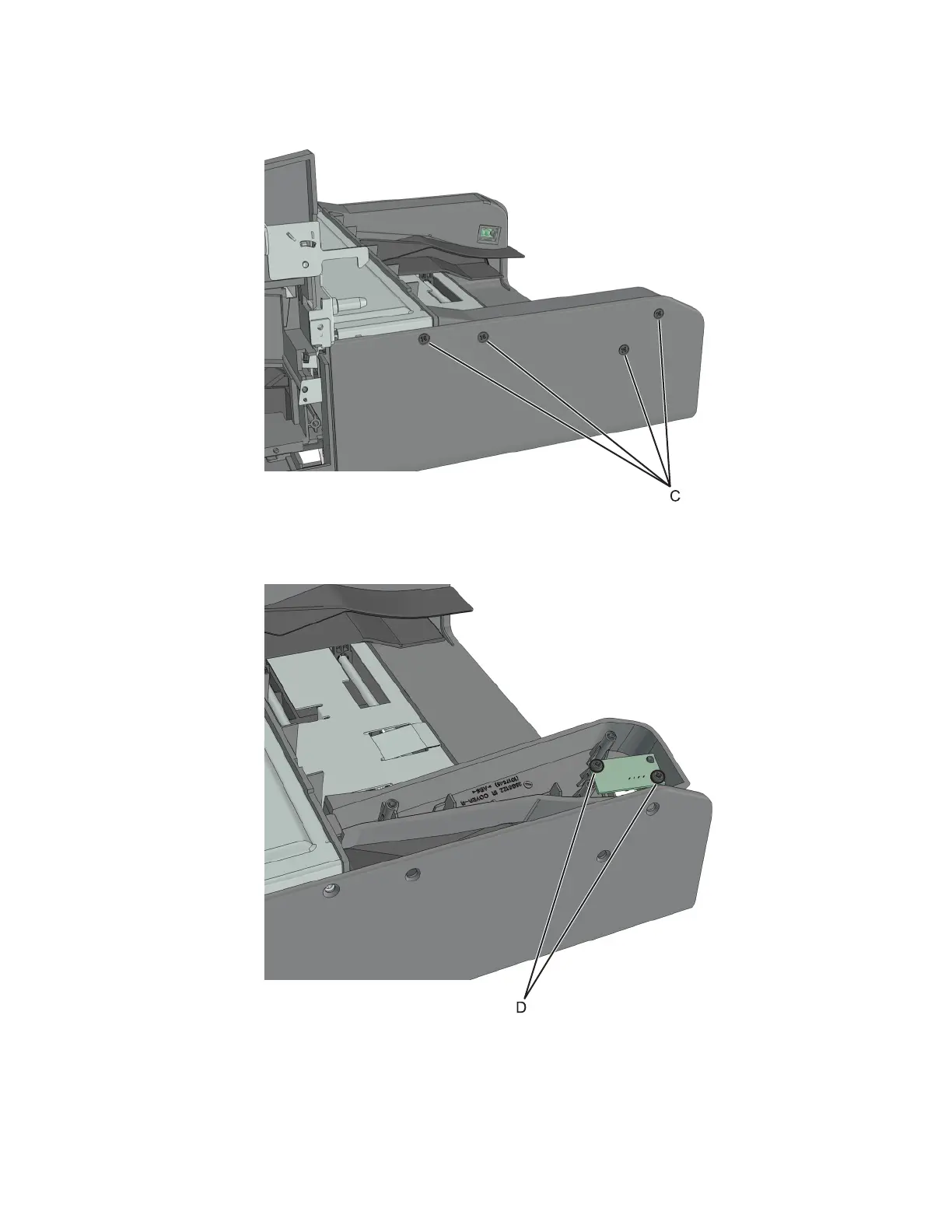

8 Remove the four screws (C) from the right side of the cover.
9 To access the sensor, release the sensor cover from the right side of the top cover.
10 Remove the two screws (D) securing the sensor.
11 Route the sensor cable
o
the stapler, then remove the sensor.
Note: Pay attention to the original routing of the cables.
7016
Repair information
