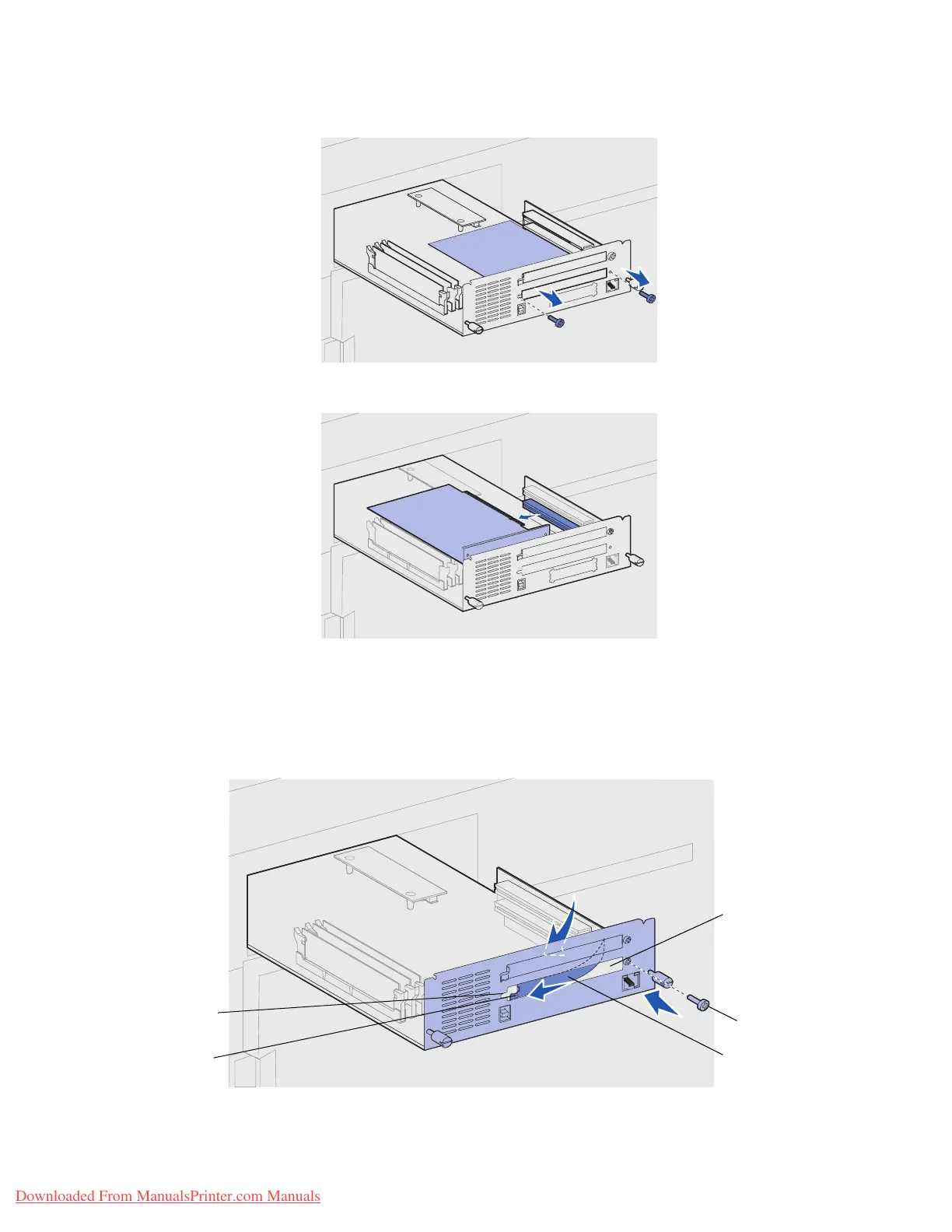

3 Remove the screws that secure the card to the metal plate.
4 Gently pull the card out of the connector.
5 If you saved the metal plate that covers the connector slot and you do not plan to insert
another card, attach the plate:
a Slide the clip side of the plate in first making sure the clip end covers up the groove.
b Use one of the screws to secure the other end of the metal plate to the system board.
Metal plate
Connector slot
Screw
Clip
Groove
