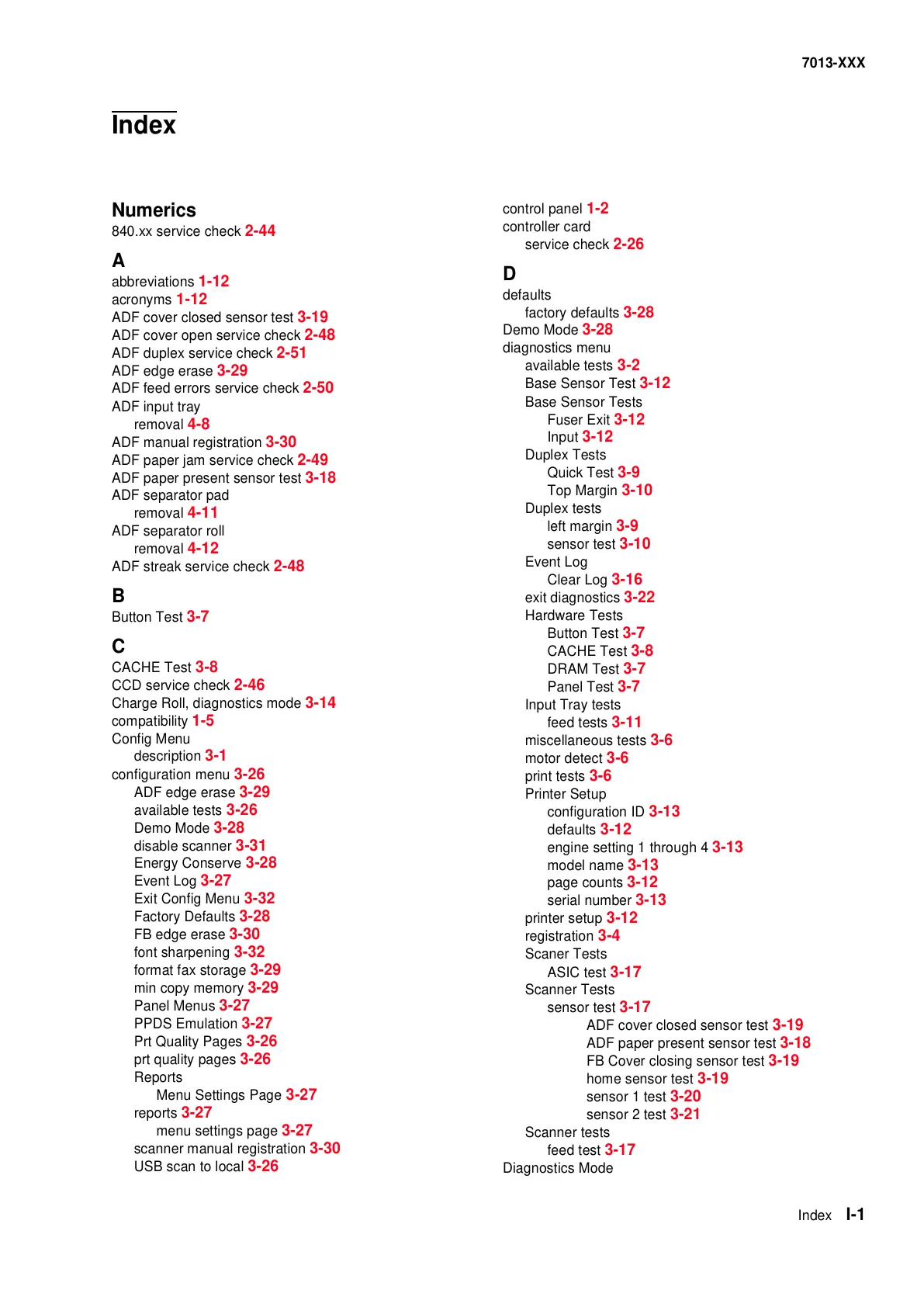

Lexmark X364dn Service Manual

Index I-1
7013-XXX
Index
Numerics
840.xx service check 2-44
A
abbreviations 1-12
acronyms 1-12
ADF cover closed sensor test 3-19
ADF cover open service check 2-48
ADF duplex service check 2-51
ADF edge erase 3-29
ADF feed errors service check 2-50
ADF input tray
removal
4-8
ADF manual registration 3-30
ADF paper jam service check 2-49
ADF paper present sensor test 3-18
ADF separator pad
removal
4-11
ADF separator roll
removal
4-12
ADF streak service check 2-48
B
Button Test 3-7
C
CACHE Test 3-8
CCD service check 2-46
Charge Roll, diagnostics mode 3-14
compatibility 1-5
Config Menu
description
3-1
configuration menu 3-26
ADF edge erase 3-29
available tests 3-26
Demo Mode 3-28
disable scanner 3-31
Energy Conserve 3-28
Event Log 3-27
Exit Config Menu 3-32
Factory Defaults 3-28
FB edge erase 3-30
font sharpening 3-32
format fax storage 3-29
min copy memory 3-29
Panel Menus 3-27
PPDS Emulation 3-27
Prt Quality Pages 3-26
prt quality pages 3-26
Reports
Menu Settings Page
3-27
reports 3-27
menu settings page 3-27
scanner manual registration 3-30
USB scan to local 3-26
control panel 1-2
controller card
service check
2-26
D
defaults
factory defaults
3-28
Demo Mode 3-28
diagnostics menu
available tests
3-2
Base Sensor Test 3-12
Base Sensor Tests
Fuser Exit
3-12
Input 3-12
Duplex Tests
Quick Test
3-9
Top Margin 3-10
Duplex tests
left margin
3-9
sensor test 3-10
Event Log
Clear Log
3-16
exit diagnostics 3-22
Hardware Tests
Button Test
3-7
CACHE Test 3-8
DRAM Test 3-7
Panel Test 3-7
Input Tray tests
feed tests
3-11
miscellaneous tests 3-6
motor detect 3-6
print tests 3-6
Printer Setup
configuration ID
3-13
defaults 3-12
engine setting 1 through 4 3-13
model name 3-13
page counts 3-12
serial number 3-13
printer setup 3-12
registration 3-4
Scaner Tests
ASIC test
3-17
Scanner Tests
sensor test
3-17
ADF cover closed sensor test 3-19
ADF paper present sensor test 3-18
FB Cover closing sensor test 3-19
home sensor test 3-19
sensor 1 test 3-20
sensor 2 test 3-21
Scanner tests
feed test
3-17
Diagnostics Mode
All manuals and user guides at all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
