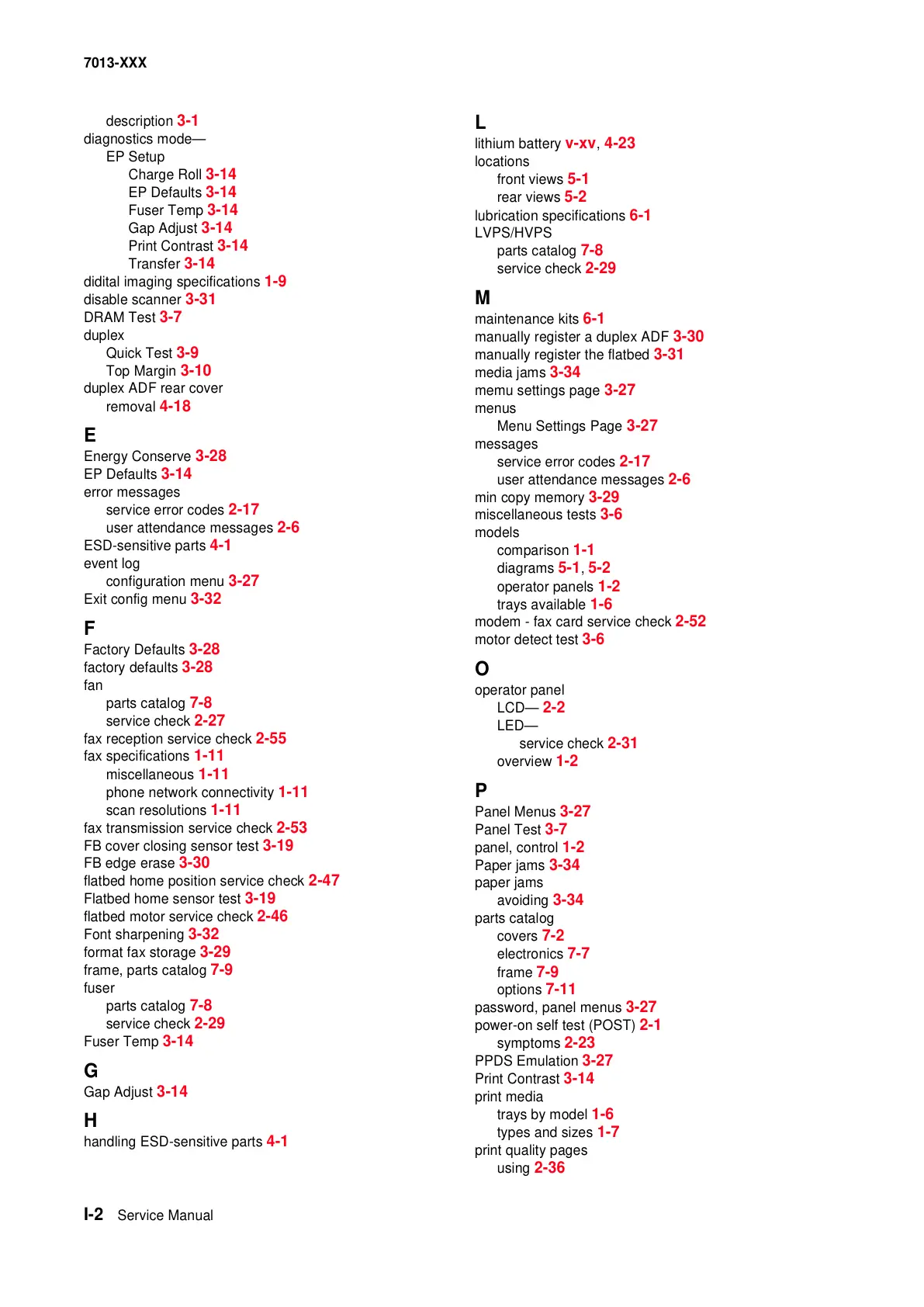

Lexmark X364dn Service Manual

I-2 Service Manual
7013-XXX
description
3-1
diagnostics mode—
EP Setup
Charge Roll
3-14
EP Defaults 3-14
Fuser Temp 3-14
Gap Adjust 3-14
Print Contrast 3-14
Transfer 3-14
didital imaging specifications 1-9
disable scanner 3-31
DRAM Test 3-7
duplex
Quick Test
3-9
Top Margin 3-10
duplex ADF rear cover
removal
4-18
E
Energy Conserve 3-28
EP Defaults 3-14
error messages
service error codes
2-17
user attendance messages 2-6
ESD-sensitive parts 4-1
event log
configuration menu
3-27
Exit config menu 3-32
F
Factory Defaults 3-28
factory defaults 3-28
fan
parts catalog
7-8
service check 2-27
fax reception service check 2-55
fax specifications 1-11
miscellaneous 1-11
phone network connectivity 1-11
scan resolutions 1-11
fax transmission service check 2-53
FB cover closing sensor test 3-19
FB edge erase 3-30
flatbed home position service check 2-47
Flatbed home sensor test 3-19
flatbed motor service check 2-46
Font sharpening 3-32
format fax storage 3-29
frame, parts catalog 7-9
fuser
parts catalog
7-8
service check 2-29
Fuser Temp 3-14
G
Gap Adjust 3-14
H
handling ESD-sensitive parts 4-1
L
lithium battery v-xv, 4-23
locations
front views
5-1
rear views 5-2
lubrication specifications 6-1
LVPS/HVPS
parts catalog
7-8
service check 2-29
M
maintenance kits 6-1
manually register a duplex ADF 3-30
manually register the flatbed 3-31
media jams 3-34
memu settings page 3-27
menus
Menu Settings Page
3-27
messages
service error codes
2-17
user attendance messages 2-6
min copy memory 3-29
miscellaneous tests 3-6
models
comparison
1-1
diagrams 5-1, 5-2
operator panels 1-2
trays available 1-6
modem - fax card service check 2-52
motor detect test 3-6
O
operator panel
LCD—
2-2
LED—
service check
2-31
overview 1-2
P
Panel Menus 3-27
Panel Test 3-7
panel, control 1-2
Paper jams 3-34
paper jams
avoiding
3-34
parts catalog
covers
7-2
electronics 7-7
frame 7-9
options 7-11
password, panel menus 3-27
power-on self test (POST) 2-1
symptoms 2-23
PPDS Emulation 3-27
Print Contrast 3-14
print media
trays by model
1-6
types and sizes 1-7
print quality pages
using
2-36
All manuals and user guides at all-guides.com

Lexmark X364dn Specifications

General

Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	33 ppm
Scanner type	Flatbed scanner
Duplex scanning	Yes
Copier resize	25 - 400 %
Copy speed (black, normal quality, A4)	32 cpm
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	300 sheets
Maximum input capacity	850 sheets
Multi-Purpose tray input capacity	50 sheets
Font styles	3 of 9 scalable PCL 5e, 2 PCL bitmap fonts, 39 scalable PPDS, 5 PPDS bitmap fonts, 84 scalable PCL, OCR-A, OCR-B scalable PCL 5e, 91 scalable PostScript
Dimensions (WxDxH)	428 x 405 x 471 mm
Networking features	10/100BaseTX
All-in-one functions	Copy, Fax, Scan
Standard input trays	2
Compatible operating systems	Apple Mac OS X (10.2 or later) Apple Mac OS 9.x Microsoft Windows 2000 Microsoft Windows XP Microsoft Windows Server 2003 Microsoft Windows XP x64 Microsoft Windows Server 2003 x64 Microsoft Windows Vista Microsoft Windows Vista x64 Microsoft Windows Server 2008 Microsoft Windows Server 2008 x64 Linpus Linux Desktop 9.2, 9.3 Red Hat Enterprise Linux WS 3.0, 4.0, 5.0 SUSE Linux Enterprise Server 8.0, 9.0, 10.0 SUSE Linux Enterprise Desktop 10 openSUSE 10.2, 10.3, 11.0 Linspire Linux 6.0 Debian GNU/Linux 4.0 Red Flag Linux Desktop 5.0, 6.0 Ubuntu 7.10 Ubuntu 8.04 LTS Novell Open Enterprise Server Novell NetWare 5.x, 6.x Sun Solaris SPARC 8, 9, 10 Sun Solaris x86 10 HP-UX 11.11, 11.23, 11.31 IBM AIX 5.2, 5.3, 6.1
Package dimensions (W x D x H)	20 x 18.62 x 22.44 \
Internal memory	128 MB
Processor frequency	266 MHz
Sound power level (standby)	27 dB
Sound pressure level (copying)	54 dB
Sound pressure level (scanning)	51 dB
Display diagonal	2 \
Market positioning	Business
Envelopes sizes	7 3/4, 9, 10, B5, C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	TCP/IP IPv4, AppleTalk, TCP/IP IPv6, TCP, UDP
Standard interfaces	Ethernet
Maximum duty cycle	80000 pages per month
Page description languages	PDF 1.6, PPDS
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Certification	Energy Star, U.S. FDA, FCC Class B, UL 60950-1, IEC 60320-1, ECMA 74:8, CAN/CSA-C22.2 60950-1-03, ICES-003 Class B, VCCI Class B, BSMI Class B, CE Class B, CB IEC 60950-1, IEC 60825-1, IEC 61000-3-2, IEC 61000-3-3, EN 55022 Class B, EN 55024, CISPR 22 Class B, IEC 60320, GS (TÜV), EN 60825-1, ACMA A-tick mark Class B, AS/NZS 60950-1, EK Mark, K60950, KCC MIC Mark, CCC Class B, UL AR, CS, TÜV Rh, PSB-SS 337, CNS 13438, CNS 14336

Weight and Dimensions

Weight	20000 g
