LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
23
Description
0°
270°
90°
180°
DRIVE/BEARING
connection
TMS
connection
225°
0°
90°
DRIVE/BEARING
connection
Cable DRIVE/BEARING
Cable Converter cable outlet Pump cable outlet
length DRIVE/BEARING X20 DRIVE/BEARING X23 PK X24 Part No.
1.5 m bended 225° straight straight 400036V0001
1.5 m straight straight straight 400036V0007
3 m straight bended 180° straight 400036V0006
3 m bended 225° straight straight 400036V0008
3 m straight bended 270° straight 400036V0009
5 m bended 225° straight straight 400036V0004
5 m straight straight straight 400036V0010
8 m bended 225° straight straight 400036V0005
10 m bended 225° straight straight 400036V0002
20 m bended 225° straight straight 400036V0003
23 m bended 225° straight straight 400036V0012
30 m bended 225° straight straight 400036V0011
Cable TMS (for CT versions only)
Cable Converter cable outlet Pump cable outlet
length TMS X21 TMS X30 Heater X31 Part No.
1.5 m bended 225° straight bended 180° 400037V0001
1.5 m straight straight bended 180° 400037V0007
3 m bended 225° straight bended 180° 400037V0008
5 m bended 225° straight bended 180° 400037V0004
8 m bended 225° straight bended 180° 400037V0005
10 m bended 225° straight bended 180° 400037V0002
20 m bended 225° straight bended 180° 400037V0003
Cable Purge/Vent (for optional purge vent valve Part No. 121 33 only)
Cable Converter cable outlet Pump cable outlet
length TMS X21 Purge Vent Part No.
1.5 m straight bended bended 400038V0007
3 m bended 225° bended bended 400038V0006
10 m bended 225° bended bended 400038V0002
20 m straight bended bended 400038V0009
180°

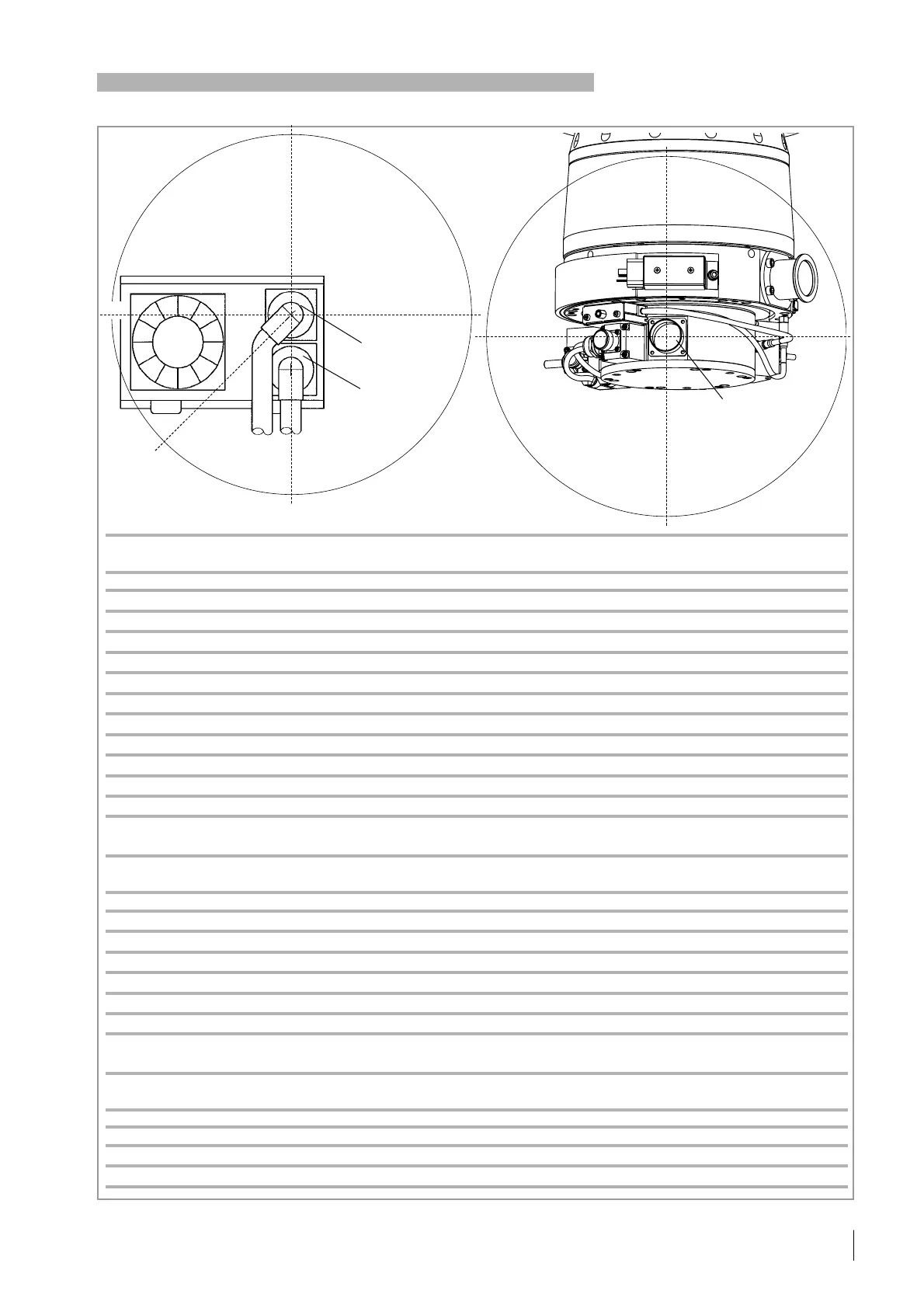

Fig. 8 Overview and ordering data for connecting cables
