LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
34
Installation

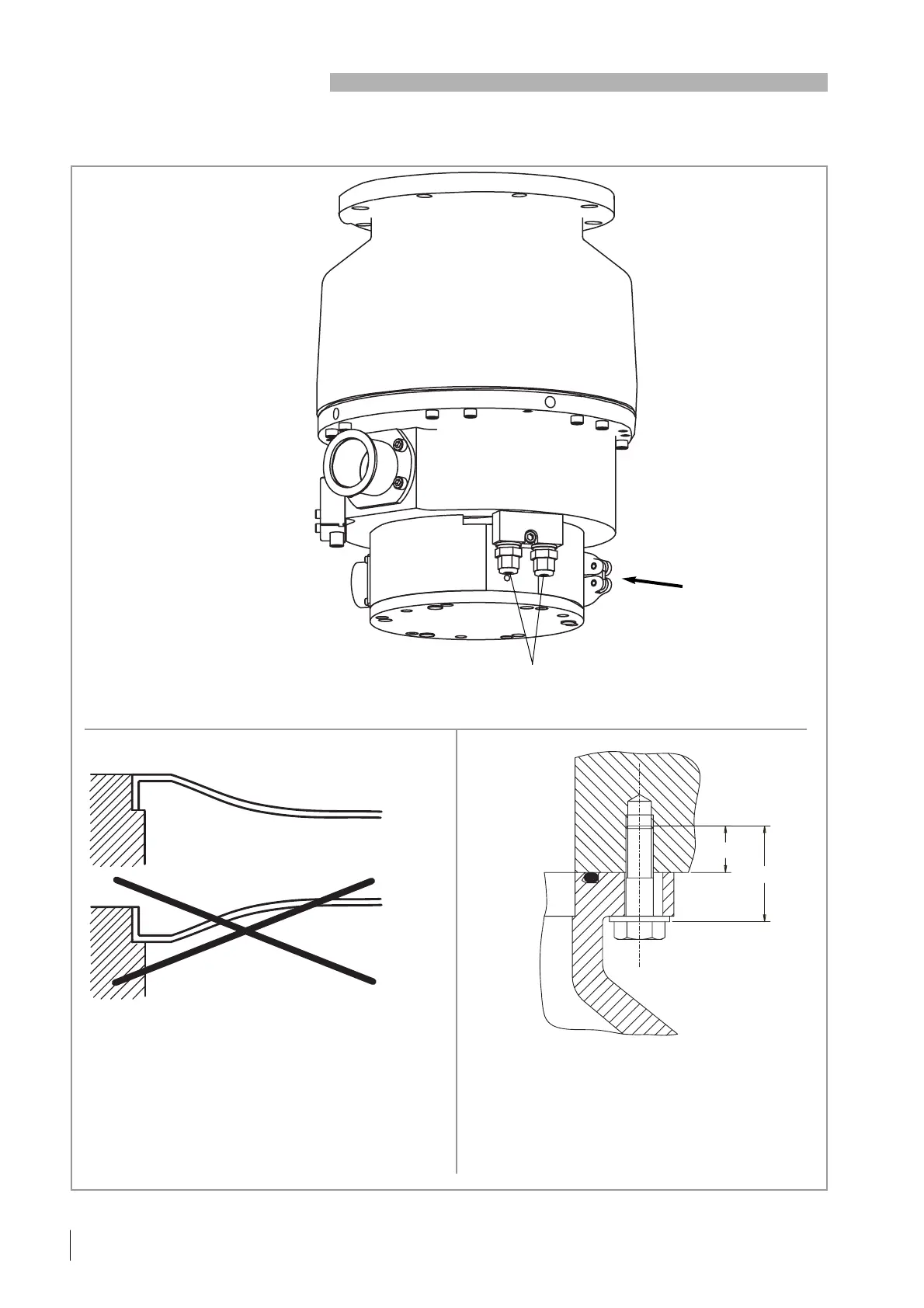

Fig. 20 Connection elements, installing the splinter guard and fixing the intake flange for the MAG W 830 C
Forevacuum flange
Purge gas in
High-vacuum flange
DRIVE/BEARING
connection
PK
connection
Cooling water
connection
Correct
Wrong
35 mm
17 mm
8 bolts M10 x 35
Installation torque per bolt 35
+5
Nm
Bolt quality:12.9 according to EN ISO 898-1
with coating
0,2% yield strength > 1080 N/mm
2
MAG W 830 C
Caution
Install the splinter guard as shown. Installing the
splinter guard upside down may lead to contact
between splinter guard and rotor during fast
venting of the pump.
2 Installation

LEYBOLD MAG Series Specifications

General

Applications	Laboratory, medical, and industrial applications
Drive	Magnetic drive
Sealing	Hermetically sealed
Flow Rate	Varies depending on the model, ranging from a few liters per minute (LPM) to several tens of LPM. Consult specific model datasheets for precise values.
Max Pressure	Varies by model (typically up to 10 bar)
Power Supply	Typically available in various AC voltages (e.g., 115V, 230V) and frequencies (50/60 Hz)
Power Consumption	Varies depending on the model, ranging from a few watts to several hundred watts. Consult specific model datasheets for precise values.
Operating Temperature	Typically 0°C to +60°C
Weight	Varies depending on the model, ranging from a few kilograms to several kilograms. Consult specific model datasheets for precise values.
Dimensions	Varies depending on the model. Consult specific model datasheets for precise dimensions.
Materials	Stainless steel
