LEYBOLD MAG Series User Manual

GA05141_0702 - 09/2004
73
Operation
Significance of the lamps
COM (green)
Is lit if communication has been established via the interface.
STATUS (green/red)
Red, steady light = Failure
Red, flashing = Warning
Green, flashing (slow) = Start delay, Acceleration
Green, flashing (fast) = Deceleration, Kinetic buffering
Green, steady light = Normal operation / Stand-by
MAIN (green)
This lamp is lit if the power is switched-on, and all of the supply voltages for
operation are available.
Flashes when the power fails as long as the power supply voltages in the
converter are maintained by the kinetic buffering.
3.7 Remote control
The pump can be switched-on or off using the START/ STOP keys or via
control connector X14.
■ X14.11 not connected = Start/Stop via the operator control panel
■ Jumper X14.11-X14.10 = Start/Stop via control input X14.12
Remote
Start
Masse
X1.1
X1.2
X1.3
Switch closed: START
Switch open: STOP
Remote X14.11
Start X14.12
GND X14.10

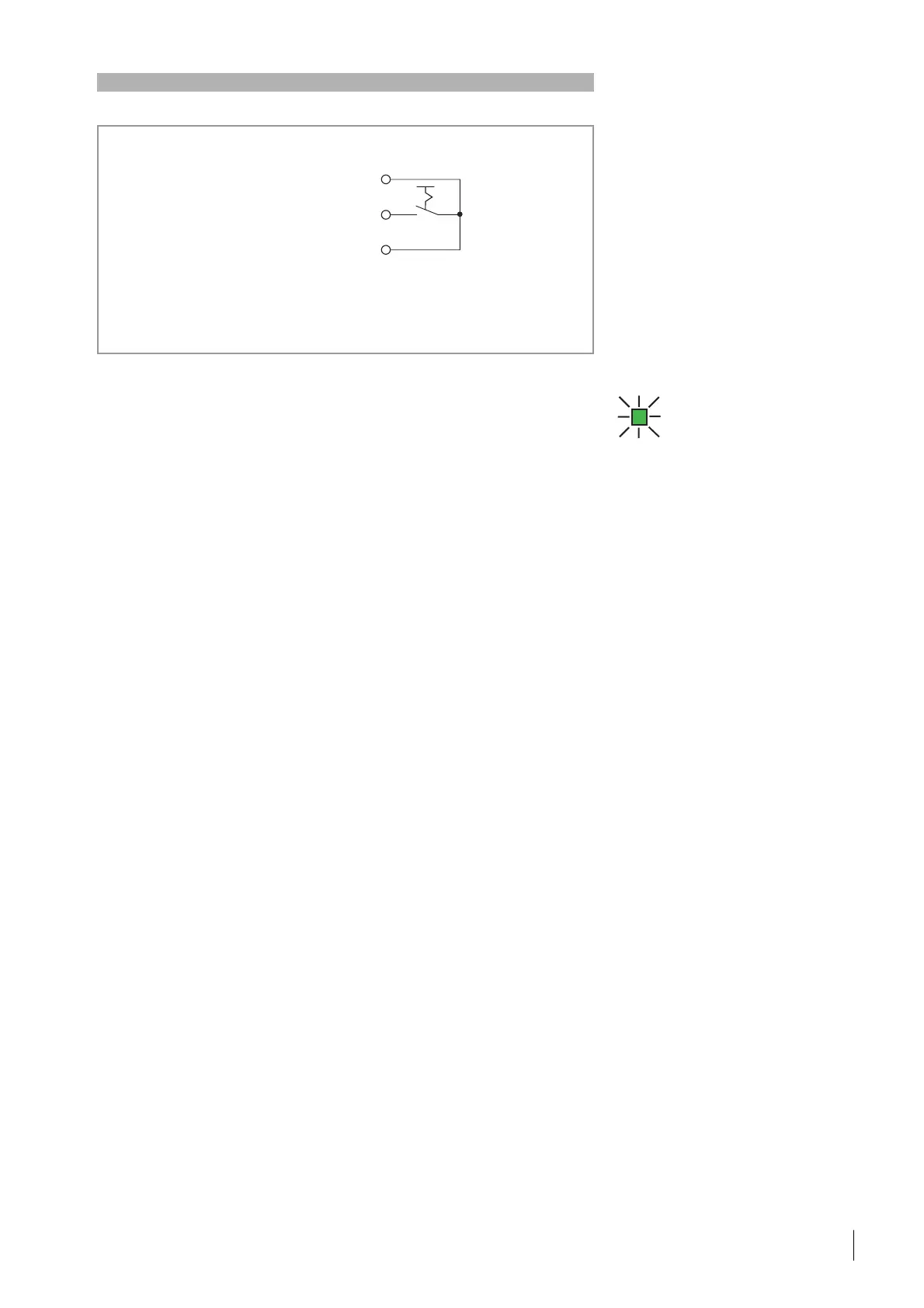

Fig. 52 Connecting-up example remote control
