Plug-in control

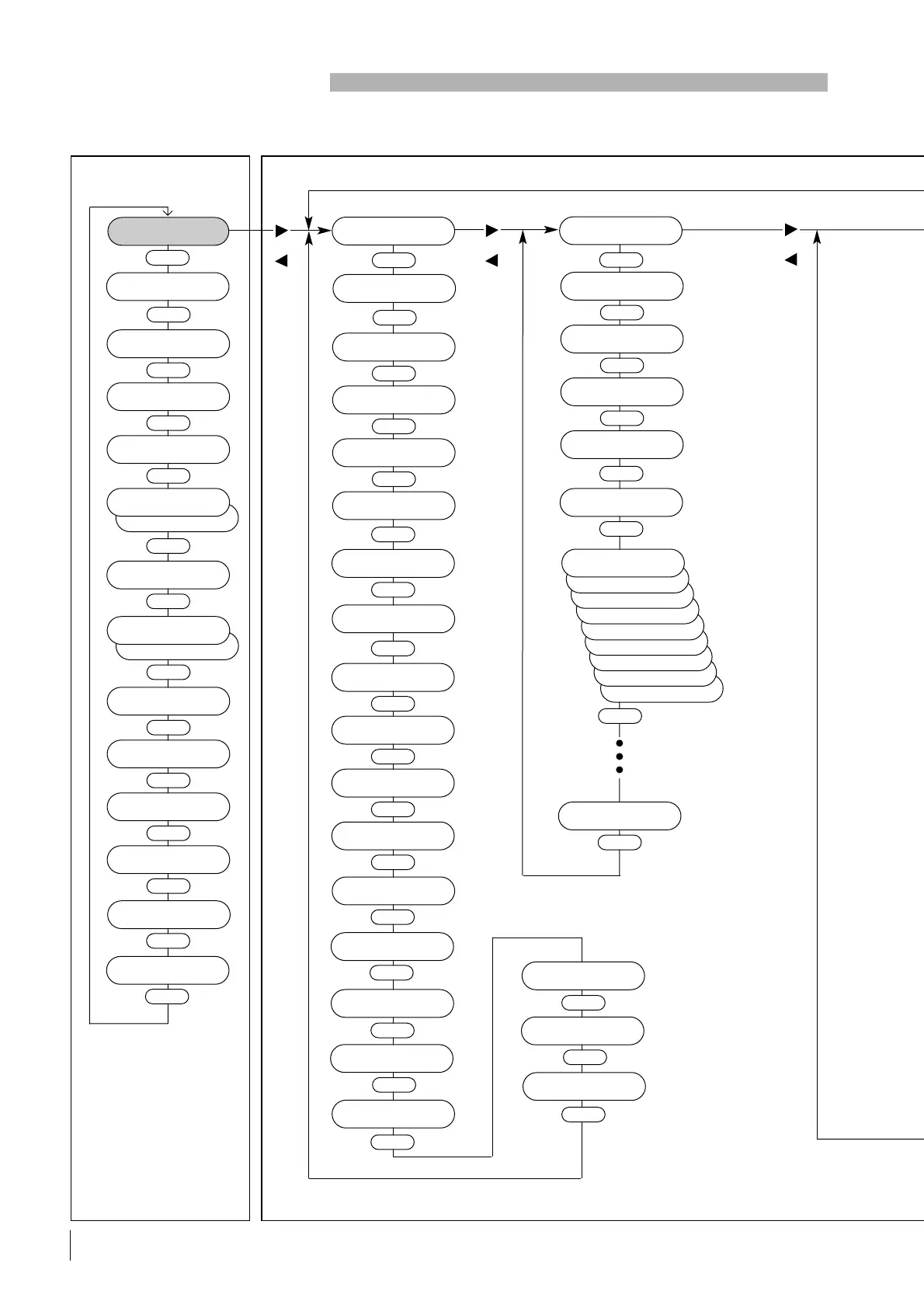

3.10.9 Total view of the menu
Basic menu
or
or
or
Ready
0.0 A 0 Hz
Enter
Enter
Motor Temp.
50 °C
Enter
Converter Temp.
40 °C
Enter
Bearing Temp.
50 °C
Enter
Actual PVW 13
10%
Enter
Actual PVW 24
10%
Enter
Actual PZ 12
5%
Enter
Power
400 W
Enter
Not Active
Actual Value TMS
70 °C
Not Active
Cooling Temp.
38 °C
Enter
Analog Input 1
30.0%
Enter
T_A
68 °C
Enter
Enter
Analog Input 2
1.5%
Enter
Freq. Setpoint
600 Hz
Enter
Product Name
MD Digital
Enter
Conv. Cat.-No.
99999999999
Enter
Conv. Serial-No.
99999999999
Enter
Conv. HW-Rev.
6.55.35
Enter
Conv. Op. Hours
167772.16
Enter
Pump Cat.-No.
99999999999
Enter
Pump Ser.-No.
99999999999
Enter
Conv. SR SW-Rev.
6.55.35
Conv.AMB Data-R.
1.01
Enter
Pump Name
MAG W 1500 CT
Enter
Conv.AMB SW-Rev.
6.55.35
Enter
Enter
Pump Op. Hours
16777 (40000)
Enter
System Info
Start Cycles
1234
Enter
Standby Cycles
1234
Enter
Operation Cycles
1234
Enter
Enter
Real-Time Clock
99.12.31 23:59
PK SW-Rev.
6.55.35
Enter
PK HW-Rev.
6.55.35
Enter
PK Data Rev.
6.55.35
Enter
P11: 46
P7: 73
P127: 0
Enter
Failure Total
65535
Enter
Failure TMS
65535
Enter
Failure Overload
65535
Enter
Fail. Temp.Bear.
65535
Failure Mains
65535
Enter
Failure Storage
Enter
P123: 0
P125: 0
300 Hz
167772.16 h
99.12.31 00:00
F. Storage 0 10
Bearing Temp.
Enter
F. Storage 8 10
Bearing Temp.
Enter
