GA05141_0702 - 09/2004
81
Plug-in control

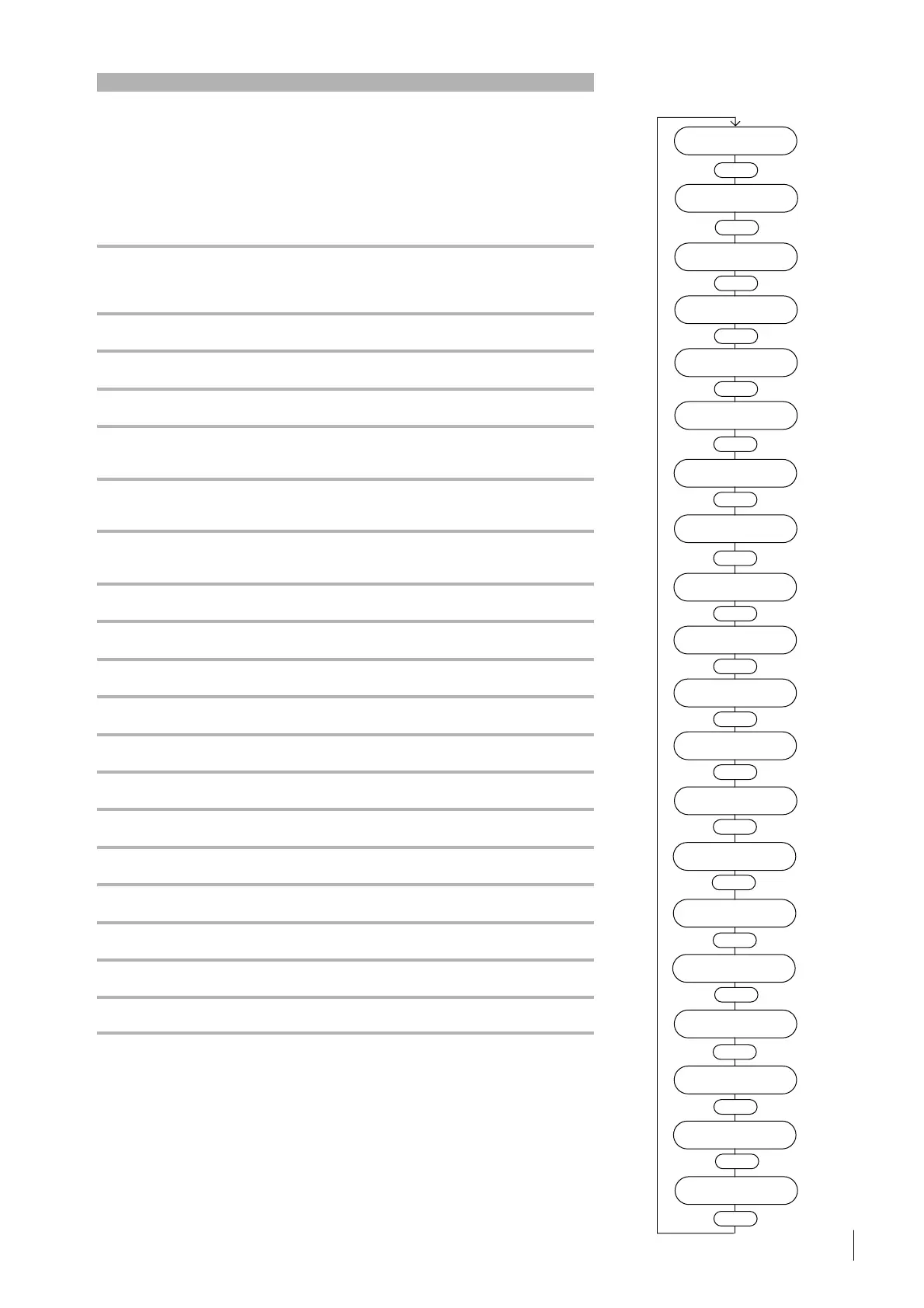

3.10.2 Menü System Info
Menu item Description Adjustable value / option Ac-
cess
min. max. de- Unit
value value fault
Real-Time Clock Real-Time Clock actual value - r
99.12.31 23:59 Format: YY.MM.DD HH:MM
Greenwich-Mean-Time (GMT)
Reference-Time for false memory
Product Name Actual product name actual value - r
MD Digital of the converter
Conv. Cat.-No. Cat.-No. of the converter actual value - r
99999999999
Conv. Serial-No. Serial-No. of the converter actual value - r
99999999999
Conv. SW-Revision of the Drive-Controller actual value - r
SR SW-Rev.
6.55.35
Conv.AMB SW-Revision. of the actual value - r
SW-Rev. Magn. Bearing-Controller
6.55.35
Conv.AMB Data-Revision of the actual value - r
Data-R. Magn. Bearing Data Setting
1.01
Conv. HW-Rev. Hardware-Revision of the Converter actual value - r
6.55.35
Conv. Op. Hours Operation hours of the Converter actual value h r
167772.16
Pump Cat.-No. Cat.-No. of the pump actual value - r
99999999999
Pump Ser.-No. Serial-No. of the pump actual value - r
99999999999
Pump Name Pump name & type actual value - r
MAG W 1500 CT
Pump Op. Hours Operation hours of the pump** actual value h r
16777 (40000) (Permitted operating hours)
Start Cycles actual value - r
1234
Standby Cycles actual value - r
1234
Operation Cycles** actual value - r
1234
PK SW-Rev. SW-Revision of the actual value - r
6.55.35 pump-memory chip (PK)
PK HW-Rev. HW-Revision actual value - r
6.55.35 of the pump-memory chip (PK)
PK Data Rev. Revision of the pump-memory chip actual value - r
6.55.35 data-settings (PK)
** For the permissible number of operating hours/operating cycles the system provides two
thresholds. Exceeding these thresholds will result in a warning message (default) or an alarm
message. The corresponding menu entry for setting up the required response can be found
in the section "Programming the frequency converter”.
Threshold for system start If before starting the system the threshold is already exceeded,
starting the system will no longer be possible.
Threshold during operation The permissible threshold during operation is higher compared
to the threshold which is permissible during system start. The
permissible number of this value is indicated through the
display (YYY).
Enter
Product Name
MD Digital
Enter
Conv. Cat.-No.
99999999999
Enter
Conv. Serial-No.
99999999999
Enter
Conv. HW-Rev.
6.55.35
Enter
Conv. Op. Hours
167772.16
Enter
Pump Cat.-No.
99999999999
Enter
Pump Ser.-No.
99999999999
Enter
Conv. SR SW-Rev.
6.55.35
Conv.AMB Data-R.
1.01
Enter
Pump Name
MAG W 1500 CT
Enter
Conv.AMB SW-Rev.
6.55.35
Enter
Enter
Pump Op. Hours
16777 (40000)
Enter
System Info
Start Cycles
1234
Enter
Standby Cycles
1234
Enter
Operation Cycles
1234
Enter
Enter
Real-Time Clock
99.12.31 23:59
PK SW-Rev.
6.55.35
Enter
PK HW-Rev.
6.55.35
Enter
PK Data Rev.
6.55.35
Enter
